What Is HDMI over Fiber Extender Loop Out KVM USB Video Audio
HDMI over Fiber Extender Loop Out KVM USB Video Audio This device transmits 1080p Uncompressed HDMI signal over a single optical fiber cable singlemode fiber up to 20 km.compatible with multmode fiber up to 500m. Resolution support [email protected] max and backward compatible. With KVM function and 3.5mm stereo audio, and local loop out. High definition image output,Lossless. Super-stability. 14 solts Rack Mountable. ODM,OEM, Custom made.
Feature:
1. This HDMI over fiber system is used to send HD 1080p HDMI signal to remote transmission through a Fiber Optic cable with SC/SC connector, with one local loop out and Stereo 3.5mm audio. Support KVM USB2.0 remote contorl by keyboard and mouse , Support video resolution up to [email protected]
2. Uncompressed HD 1080p HDMI transmission, Lossless and stable A/V signal transmission, Long working life.
3. With our HDMI over Fiber Optic extender you can get greater bandwidth, faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to electromagnetic interference.
4. The device can achieve signal distribution distances of up to 20Km(12.4miles) over a single SC-SC single-mode 9/125um, and up to 500m(0.31miles) over a SC-SC multi-mode 50/125 or 62.5/125um. Use with universal optical fiber type(S/M and M/M).
5. Plug and Play, Easy to install, no need any drive.

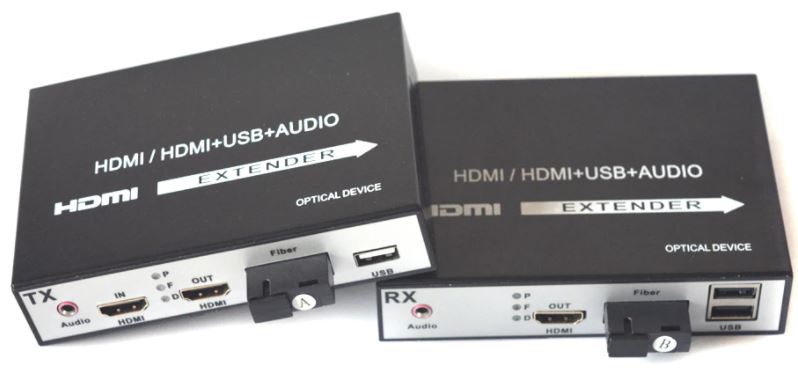

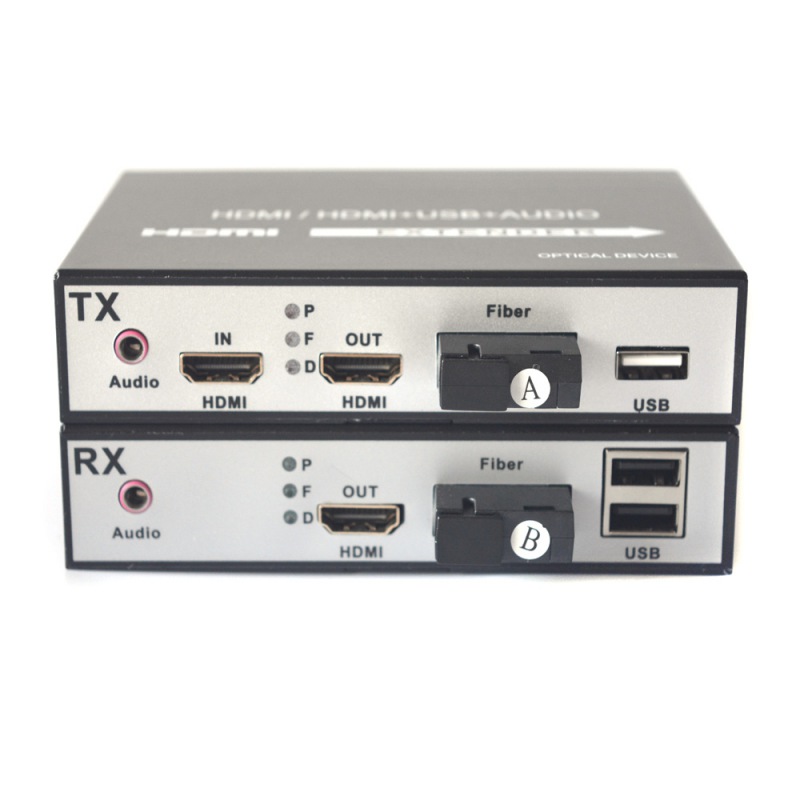

HDMI over Fiber Extender Loop Out KVM USB Video Audio B

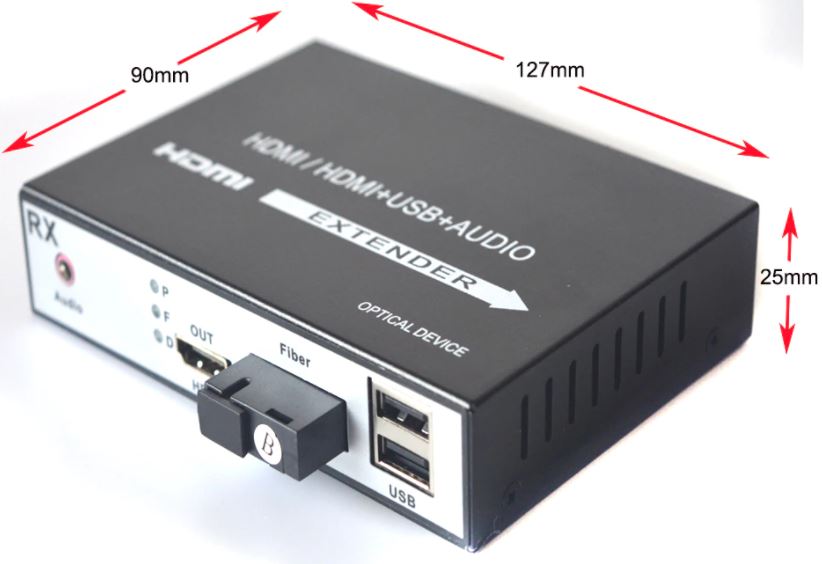

HDMI over Fiber Extender Loop Out KVM USB Video Audio Size
HDMI over Fiber Extender Loop Out KVM USB Video Audio Rack

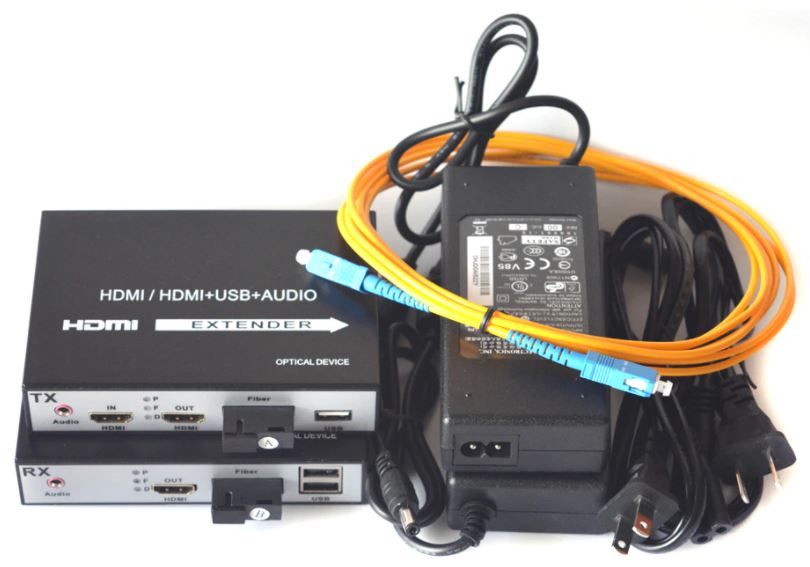

HDMI over Fiber Extender Loop Out KVM USB Video Audio Pack

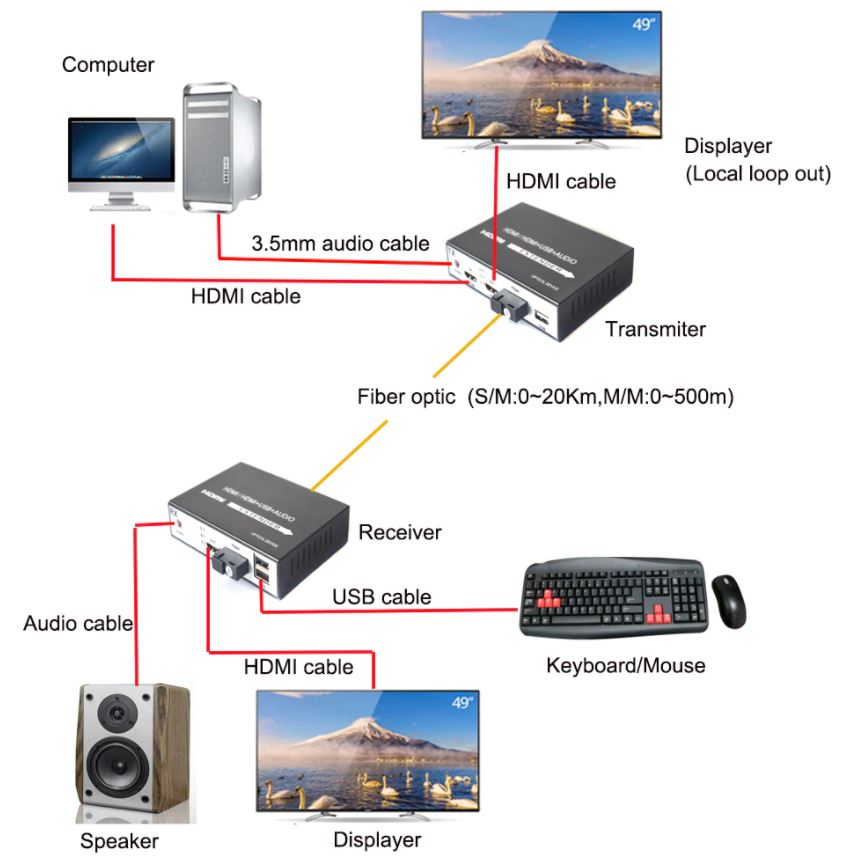

HDMI over Fiber Extender Loop Out KVM USB Video Audio DiagramOptical index:
1. Optical connector : SC
2 Suitable for universal singlemode optical fiber 9/125 and multi-mode 50/125 or 62.5/125um
2. Working distance: singlemode fiber up to 20Km(12.4miles). Multimode fiber up to 500m(0.3miles)
3. Wavelength: Single-mode 1310/1550um (9/125um), Multimode 850um (50/125um), 1310um (62.5/125um)
General Index:
1. The usual time between failures (MTBF) greater than 100,000 hours
2. Size: 127x90x25mm (LxWxH).
3. Working voltage : AC100-240V,DC5V2A, with US standard plug.
Package contents:
1x HDMI transmitter
1x HDMI receiver
1x SC/SC 3m S/M fiber patch cord
2 x power AC100-240V DC5V/2A (US/EU/UK/AU standard plug optional)
1 x User manual
