GCYFY Stranded Loose Tube Air-blown Micro Cable

What is GCYFY Stranded Loose Tube Air-blown Micro Cable

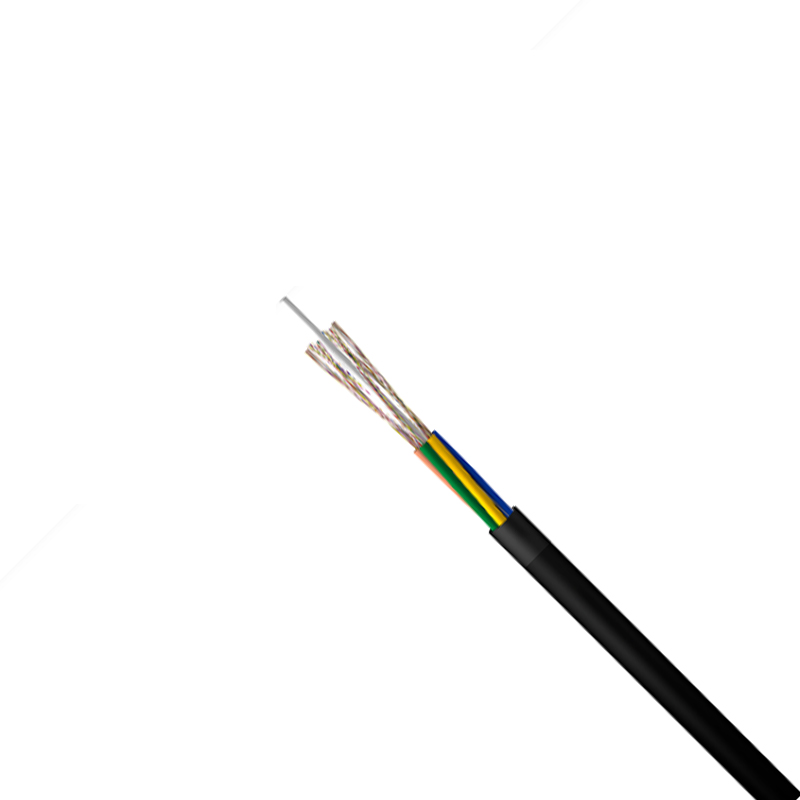

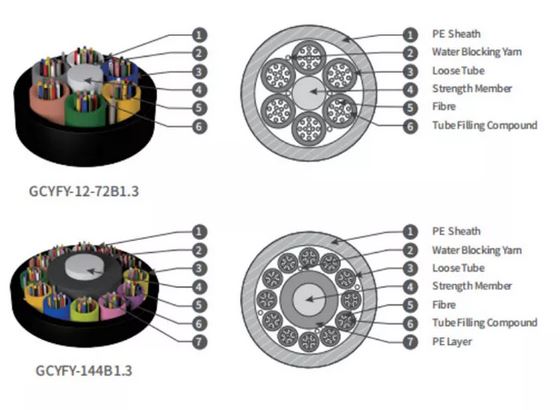

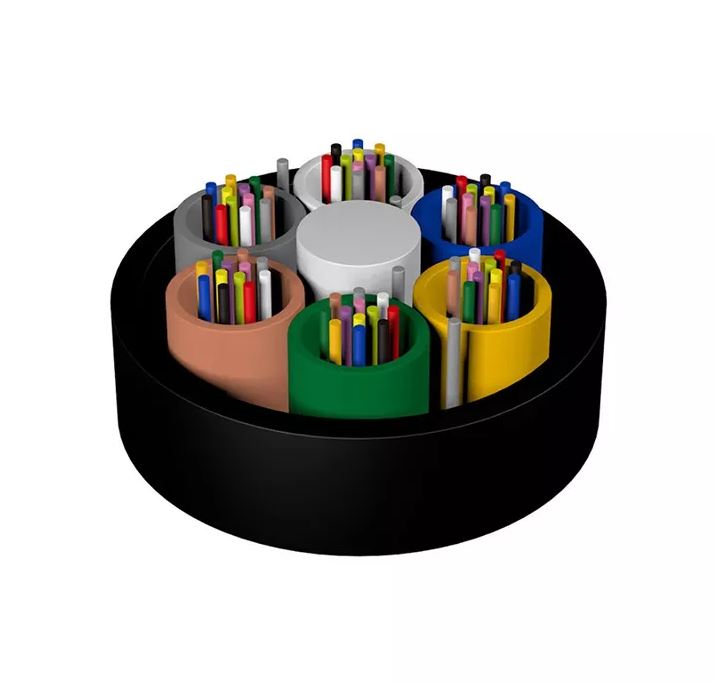

GCYFY Stranded Loose Tube Air-blown Micro Cable is Optical fibres are housed in loose tubes that are made of high-modulus plastic and filled with tube filling compound. The tubes (and fillers) are stranded around a non-metallic central strength member andsurrounded with dry water-blocking material to form a cable core. An extremely thin outer PE sheath is extruded outside the core.

Features

Small size and light weight
Tube filling compound providing key protection for fibres
High fibre density, allowing full use of duct holes
Allowing to blow by phases to reduce initial investment
High blowing speed up to 50m/min, and long blowing distance up to 1000m
Allowing to blow out and replace with new cables to keep technical superiority
Avoiding destructive excavations and no need to pay high fees for deploying permission, applicable for constructions in crowded metropolitan area networks
Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints

Technical Characteristics

Type	O.D. (mm)	Weight (Kg/km)	Tensile strength Long/short term （N）	Crush Long/short term （N/100mm）	Number of tubes/fibre count per tube
GCYFY-12B1.3	4.5	16	0.3G/1.0G	150/500	2/6
GCYFY-24B1.3	4.5	16	0.3G/1.0G	150/500	4/6
GCYFY-36B1.3	4.5	16	0.3G/1.0G	150/500	6/6
GCYFY-24B1.3	5.4	26	0.3G/1.0G	150/500	2/12
GCYFY-48B1.3	5.4	26	0.3G/1.0G	150/500	4/12
GCYFY-72B1.3	5.4	26	0.3G/1.0G	150/500	6/12
GCYFY-96B1.3	6.1	33	0.3G/1.0G	150/500	8/12
GCYFY-144B1.3	7.9	52	0.3G/1.0G	150/500	12/12
GCYFY-192B1.3	7.9	52	0.3G/1.0G	150/500	16/12
GCYFY-216B1.3	7.9	52	0.3G/1.0G	150/500	18/12
GCYFY-288B1.3	9.3	80	0.3G/1.0G	150/500	24/12
GCYFY-144B1.3	7.3	42	0.3G/1.0G	150/500	6/24
GCYFY-192B1.3	8.8	76	0.3G/1.0G	150/500	8/24
GCYFY-288B1.3	11.4	110	0.3G/1.0G	150/500	12/24
GCYFY-432B1.3	11.4	105	0.3G/1.0G	150/500	18/24
GCYFY-576B1.3	13.4	140	0.3G/1.0G	150/500	24/24

Note: G is the weight of optical cable per km.

Environmental Characteristics

Transport/storage temperature: -40℃ to +70℃

Applications

The cable can be used as the drop cable of feeder segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks.

Delivery Length

Standard length: 2,000m; other lengths are also available.
