What is GCYFXTY Uni-tube Air-blown Micro Cable

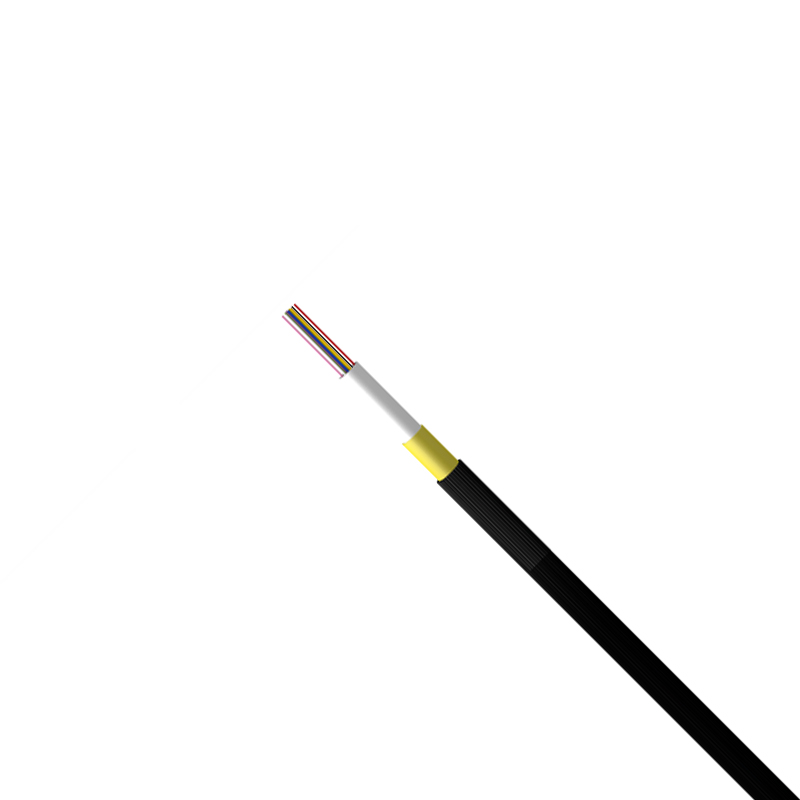

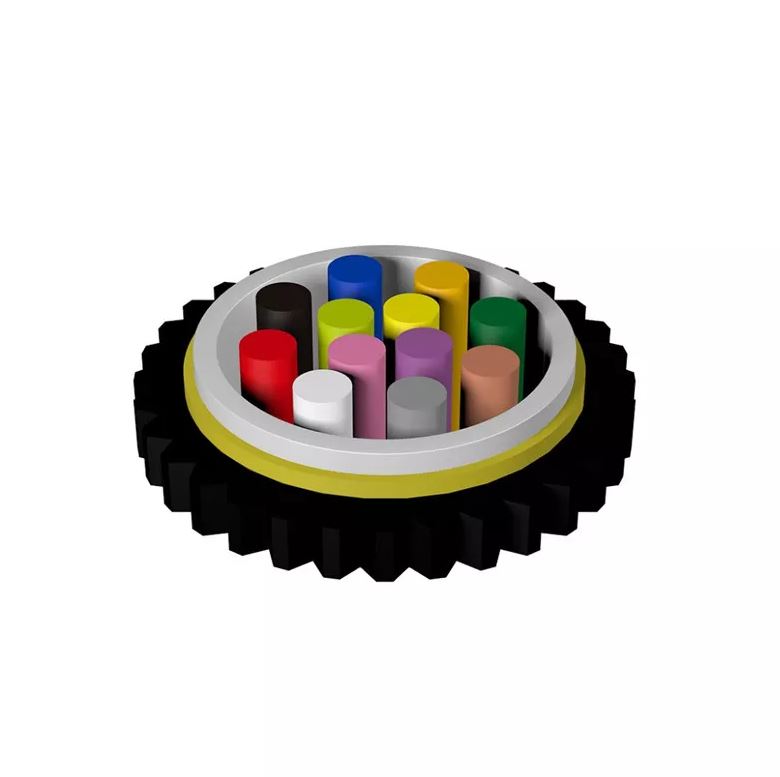

GCYFXTY Uni-tube Air-blown Micro Cable is Optical fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. Aramid yarns are placed outside the loose tube as the strength member, then a sheath with grooves is extruded. This type of cable is particularly applicable to air-blowing constructions in access networks.
Please confirm all details with customer manager before Buying
Features
Small size and light weight
Tube filling compound providing key protection for fibers
Unique design of sheath with grooves ensuring good air blowing performance
Allowing to blow by phases to reduce initial investment
High blowing speed up to 50m/min, and long blowing distance up to 1000m
Allowing to blow out and replace with new cables to keep technical superiority
Allowing to cut micro ducts anywhere anytime for branch without influences on other cables, saving manholes, hand holes and cable joints
- Technical Characteristics
Type
O.D.
(mm)
Weight
(Kg/km)
Tensile strength
Long/short term
（N）
Crush
Long/short term
（N/100mm）
GCYFXTY-2B1.3 2.3 4
0.15G/0.5G 150/450 GCYFXTY -4B1.3 2.3 4
0.15G/0.5G 150/450 GCYFXTY -6B1.3 2.3 4
0.15G/0.5G 150/450 GCYFXTY- 8B1.3 2.3 4
0.15G/0.5G 150/450 GCYFXTY- 12B1.3 2.3 4
0.15G/0.5G 150/450 GCYFXTY- 24B1.3 2.7 6.5
0.15G/0.5G 150/450 Note: G is the weight of optical cable per km.
- Environmental Characteristics
Transport/storage temperature: -20℃ to +70℃
- Applications
The cable can be used as the drop cable of distribution segments in FTTH networks and can be laid by air blowing to connect the branch point with the access point for subscribers. The cable is also applicable in backbone networks , metropolitan area networks and access networks
- Delivery Length
Standard length: 2,000m; other lengths are also available
GCYFXTY Uni-tube Air-blown Micro Cable
GCYFXTY Uni-tube Air-blown Micro CablePlease be free to buy our GCYFXTY Uni-tube Air-blown Micro Cable products with competitive price. The customized service and the quotation consultation are available.
sfiberoptic.com is one of the leading China manufacturers and suppliers providing you with GCYFXTY Uni-tube Air-blown Micro Cable. Our factory has applied the most advanced equipment and technology to better serve you.
