What is Enhanced Performance Fibre Units (EPFU) Air-blown Cable

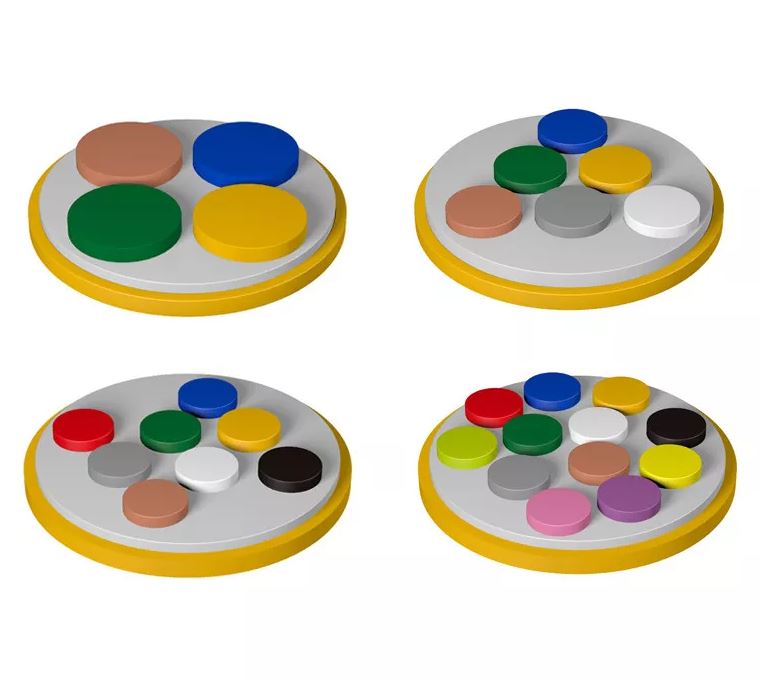

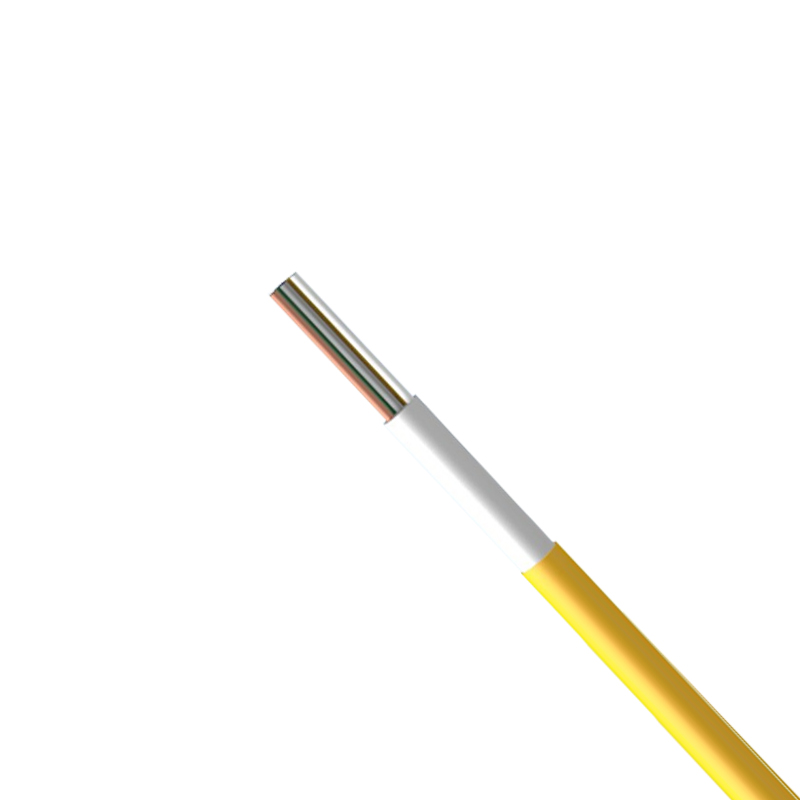

Enhanced Performance Fiber Units (EPFU) Air-blown Cable is Optical fibres and filler elements are arranged in curing photosensitive resins to form a cable core. A low friction sheath is extruded outside the core.
Please confirm all details with customer manager before Buying
Features
Using G.657.A2 bending insensitive fibers with a small bending radius, applicable to indoor laying
Small size and light weight
Unique design of sheath ensuring good air blowing performance
- Technical Characteristics
Type
Fibre count
O.D. (mm)
Weight (Kg/km)
Tensile strength
Long/short term （N）
Crush resistance short term （N/100mm） EPFU-02B6a2
2
1.1
1.1
0.15G/0.5G
100
EPFU-04B6a2
4
1.1
1.1
0.15G/0.5G
100
EPFU-06B6a2
6
1.3
1.3
0.15G/0.5G
100
EPFU-08B6a2
8
1.5
1.8
0.15G/0.5G
100
EPFU-12B6a2
12
1.6
2.2
0.15G/0.5G
100
Note: G is the weight of optical cable per km
- Blowing Characteristics
Fibre count
2
4
6
8
12
Duct diameter
5.0/3.5 mm
5.0/3.5 mm
5.0/3.5 mm
5.0/3.5 mm
5.0/3.5 mm
Blowing pressure
8bar / 10bar
8bar / 10bar
8bar / 10bar
8bar / 10bar
8bar / 10bar
Blowing distance
500m/1000 m
500m/1000 m
500m/1000 m
500m/1000 m
500m/800 m
Blowing time
15min/30min
15min/30min
15min/30min
15min/30min
15min/30min
- Environmental Characteristics
Transport/storage temperature: -40℃ to +70℃
- Applications
The cable can be used as the indoor drop cable in FTTH networks and can be laid by air blowing with a handheld device, to connect the family multimedia information boxes with the access point for subscribers
- Delivery Length
Standard length: 2,000m; other lengths are also available
Enhanced Performance Fiber Units (EPFU)
Please be free to buy our Enhanced Performance Fiber Units (EPFU) products with competitive price. The customized service and the quotation consultation are available.
sfiberoptic.com is one of the leading China manufacturers and suppliers providing you with Enhanced Performance Fiber Units (EPFU). Our factory has applied the most advanced equipment and technology to better serve you.
