HDMI over Fiber Extender

What Is HDMI over Fiber Extender

HDMI over Fiber Extender up 20Km(12.4miles) Uncompressed Transmitter and Receiver provides long haul transmission of HDMI, audio signals over a single fiber. Engineered for reliability and exceptional high resolution image performance, it uses all-digital technology to deliver perfect pixel-for-pixel transmission of HDMI computer-video images.

Description of HDMI over Fiber Extender:

Max Transmission Distance: 12.4miles (20Km).40km/60km/80km/100km is optional.
Optical connector: SC.
Video Resolutions: up to 1920×[email protected]
HDMI Compliance: HDMI 1.4.
Suitable fiber cable: universal singlemode and multimode fiber. .
Power supply :AC100-240V,DC5V2A

Feature:

1. Extends your HD 1080P HDMI Signal via Optical Cable for a long distance, used for video surveillance system control,Control your house’s camera system on a television.

2. 1080P 60Hz HDMI Video Extend Used Over 12.4mile(20km) Singlemode fiber and over 0.31mile(500meters) mutlimode fiber. Optical interface: SC.

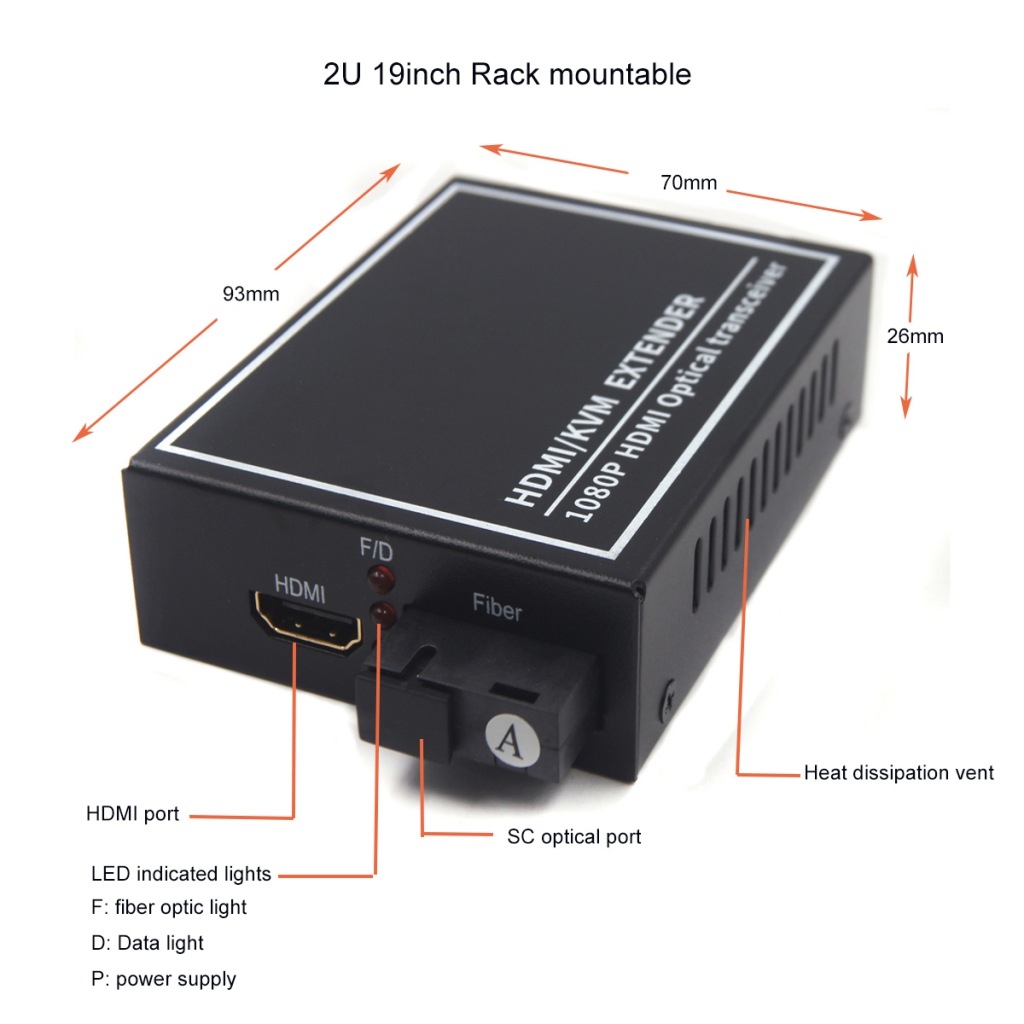

3. 2U 19inch Rack mountable. Compact design,Good heat dissipation.

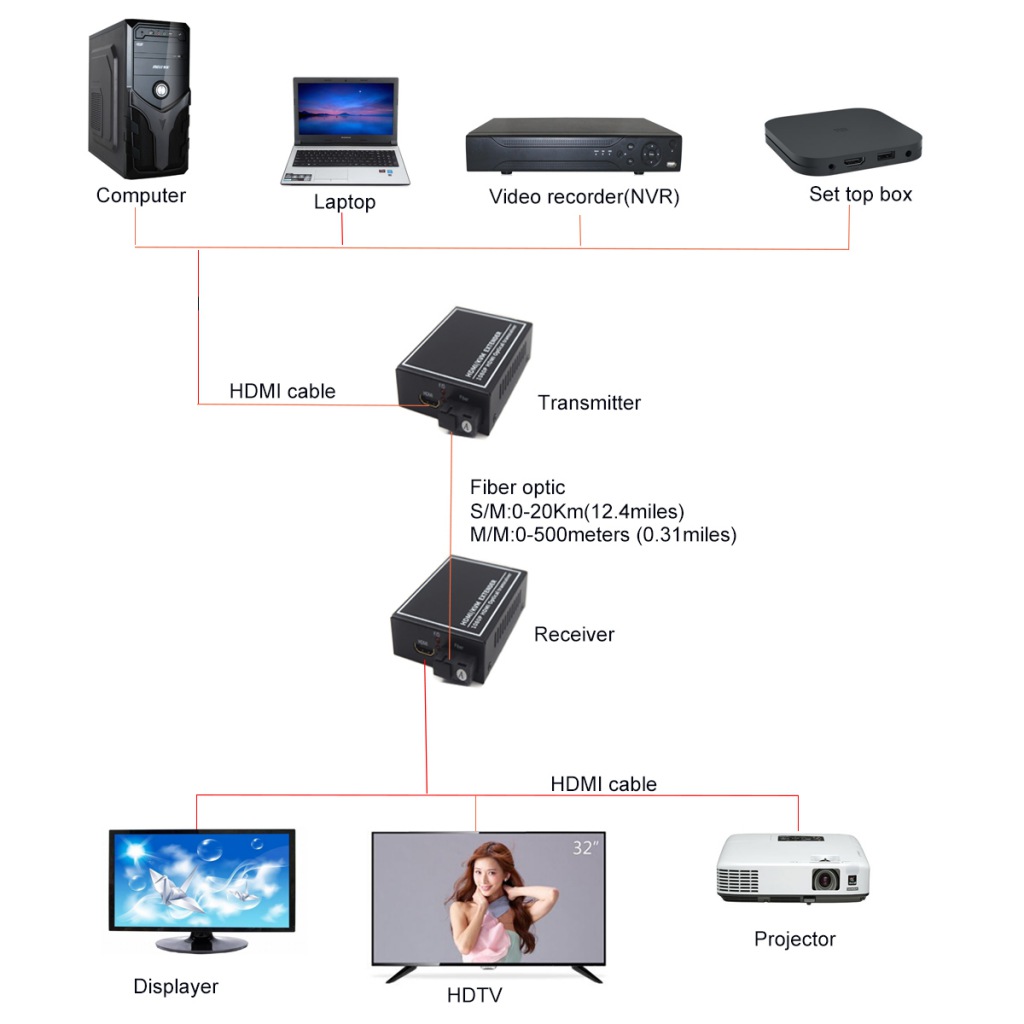

4. Easy to install and Set Up, Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, used fiber optic to connect the transmitter to Receiver, then connect your HD TV from a long distance place to the Receiver.

Optical index :

1.Optical connector : SC.
2.Suitable for singlemode fiber 9/125 and multi-mode 50/125 or 62.5/125um .
2. Transmission distance: single-mode fiber 0-20Km(12.4miles). Multimode fiber 0-500Meters(0.31miles).
3. Wavelength: Single-mode 1310/1550um (9/125um), Multimode 850um (50/125um), 1310um (62.5/125um).

General Index :

1. The usual time between failures (MTBF) greater than 100,000 hours.
2. Outer box size: 93x70x26mm (LxWxH).
3. Working voltage : AC100-240V,DC5V2A .

Package contents HDMI over Fiber Extender :

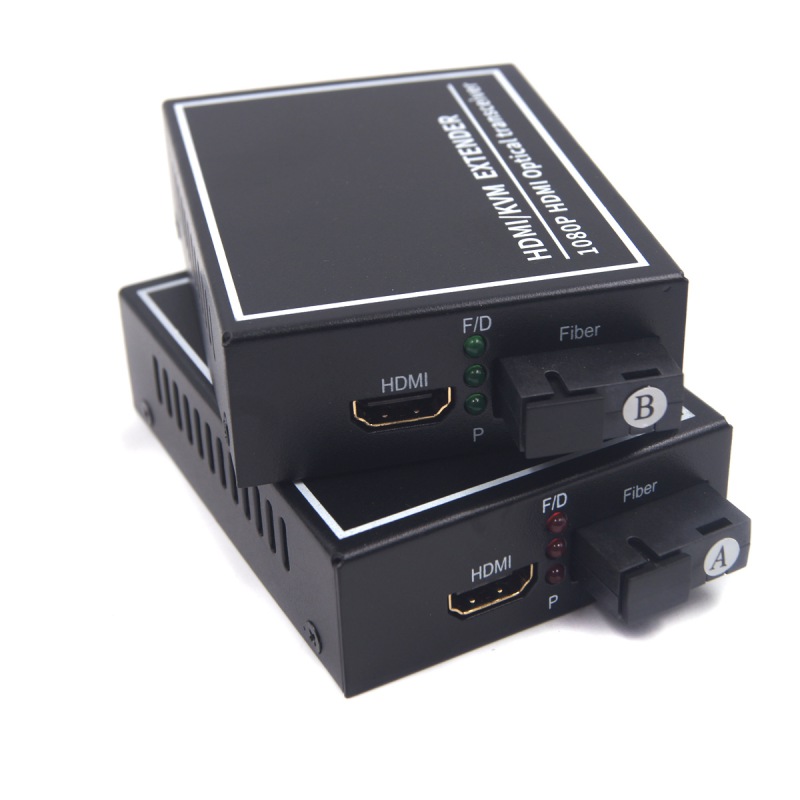

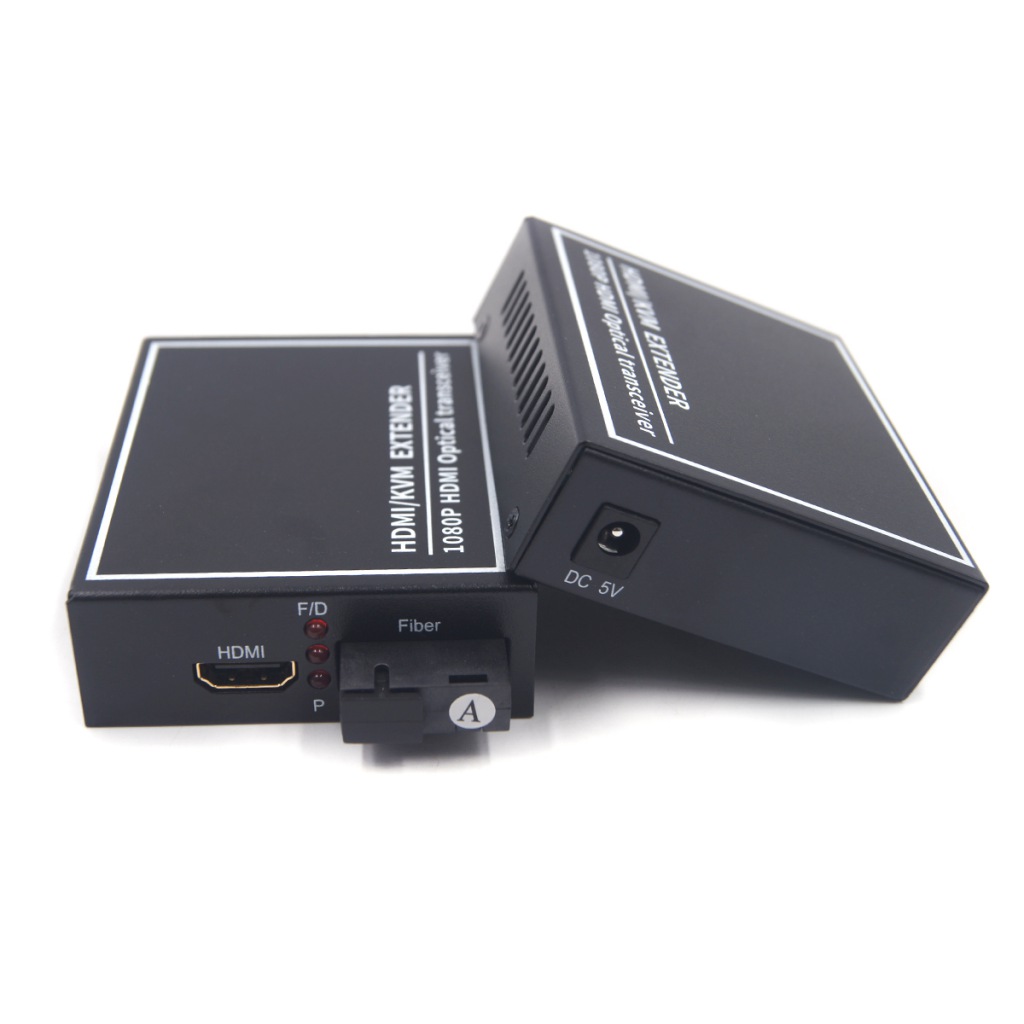

1x HDMI transmitter
1x HDMI receiver
2 x power AC100-240V DC5V/2A (US/UK/EU/AU standard plug is optional)
1 x User manual

Package contents:

1x HDMI transmitter
1x HDMI receiver
2 x power AC100-240V DC5V/2A (US/UK/EU/AU standard plug is optional)
1 x User manual

Question:
Are these wall mountable
Answer:
The units do not have an opening for mounting. However they are very light weight so a ‘command’ strip would hold them in place.

Question:
do these work with 1080P at 144Hz
Answer:
No, it supports resolution [email protected] max.

Question:
What is the transmission delay caused by the coding/decoding of the hdmi signal to/from fibre optic
Answer:
When connect to fiber optic ,the transmission have couples of second’s delay because of signal recognition. after video out, normally no delay viewing by visible .
Hi, I used the devices to remotely operate my 4K HD CCTV system. I have set it up and tried it using a 50m fibre, and there appears to be very little latency. I get both great video and good back control with the keyboard / mouse combination I used. I have yet to put it fully through its paces but from what I have seen so far I would recommend them. see less

Question:
Does this transmit and decode the audio signal
Answer:
The unit has audio in and out jacks for audio. The audio is also transported over HDMI with these units

Question:
Do these work at 60 hz
Answer:
Hi, yes, it works at 60Hz. Support 1920*[email protected] and 1920*[email protected]
