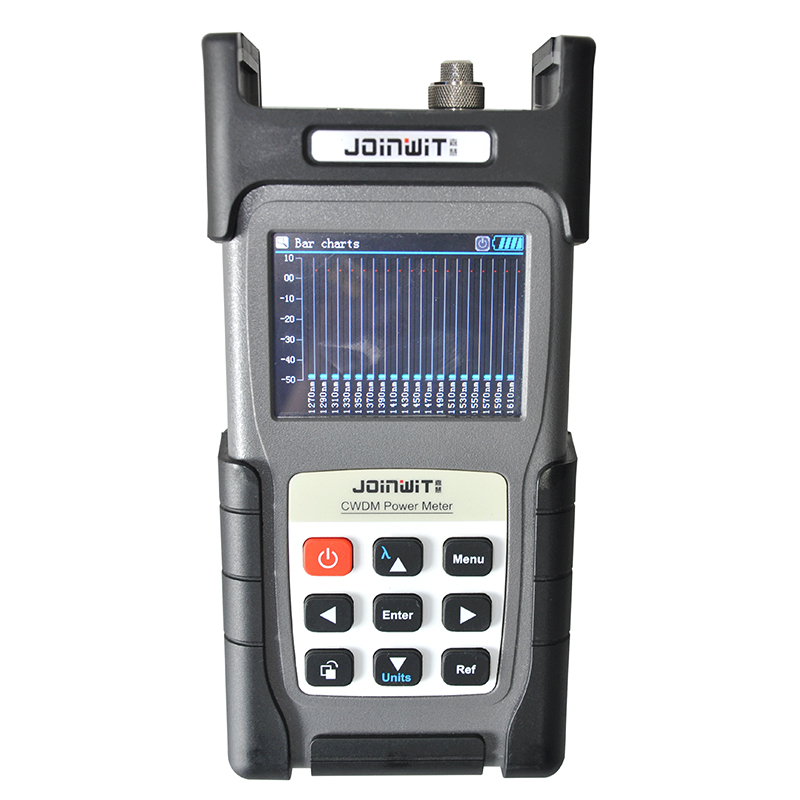

JW3226A CWDM Optical Power Meter
  • JW3226A CWDM Optical Power Meter
  • JW3226A CWDM Optical Power Meter

JW3226A CWDM Optical Power Meter


( Order Today, Ship before 09/30/2025 )
  • Description
  • Reviews
  • FAQs

What Is JW3226A CWDM Optical Power Meter price and specification



Features

  • Simultaneously test and show 18 wavelengths
  • Friendly interface and easy operation
  • Save and upload test results via USB port
  • 1000 records
  • Columnar graphics or list mode to show test data
  • Color TFT-LCD display, high resolution 320*240
  • Built-in clock and can edit test fiber number
  • Quick start operation, requiring no warm-up time
  • Light weight

Specifications


Model


JW3226A CWDM Optical Power Meter


Wavelength Range


1270 - 1610
nm


Number of Channels


18


Wavelength resolution


20nm


Measuring Wavelength (nm)


1270/1290/1310/1330/1350/1370/1390/1410/1430
1450/
1470/1490/1510/1530/1550/1570/1590/1610


Dynamic range


+10 to -40dBm


Resolution


0.01dB

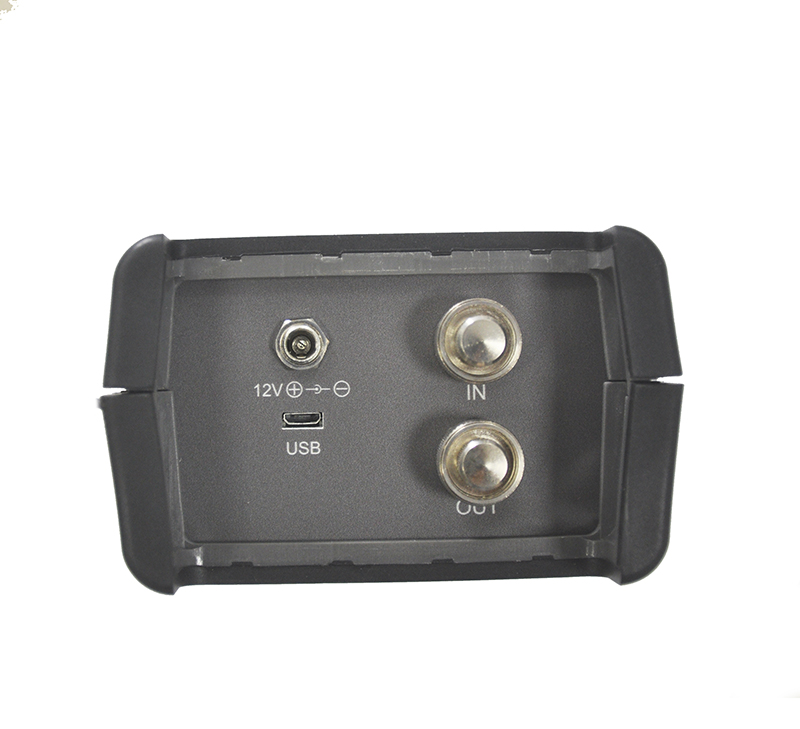

Optical interface


FC/PCF(FC, LC,
ST available)


Operating Temperature


-10 to +60℃


Power supply


Rechargeable
Battery/AC power adapter


Time of Operating


10h


Dimension


40.5*21*25cm


Weight


2.6kg
