What Is HDMI fiber optic Extenders 1080p KVM USB support
This HDMI extender transmit HDMI signal over a single SC/SC optical fiber cable up to 20 km.compatible with multimode fiber 0-500m. the highest resolution supported is [email protected] with KVM function. HDMI signal transmission uncompressed, High definition image output,Lossless. Super-stability. 14 solts Rack Mountable. Custom made Available.
This HDMI extender transmit HDMI signal over a single optical fiber cable up to 20 km and compatible with mutlimode fiber optic up to 500meters. the highest resolution supported is [email protected], With kVM function ,use mouse and keyboard remote control .

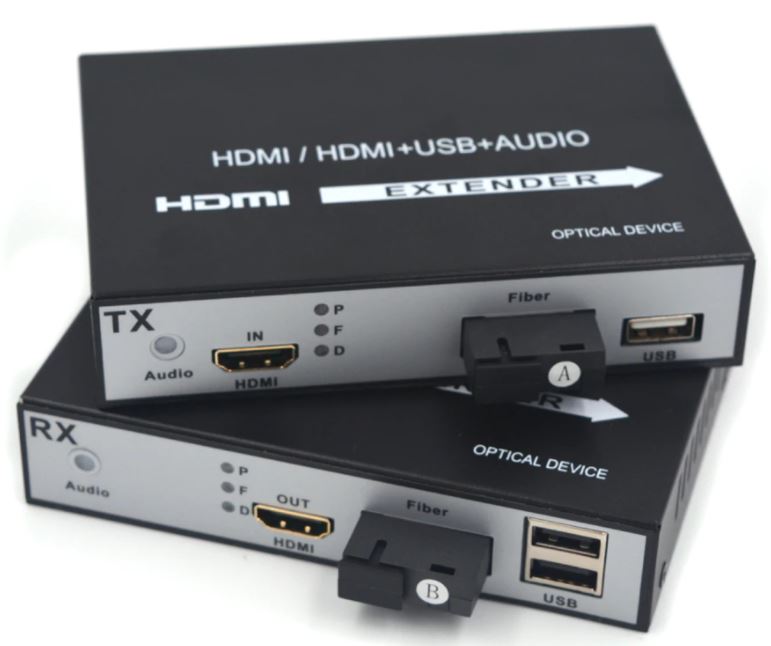

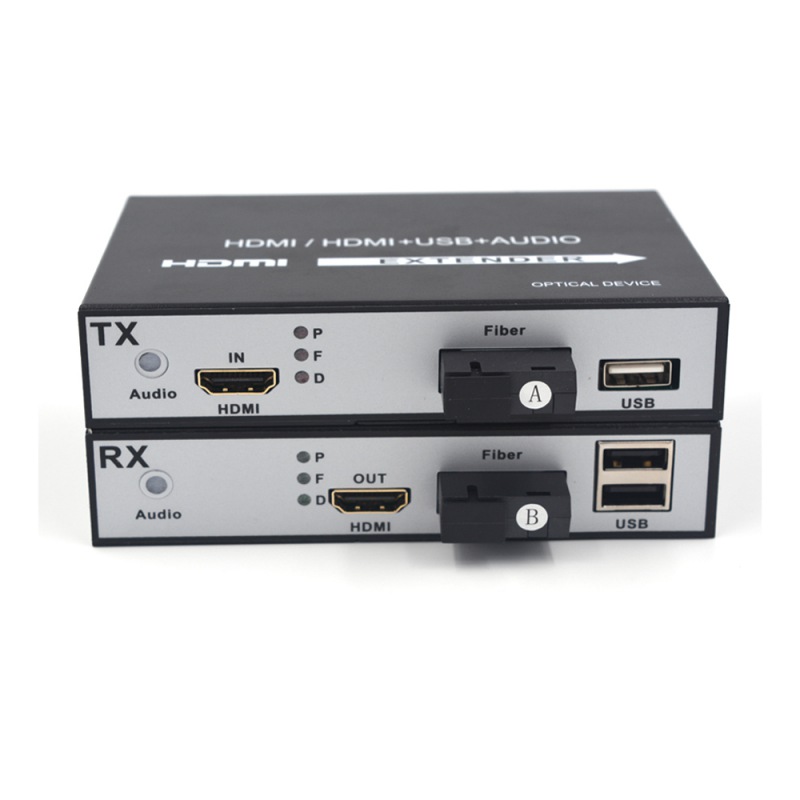

HDMI fiber optic Extenders 1080p KVM USB Box

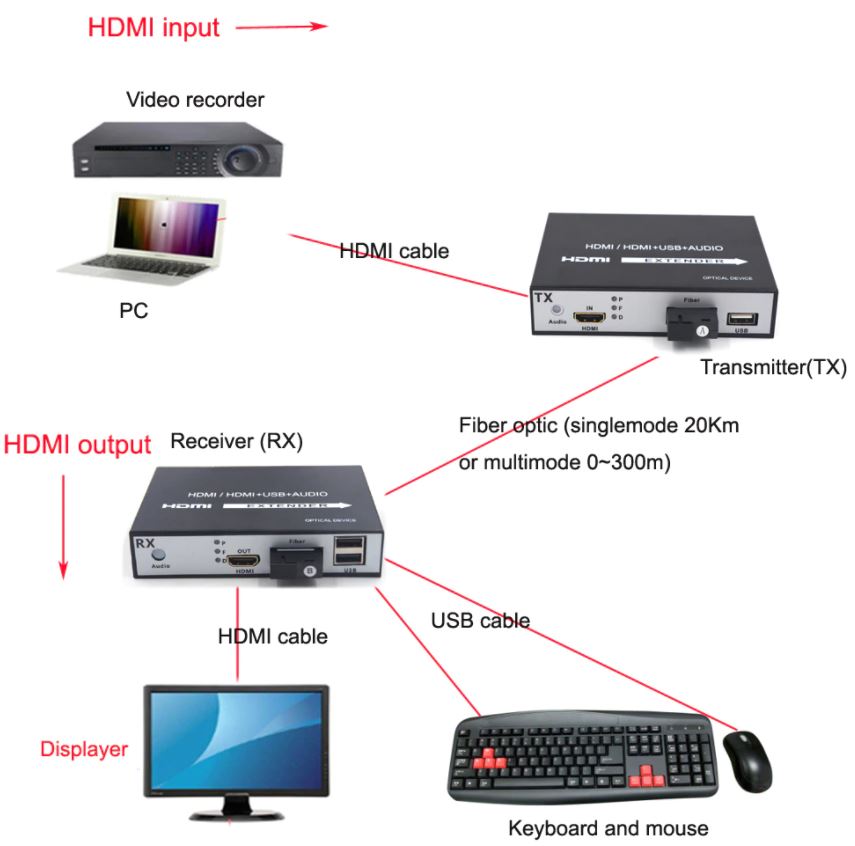

HDMI fiber optic Extenders 1080p KVM USB Diagram

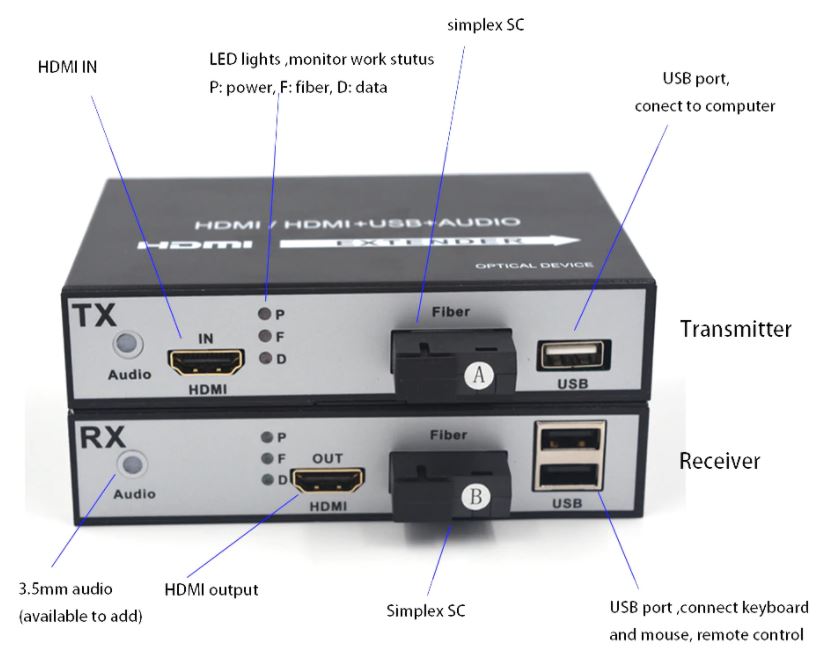

HDMI fiber optic Extenders 1080p KVM USB Ports

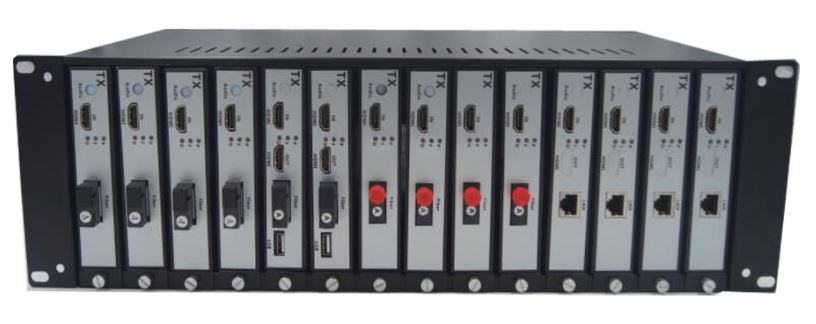

HDMI fiber optic Extenders 1080p KVM USB rack mount
HDMI fiber optic Extenders 1080p KVM USB BFeatures:
1. Single mode fiber optic transmission (0-20Km), compatible with multimode (0-500m)
2. No need extra installation driver
3. Transmit 1080p signal up to 20KM
4. Support video resolution up to 1920*[email protected]
5. Avoid the electromagnetic interference in environment for long distance transmission
6. Low signal loss, wide frequency band and strong anti-interference
7. Simple to install, plug and play
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 10.2Gbps | |
Resolution range | Up to [email protected] | |
Connector | Female HDMI | |
Impedance | 100Ω | |
Optical fiber | Interface | SC connector (FC optional) |
Fiber type | Single Mode | |
Wavelength | 1310nm, 1510nm (S/M) | |
Transmit power | ≥-9.5dBm | |
Transmission distance | Singlemode fiber: 0-20km, compatiable for multimode fiber 0-500m | |
Other | Power supply | The power adapter: DC 5V/2A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5- +70°c | |
Humidity | Operating: 5% - 90% | |
Dimension | 125*90*25mm (LxWxH) | |
The warranty | 2 years free warranty | |
Package contents:
1. 1x HDMI transmitter
2. 1x HDMI receiver
3. 1x SC/SC 3meters singlemode fiber patch cord
4. 2 x power DC5V/2A(default ship US, EU/UK/AU is available)
5. 1 x User manual
