What Is 3G SDI Over Fiber Optic Converter
The item is a 3G/HD-SDI over single single-mode or multimode fiber transmitter and receiver extender kit. Long transmission distance,Single mode 0-20Km,multimode 0-500m. Custom made.
Function:
1 x 3G-SDI with loop out
2 x Bi-directional RCA Audio, two in and two out
1 x 3.5mm Audio in and out
1 x 10/100Mbps Ethernet
1 x Bidirectional RS-422 data (4 wires).
Custom made : RS-485/232 is optional, other special request is available to customize.

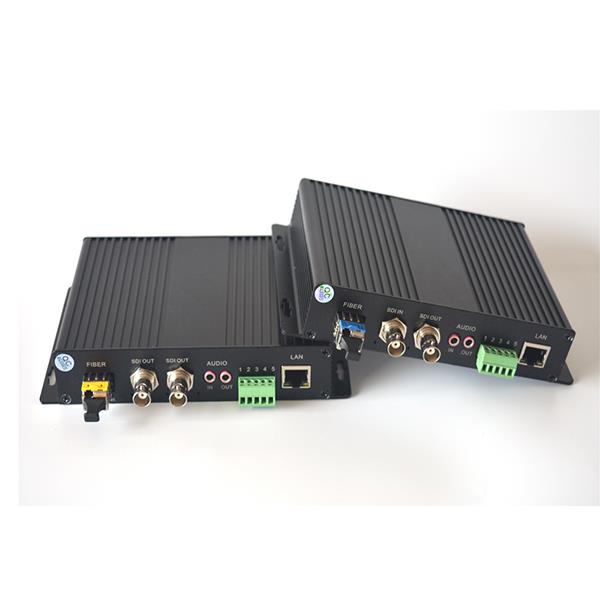

3G HD-SDI Over Fiber Optic Converter Extender

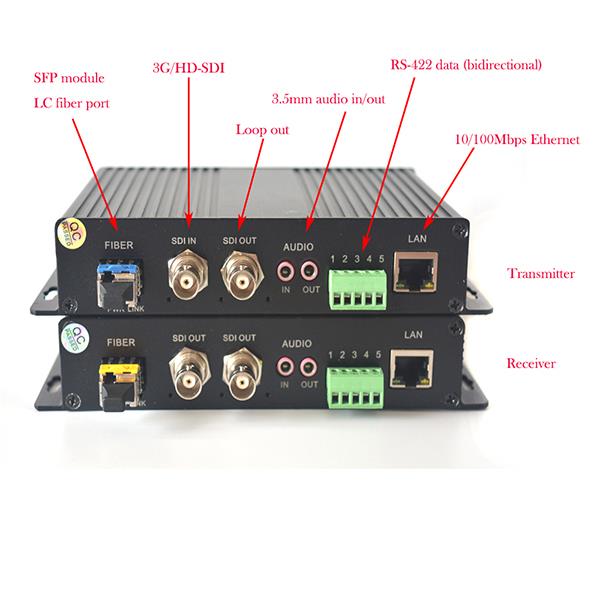

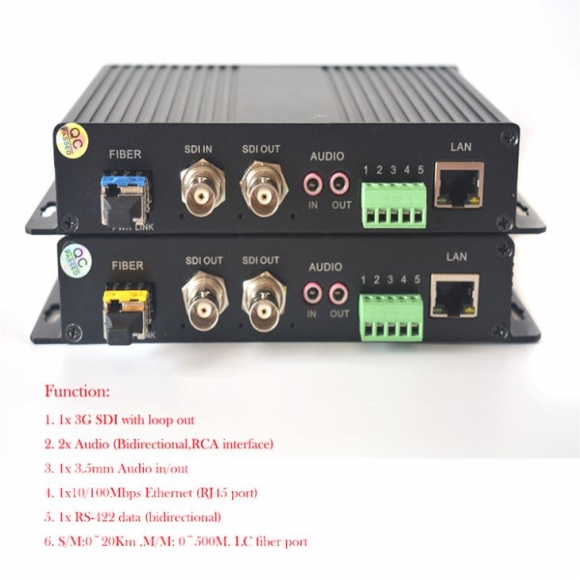

3G HD-SDI Over Fiber Optic Converter Extender Ports

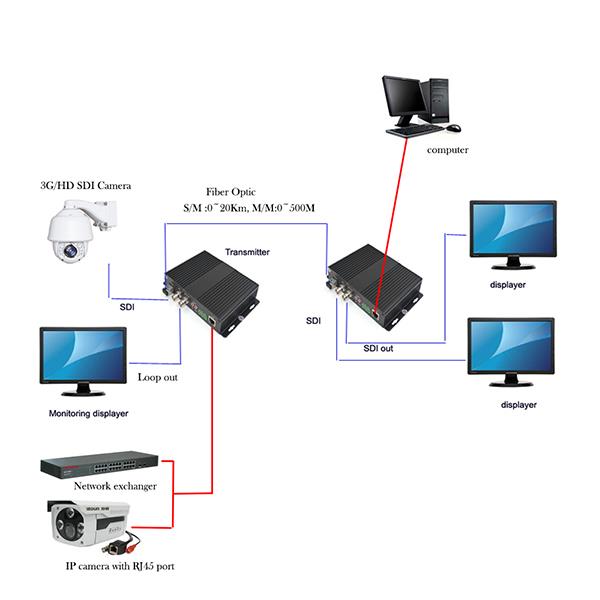

3G HD-SDI Over Fiber Optic Converter Extender DiagramFeatures:
1.Support 3G-SDI (2.97Gbps) and HD-SDI (1.485Gbps) video format .
2.Support [email protected]/30Hz backward, [email protected] /59.94Hz and backward
3.The broadcast signal quality, fully compliant SMPT standard;
4.The maximum cable length: HD 200M; 3G 140M;
5.Suitable fiber optic: universal singlemode and multimode
6.Working distance: Single mode 0-20Km,multimode 0-500m
7.Voltage:AC100V-240V,DC5V/2A(US/EU/UK/AU plug optional)
8.Package: carton box
Package Include:
1 x 3G-SDI Transmitter
1 x 3G-SDI Receiver
2 x SFP optical module (single LC port)
2 x Power adaptor (US/EU/UK/AU available )
1x Manual
