Basic Information
This FTTH Faceplate Fiber Socket Panel SC LC FC is used for FTTH splicing and termination, between indoor SC LC FC fiber optic cable and pigtails. used for wall mounted or desktop applications. It is bigger than normal fiber optic socket panel, which makes the space larger for operation.
Specification
| Suitable Adapters | SC LC |
| Material | With fire-proof ABS plastic |
| Weight | 60g |
| Available Cable | Indoor Drop Cable |
| Outlet | 2 Port |
| Installation way | Wall Mount |
| Dimensions | 120mm*86mm*22mm |
| Applications | Wall Mount Distribution Use |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 1 pcs SC or 2 pcs LC connectors |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Indoor Cable |
| Location | Wall Mount Usually |
| Location of Use | FTTH FTTB |
| Lock Compatible | Button |
| Number of Terminal Drops | 1 or 2 Cables |
| Number of Trays | No |
| Product Type | Wall Mount Termination Box |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 1 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 100pcs |
Image Details

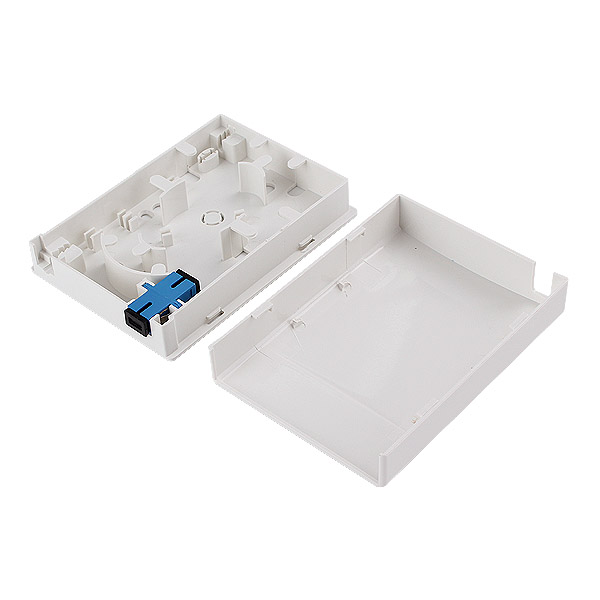

SC LC Fiber Socket Panel for indoor use Inside

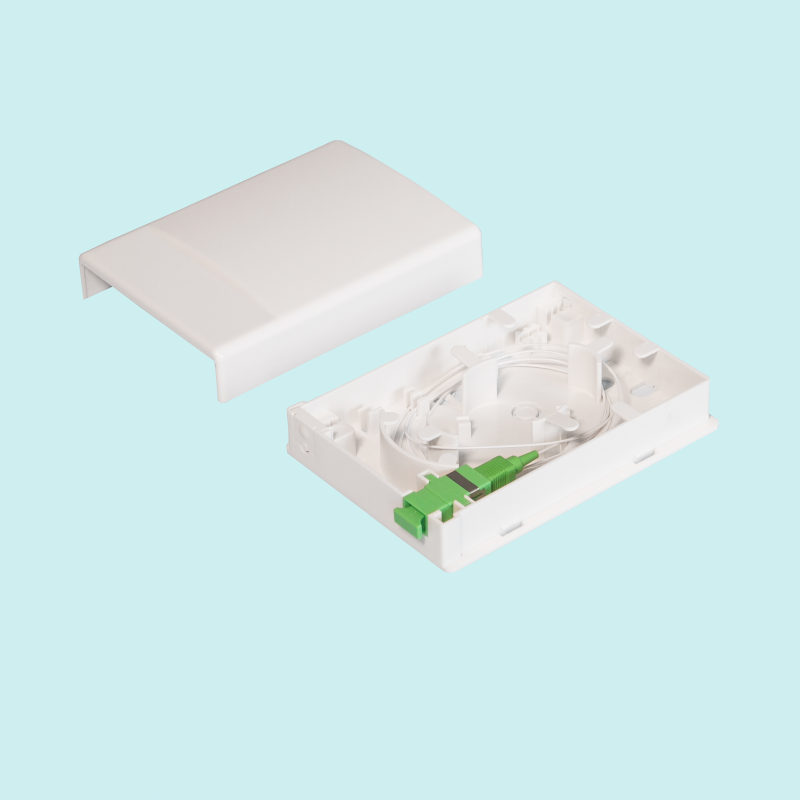

SC LC Fiber Socket Panel for indoor use with SC/APC pigtail
FAQs
What items are included in this SC LC FC Fiber Wall Outlet Faceplate Socket Panel SP01C
A main parts (cover and base), 2 screws and 2 pcs heat shrinkable sleeves.
How to open this Fiber Wall Outlet Faceplate Socket Panel SP01C
It is a push and open type termination box
How to print LOGO on this panel
screen mesh printing is suitable to this box,1 or two colors only
