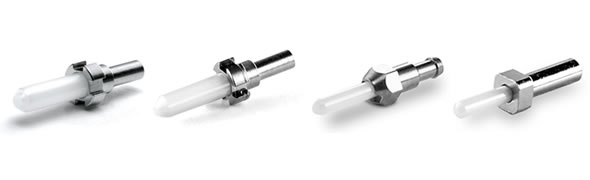

Zirconia Ferrules Fiber Optic Connectors

Ferrules are the key sub component within the fiber optic connector, used to house, protect and align mating fibers for optimum transmission of the optical signal.

Zirconia ferrules offer the highest performance and durability of all ferrule material types. Precision manufactured according to strict quality and performance standards, zirconia ferrules allow for low insertion loss, low back reflection and superior durability after repeated connector matings.

The Pre-domed UPC type enables quick and easy termination, without sacrificing performance. Angled Physical Contact (APC) type is also available in either cone or step endface styles for the highest performance requirements.

generally teated as the core arts of the connectors. And zirconia ferules are recognized to have the best durability  and reliability among various kinds of material, Our high quality ferrules are manufactured under precise and strict quality  control process. The optical and mechanical performance is good and beynd your expectation. Stndard gade is available to meet your applications.

A ferrule (from Latin viriola, meaning little bracelet) is a ring or cap attached to an object to protect against damage, splitting, or wear. In fiber optic, a ferrule is a component (usually a rigid tube) used to align and protect the stripped end of a fiber.Ferrules are used for applications including optical connectors, attenuators and fiber stubs.Most fiber optic connectors comprise a ferrule (or in the case of multielement devices, a number of ferrules) which is responsible for the control of fiber alignment and a rear body which is responsible for the attachment of the connector to the cable. The rear body can be complex in construction and has additional responsibilities for the connection of the connector to the adaptor. The mechanics of the ferrules and rear bodies vary from connector to connector and will be discussed for each connector type.The ferrule is usually made of a ceramic material, because of its hardness and thermal stability, although polymer ferrules are now accepted as being nearly as good. The particular ceramic is known as zirconia (zirconium dioxide ZrO₂) chosen because its hardness and thermal coefficient of expansion is very similar to glass. It also polishes well. To be more specific the material is usually tetragonal zirconia polycrystal, which is zirconia and yttria (yttrium oxide Y₂O₃).

A ferrule is used together with the connector that connects the fiber cable either to another cable or to a transmitter or receiver. The ferrule keeps the fibers accurately aligned within the connector. Ferrules can be made of glass, plastic, metal, or ceramic material. Ceramic is currently considered the best material for a number of reasons. For example, ceramic bonds well to glass and its expansion coefficient is close to that of the glass fibers, making it environmentally stable.

Applications

• High performance fiber optic connectors used in environments requiring durability after repeated matings, low insertion loss and low back reflection
• Fiber stub
• SC, FC, ST, MU, D4, MU, LC , DIN and other fiber optic connectors
• Single mode and multimode

Features

• High performance & durability
• Low insertion loss*
• Low back reflection*
• APC type with various end face configurations, as well as pre-angled end face for quick polishing and ultra-low back-reflection
• Standard and custom configuration
