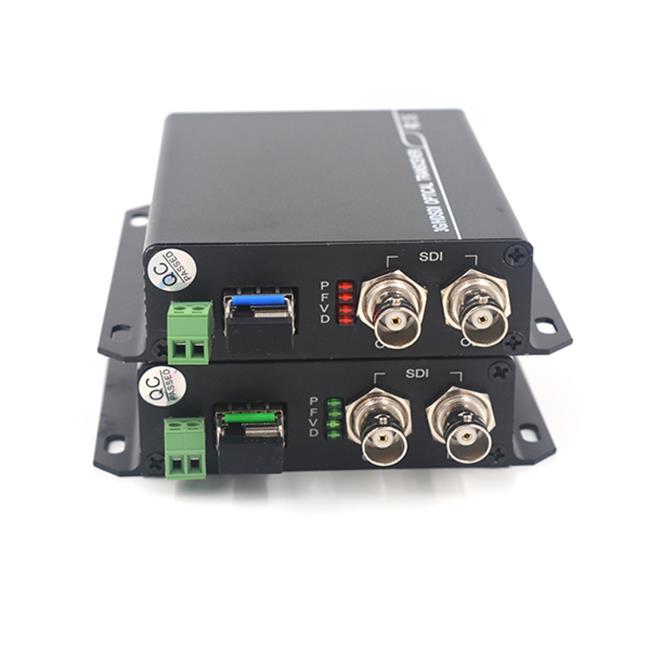

3G-HD SDI RS485 Over Fiber Optic Converters Extender

What Is 3G SDI RS485 Fiber Optic Converters

3G-HD SDI RS485 Over Fiber Optic Converters Extender One channel HD-SDI and RS-485 Data over one Fiber Optic Media Converters ,include Transmitter and Receiver ,working with SDI Cameras.working distance 10Km (20Km/40Km/60Km/80Km optional).RS485/422/232 data optional. SFP simplex LC fiber interface(FC/ST/SC/LC optical interface optional). 3G-SDI optional. Custom made available.

Overview:

3G-HD SDI RS485 Over Fiber Optic Converters Extender The item is one 3G/HD-SDI over single-mode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of one 3G/HD-SDI signal with embedded audio signal and has reverse RS-485 data channel for camera control also loop-out connectors on the transmitter & receiver for monitoring. The system support signals accord with standards of SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305 and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability. In addition, our innovative video, audio and data media transport system was designed to maintain lossless fiber extension between input and output signals. The plug-and-play design makes the installation convenient and easy, the LED indicator design helps the user to know the working status easily, and there is no need for on-site adjustment. Signal Bit Rate from 270 Mbps to 1.5Gbps and to 2.97Gbps. Fiber optical transmission excludes electromagnetic noise factor, it makes this product a perfect solution for efficient, reliable and secured 3G/HD-SDI signal transport.

Optional version: HD-SDI and 3G-SDI,

1. HD-SDI version: Support HD-SDI camera, Video resolution up to [email protected] and [email protected] backward compatibility.

2. 3G-SDI version: Support 3G-SDI and HD-SDI camera, Video resolution up to [email protected] and [email protected],backward compatibility.

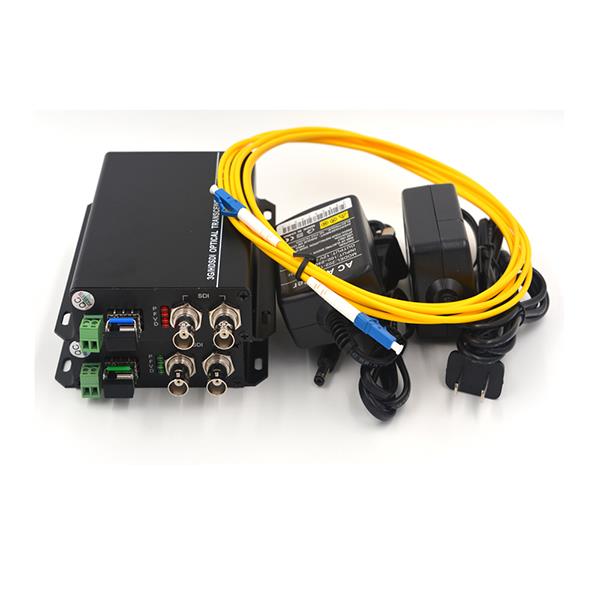

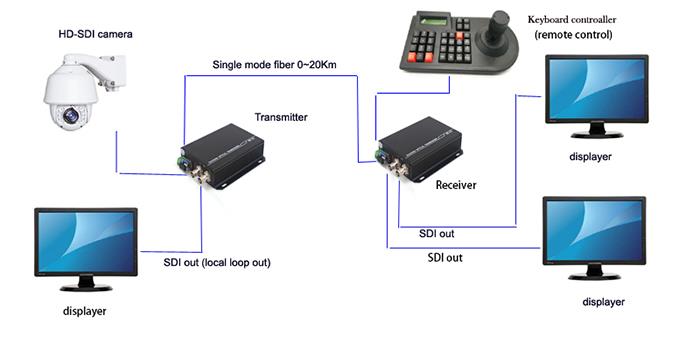

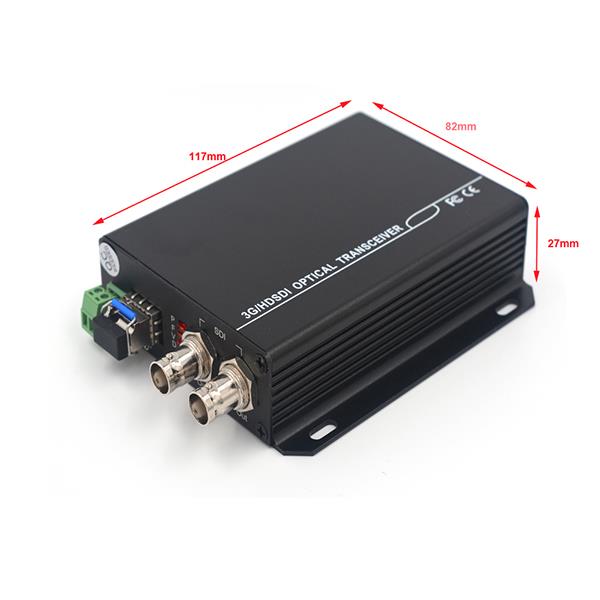

3G-HD SDI RS485 Over Fiber Optic Converters Extender size3G-HD SDI RS485 Over Fiber Optic Converters Extender Pack3G-HD SDI RS485 Over Fiber Optic Converters Extender Diagram

Features:

1. This SDI over fiber system is used to send 3G/HD-SDI Video and Audio signal over one fiber optic to remote display devices, using a single LC/LC Fiber Optic cable.

2. This unit provides optical transmission of one 3G/HD-SDI signal with embedded audio signal and one local loop out on the transmitter and receiver for monitoring

3. LC fiber interface, Working distance can be up to 20Km through a singlemode fiber optic,and up to 500meters through a multimode fiber optic.

4. Support system SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305 and Support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability

5. Plug and play.

Description:

1.Fiber interface: LC

2.It can transmission of one 3G/HD SDI over one same fiber optic for remote display device

3.With RS-485 data (reverse directional) for remote control PTZ camera

4.Working distance: Single-mode 0-20Km, multimode fiber 0-500m.

5.Support resolution of [email protected] max and backward, [email protected] max and backward

6.Support system SMPTE292M,SMPTE259M,SMPTE297M,SMPTE310, SMPTE305 and Support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability

7.The maximum cable length: SD 400m; HD 200M; 3G 140M;

8.Wavelength: Singlemode 1310nm/1550nm

9.Working voltage:AC100V-240V,DC5V/2A. Power adaptor US/EU/UK/AU plug optional.

10.Package: carton box.

Package Include:

1 x SDI Transmitter

1 x SDI Receiver

2 x SFP optical module

1 x 3m LC/LC fiber optic patch cable

2 x Power adaptor plug (default US, EU/UK/AU available )

1x Manual
