What Is BIDI SDI fiber media converter
The item is 4 channels of HD-SDI over single singlemode or multimode fiber transmitter and receiver extender kit. This unit provides optical transmission of four HD-SDI signal with embedded audio signal and 1 channel 10/100Mbps on the transmitter & receiver for monitoring, The system support signals accord with standards of Support 1080i 59.94 and embedded audio. and support SMPTE424M,SMPTE292,SMPTE295M,SMPTE297M,SMPTE305M,SMPTE310M AND DVB-ASI（EN50083-9）and support digital TV signals such as DVB-ASI meeting the industrial requirements of audio and video equipment with high performance and reliability.
Function:
3 x HD-SD (forward directional, from TX to RX )
1 x HD-SD (reverse directional, from RX to TX )
1x 10/100Mbps Ethernet (RJ45 port)
FC fiber interface, S/M:0-20Km.

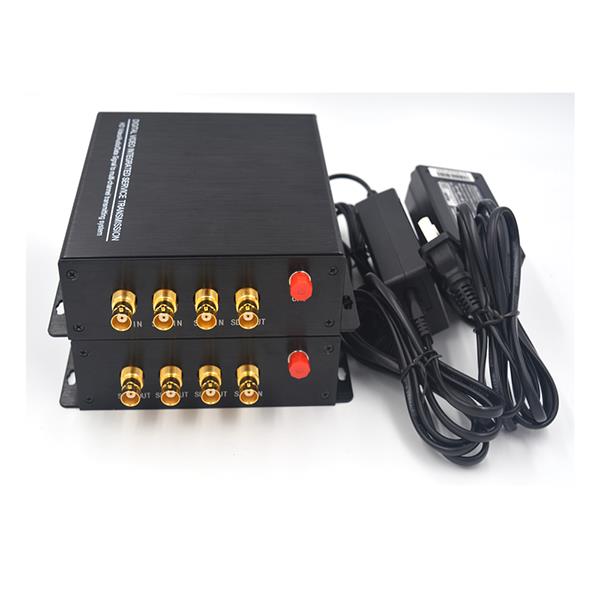

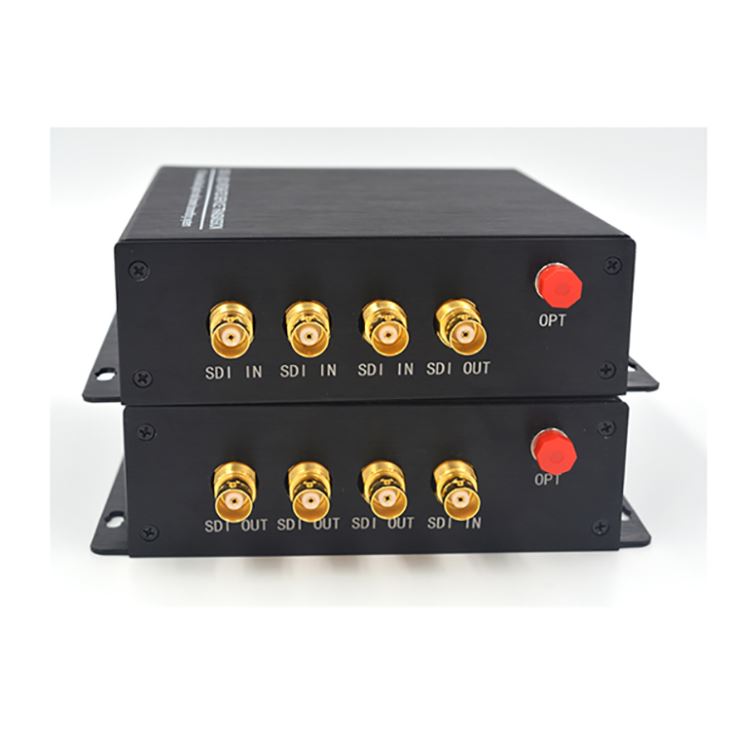

BIDI SDI fiber media converter

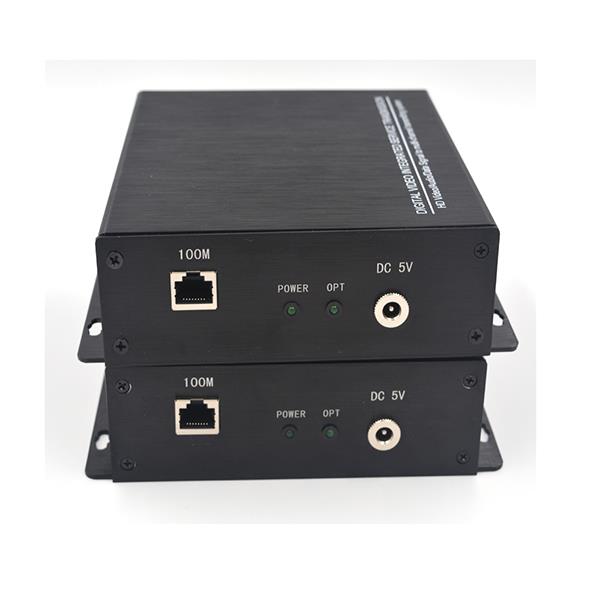

BIDI SDI fiber media converter

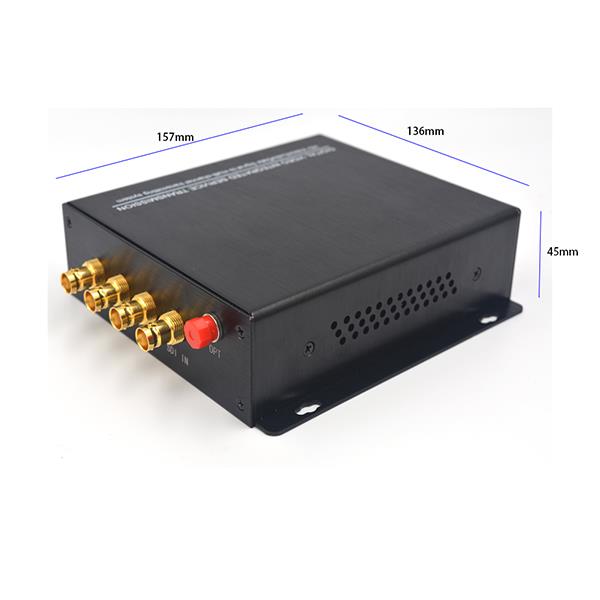

BIDI SDI fiber media converter size

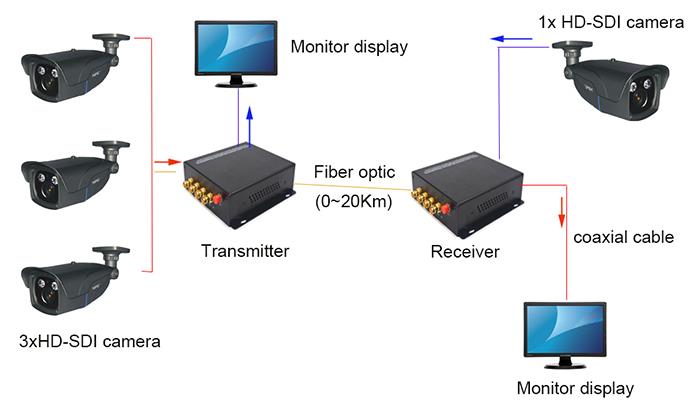

BIDI SDI fiber media converter DiagramFeatures:
1. Support 4 channels HD(high-definition) SDI video/audio over a single-mode fiber with FC optical interface ,bidirectional HD-SDI transmission. (3G-SDI optional)
2. Support [email protected] and backward, 1080i @59.94,1080i @60 and backward.
3. Support high-definition HD-SDI (1.485Gbps) (3G-SDI is optional)
4. The broadcast signal quality, fully compliant SMPT standard;
5. The maximum cable length: SD 400m; HD 200M; 3G 140M;
6. Working distance: Single-mode 0-20Km.
7. Singlemode 1310nm/1550nm
8. Voltage:AC100V-240V,DC5V/2A
9. Package: carton box
