Basic Information

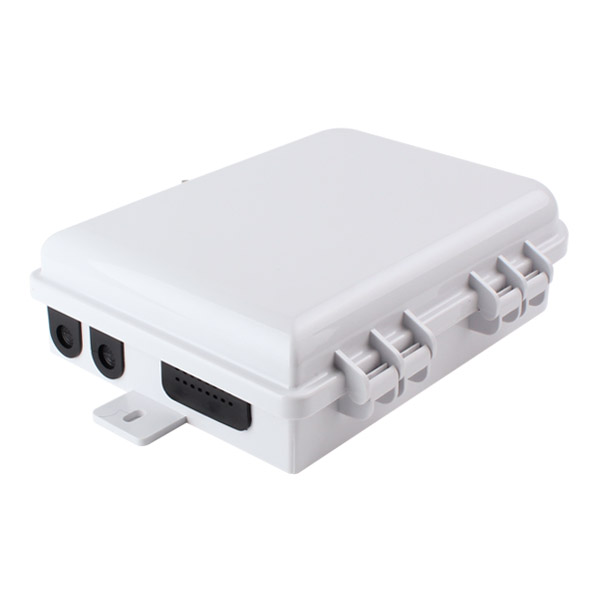

This 16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure comes with 2 ports for fiber optic cables both indoor and outdoor are workable. And there are 16 ports for drop fiber optic cable 3.0*2.0mm diameter. Inside this splitter distribution box, you can assembly 1:16 PLC LGX optical splitter connected with adapters. Then the drop cable with connectors can be easily connected with the adapters for use.
Specification
| Suitable Adapters | SC LC Adapters |
| Material | Premium ABS material |
| Weight | 1620g |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 16 Small Ports + 2 Cable Ports |
| Installation way | Wall Mounted or Pole Mountable |
| Dimensions | 340mm*260mm*90mm |
| Applications | Wall mount or pole mount |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 16pcs SC |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Both Indoor / Outdoor Cable |
| Location | Wall or pole Usually |
| Location of Use | FTTH,FTTB,FTTX |
| Lock Compatible | Screws |
| Number of Terminal Drops | 16 Cables |
| Number of Trays | 1 Splice Tray |
| Product Type | Splitter distribution or drop cable |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 16 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 20pcs |
Image Details

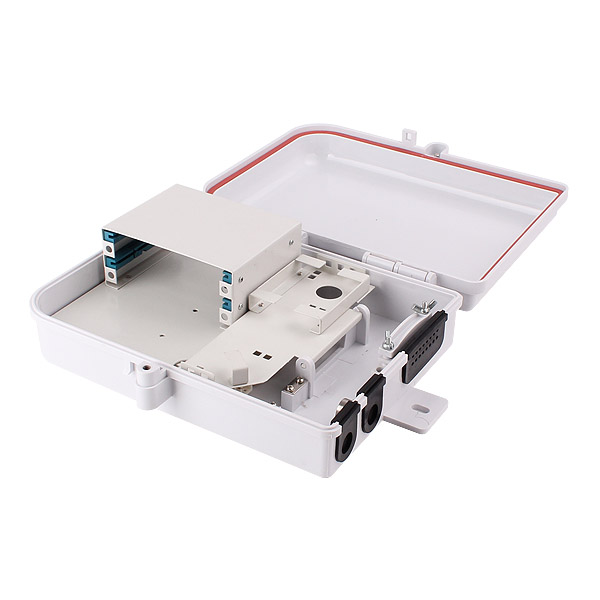

16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box inside view
FAQs
What items are included in this 16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box
A main parts (cover and base), 2 screws and 20 pcs heat shrinkable sleeves.
