- Description

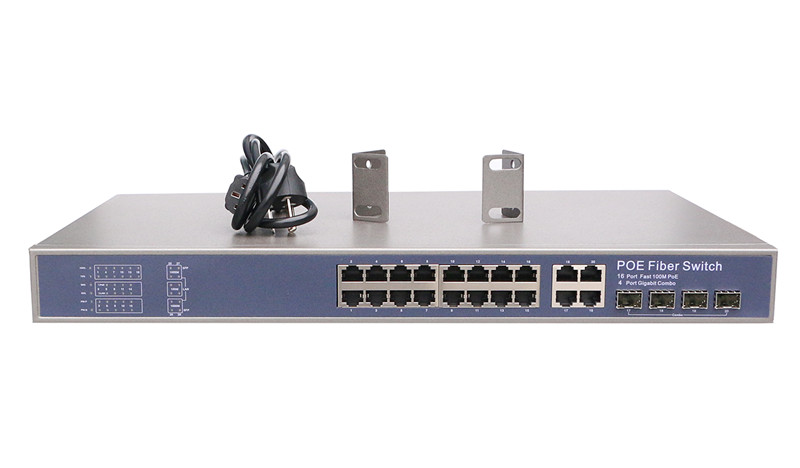

16 Port PoE + 4 COMBO SFP Fiber POE Switch
applied to POE IPC camera, POE WIFI AP, and POE IPPHONE, and easy for network transmission. This device comes with SFP port, easy for optical fiber remote transmission.
Main Features
◆ 16FE POE+4GE+4 COMBO SFP.
◆ Comply to IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、802.3X、802.3z.
◆ Comply to POE IEEE 802.3af/at standard, all ports standard testing.
◆ Support POE IPC camera, POE WIFI AP, and POE IPPHONE.
◆ Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure.
◆ Auto MDI/MDIX.
◆ Upstream port lightning protection.
◆ MAX 30W, MAX power 150W.
◆ Store-and-forward.
◆ All ports support wire speed switch, jumbo frame transmission.
◆ Zero QFD, self-adaption.
◆ Panel lights can monitor operative mode and malfunction analysis.
ElectricPort
100M POE
16
1000M Rj45
4
SFP
4
Function
Exchange
Mechanism
Store-and-forward
Exchange Capacity
12.8G
MAC
16K
Environmental
Working Temperature：0℃-40℃
Storage temperature ：-40℃-70℃
Working Tumidity ：10%-90% RH non-condensing
Storage temperature：5%-90% RH non-condensing
POE
IEEE802.3af/at, MAX 30W, MAX power 300W
power
AC110-265V 50/60HZ 2.5A
Network protocol
IEEE 802.3X
IEEE 802.3i 10BASE-T X
IEEE 802.3u 100BASE-TX
IEEE 802.3z 1000BASE-X G
IEEE 802.3af /IEEE 802.3at
IEEE 802.3x Flow control
IEEE 802.1q VLAN Bridge operation
Default
Mode
Common switch
Match
VLAN isolation
Speed
Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex
Network Media
10Base-T: Pair 2 Category 3 and above UTP/STP(≤100m)
100Base-TX: Pair 2 Category 5 and above UTP/STP(≤100m)
1000Base-T: Pair 4 Category 5 and above UTP/STP(≤100m)
1000Base-SX:62.5um/50um MMF（2m-550m)
1000Base-LX:62.5um/50um MM（2m-550m) or 10um SMF（2m-5000m)
Physical Specifications
Product Size：440mm*290mm*45mm(L*W*H)
package Size：497mm*393mm*97mm(L*W*H)
4.5kg
