Basic Information
16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure has 2 indoor or outdoor cable entrances and 16 ports for drop fiber optic cables. Usually used to assembly with a 1:16 PLC splitter inside with 16pcs fast connectors drop cables.
Specification
| Suitable Adapters | SC LC Adapters |
| Material | Premium ABS material |
| Weight | 1320g |
| Available Cable | Outdoor or Indoor Cable |
| Outlet | 16 Small Ports + 2 Cable Ports |
| Installation way | Wall Mounted or Pole Mountable |
| Dimensions | 320mm*270mm*105mm |
| Applications | Wall mount or pole mount |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 16pcs SC |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Both Indoor / Outdoor Cable |
| Location | Wall or pole Usually |
| Location of Use | FTTH,FTTB,FTTX |
| Lock Compatible | Screws |
| Number of Terminal Drops | 16 Cables |
| Number of Trays | 1 Splice Tray |
| Product Type | Splitter distribution or drop cable |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 16 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 20pcs |
Image Details

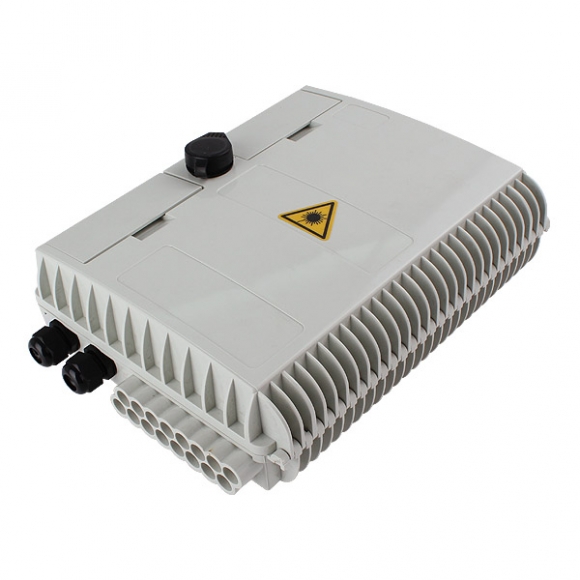

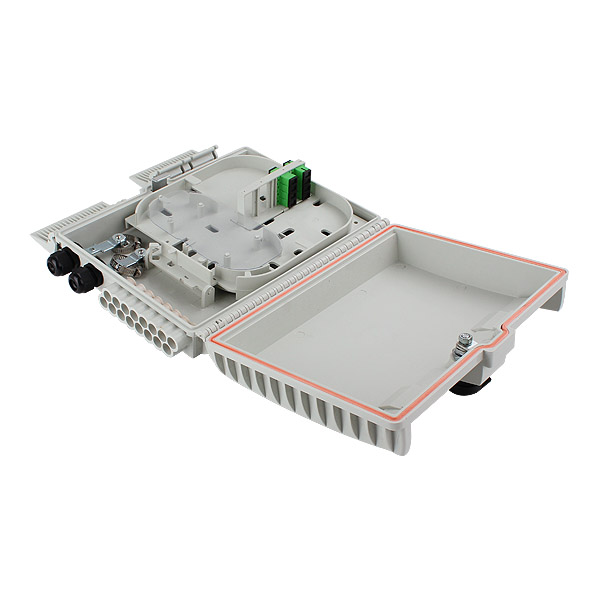

16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure
16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure order with confidence

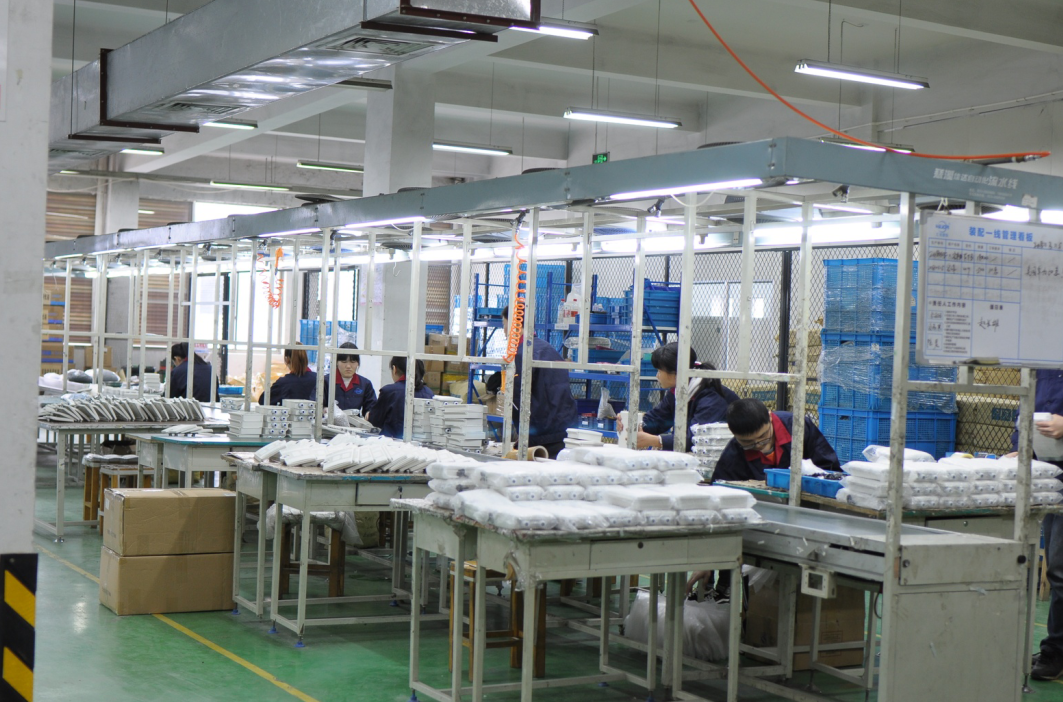

16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure Production Line
FAQs
What items are included in this 16 port Indoor / Outdoor Wall Mounted Access Termination FTTH Optical Fiber Distribution Box Enclosure
A main parts (cover and base), 6 screws and 16 pcs heat shrinkable sleeves.
What is MOQ for this item
10pcs, And if you want 1pcs for testing purpose, It is ok and free!
What can this fiber distribution box work with
It can work with SC LC fiber optic pigtails or 1:16 plc fiber optic splitters with sc fiber connectors.
Can we have them installed with plc splitters
Yes, You can buy from us this fiber distribution box with plc splitter or pigtails or adapters only. We can installed them for free.
