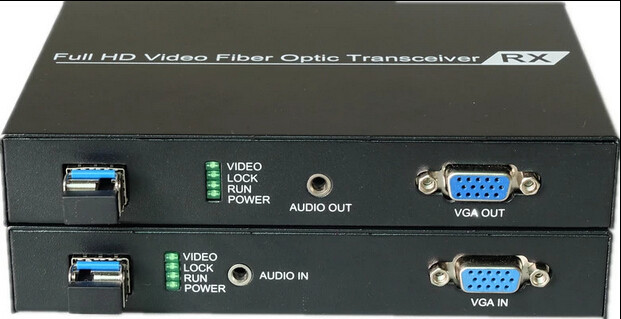

1 Channel VGA over Single-mode Optical Fiber Transmitter and Receiver Set with embedded audio FC 20km
vga video converter digitally transmits high-resolution VGA/RGB (up to WXGA) and stereo audio over one fiber, single-mode or multimode, single-core, 1310 nm wavelength. Ideal for point-to-point, point-to-multipoint and drop-and-repeat applications, it supports VGA, SVGA, XGA and WXGA (640 x 480, 1024*768, and 1280*1024, up to 1366 x 768) or RGBHV format.

And VGA Fiber Optic Transmitter should be worked with VGA Fiber Optic Receiver.The price on the website is for Pair.
Features
Audio Channel: 1 channel bidirectional stereo Audio
Video Channel: 1 channel Unidirectional
Data Formats: 1 channel Reversed RS232(duplex)
PS2 Channel: 2 channel (PS2 for K&M is optional)
Transmisson Distance:20km
Fiber Type: Single-mode Simplex
CRAFT: uncompressed technology
Highest resolution: 1920×[email protected]
Sampling clock phase adjustment
Image brightness adjustment
Image contrast adjustment
10-bit digital video encoded and uncompressed transmission technology
The parameters could be saved, and also could be saved after power is turned-off
Plug and play at any time, basically no need to be adjusted
Automatic identification of input video format, receiver output meets industry-standard video
Using DC-DC power conversion technology, could effectively resist environmental interference of power
4U rack mount, 1U rack mount and stand-alone
Lower power consumption and free installation, Jitter
Applications
Remote OB Van/Truck Video Feeds
Broadcast Studio Camera Feeds
Long-haul Signal Transport
TV station/video conference
Lecture Hall Projector Connectivity
Medical/Surgical Room Broadcast
Building to ing video conference calling
Small corporate campus video links

A
Optic connector:
Support FC/ST PC optical connector as default, SC/LC fiber adapter available for choice
B
VGA IN connector:
VGA Input
C
Terminal block data connector:
Forward, reversed or bidirectional RS232 data formats for choice
D
Audio IN/OUT:
IN: stereo audio input, 3.5 mm Stereo Audio Jack Audio Connector
OUT: stereo audio output, 3.5 mm Stereo Audio Jack Audio Connector
E
PS2 Connector:
KEY: connect with keyboard
MOUSE: connect with mouse
F
Package:
Support Stand-alone, Card type.
1U Rack Mount supports 4pcs of VGA Stand-alone type.
Following rack mounts for VGA card installation:
1U Rack Mount supports 4 pcs of VGA cards.
4U Rack Mount supports 13 pcs of VGA cards with dual power.
4U Rack Mount supports 15 pcs of VGA cards with single power.
Note: Actual layout depends on customers’ requirements. However, the principal scheme stays the same.
