LC/UPC to SC/UPC Hybrid Simplex Metal Fiber Optic Adapter

LC/UPC to SC/UPC Hybrid Simplex Metal Fiber Optic Adapter

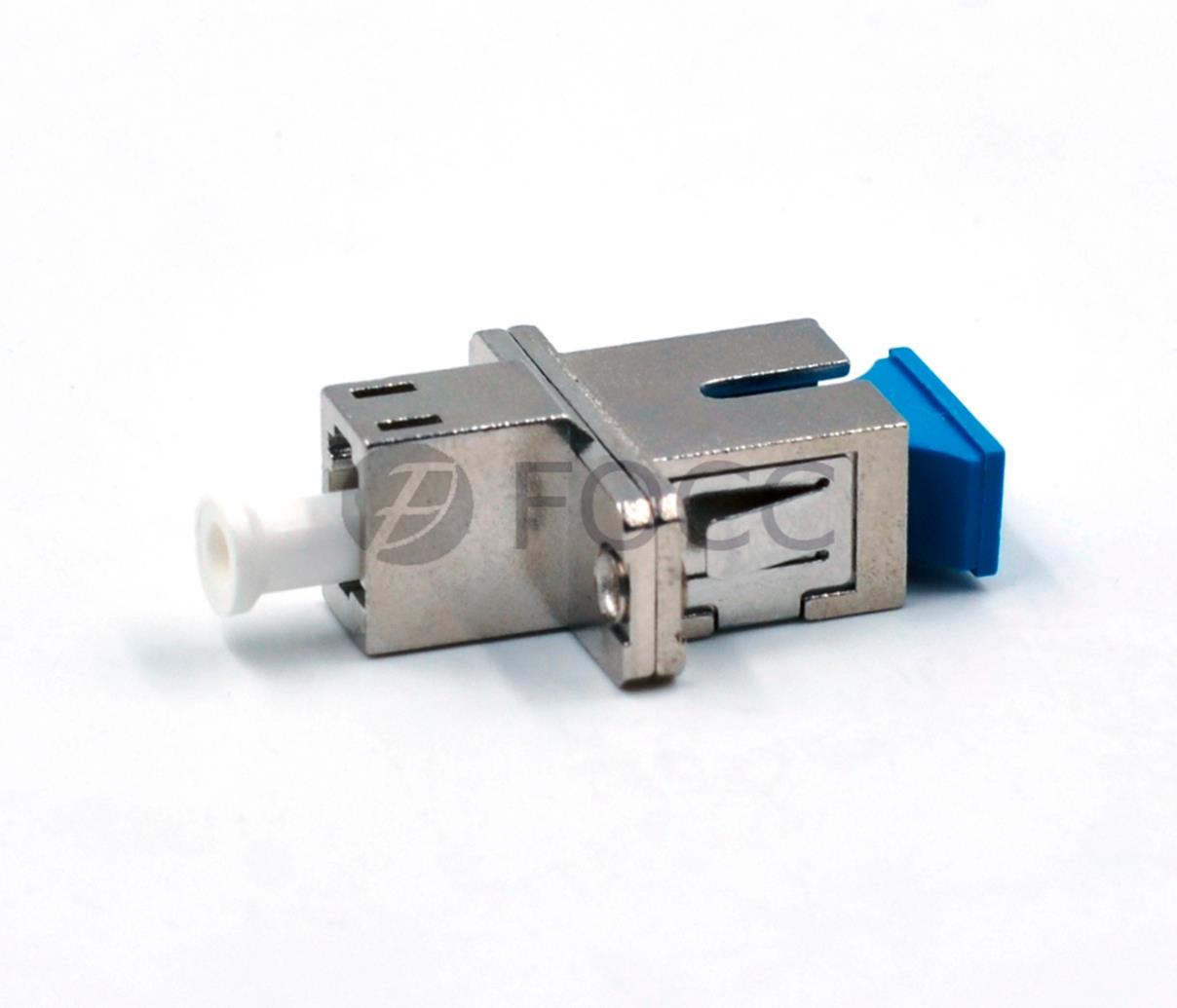

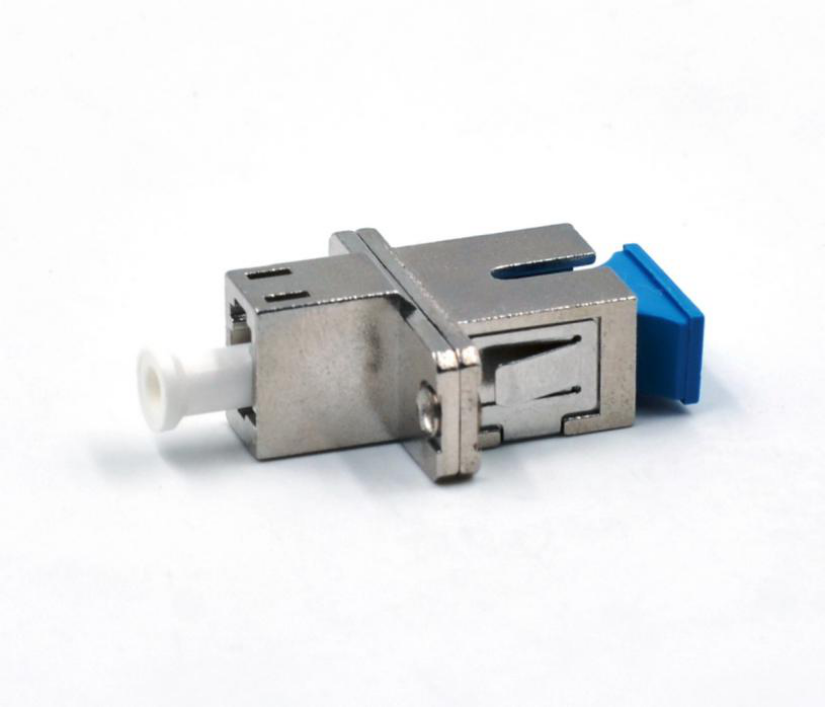

LC/UPC to SC/UPC Hybrid Simplex Metal Fiber Optic Adapter Fiber optic adapters are used to provide a cable to cable or cable to equipment fiber optic connection. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

The LC-SC Hybrid Fiber Optic Adapter is a special style of fiber optic adapter that supports precision connection of different types of fiber optic connectors. It is specially designed to incorporate the Small Form Factor LC into SC configured environment. The compact design enables network operators to reduce cost via space-savings, and by eliminating hybrid cable assemblies.

It is used to connect singlemode or multimode fiber optic cables with LC/UPC – SC/UPC connectors, which are mostly used in distributions frame, connecting patchcords with pigtails welded with optic cable. Singlemode adapters are made of bronze housing and ceramic sleeves and it is more precise than multimode adapter. It can be used with fibre optic patchcords, which send high-speed data through a network.

LC to SC Hybrid Hybrid Single-mode/Multimode Metal Fiber Adapter

LC/UPC to SC/UPC Hybrid Simplex Metal Fiber Optic Adapter low insertion loss and high returnloss can satify the requirements of fast,exact,lastingand stable connection in different environments! Fiber optic adapter is also called fiber optic coupler. It contains the interconnect sleeve, that holds the two ferrules together.It is used to provide a cable to cable fiber connection.

Features & Applications LC/UPC to SC/UPC Fiber Optic Adapter

v LC/UPC style to SC/UPC style

v compatibility, repeatability

v high precision size has good compatibility

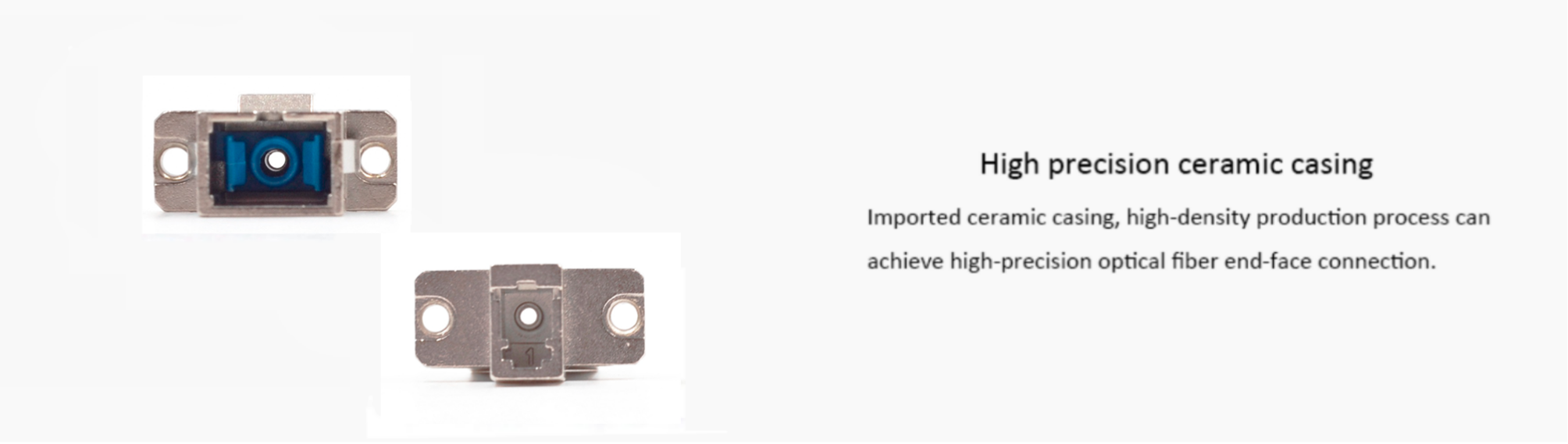

v resistance to friction ceramic casing

v environmental stability good

v Low insertional loss and back reflection loss

v High prcision alignment

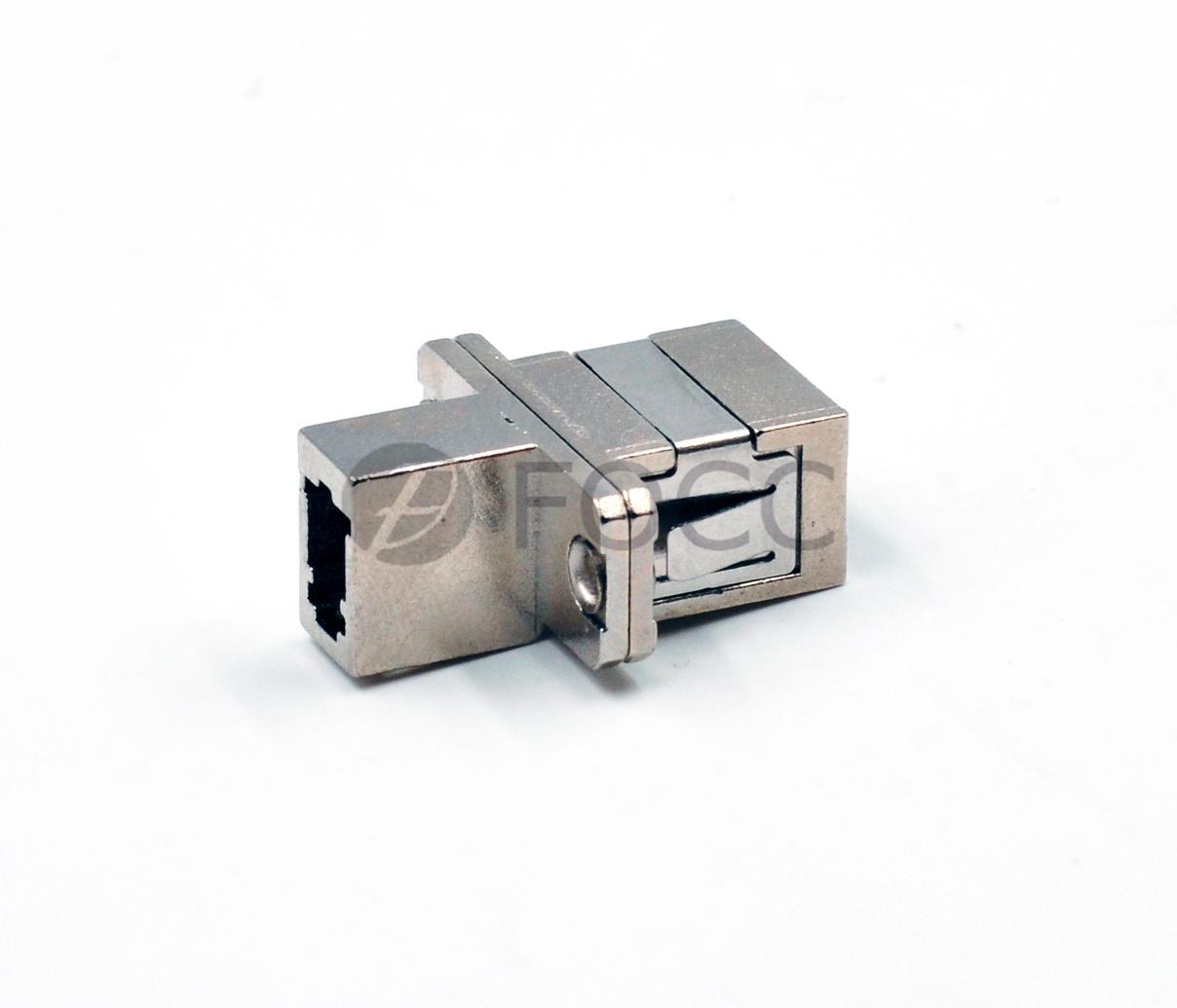

v Nickel plated brass body

v Use in Single-mode or Multimode applications

v Choice of housing material and sleeve material

v CATV

v Telecommunication networks

v Test equipment

v Local Area Networks(LANs)

v Data processing networks

Technical specification

Product Highlights

v Low insertion loss and excellent durability

v Good repeatability and variability

v Excellent temperature stability

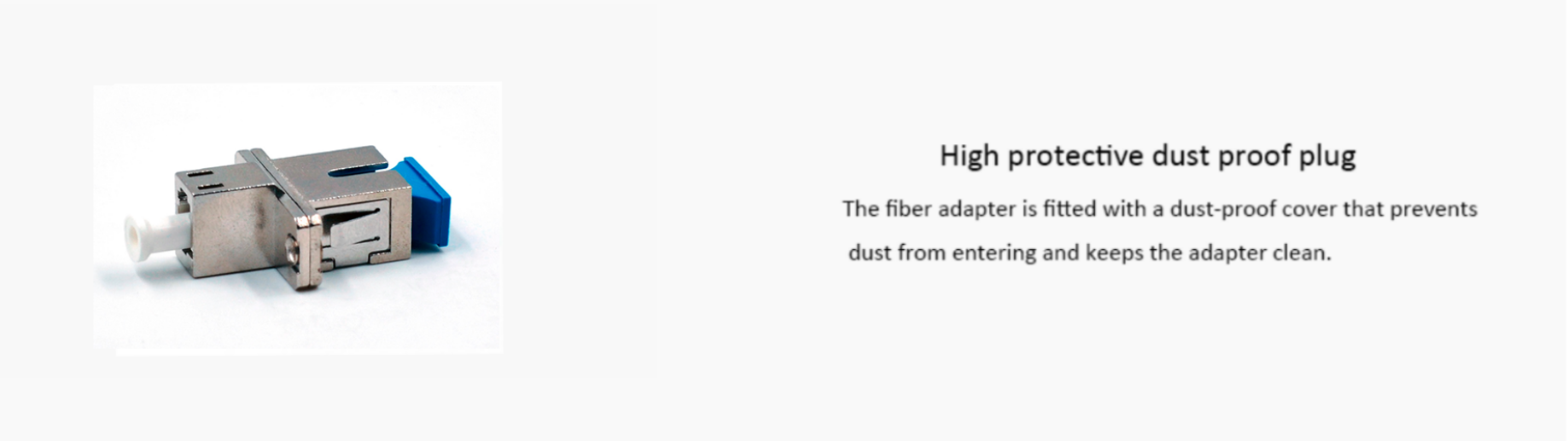

Free suspension or panel fixing design, dustproof cap protection against debris and contamination, in accordance with RoHS standards.

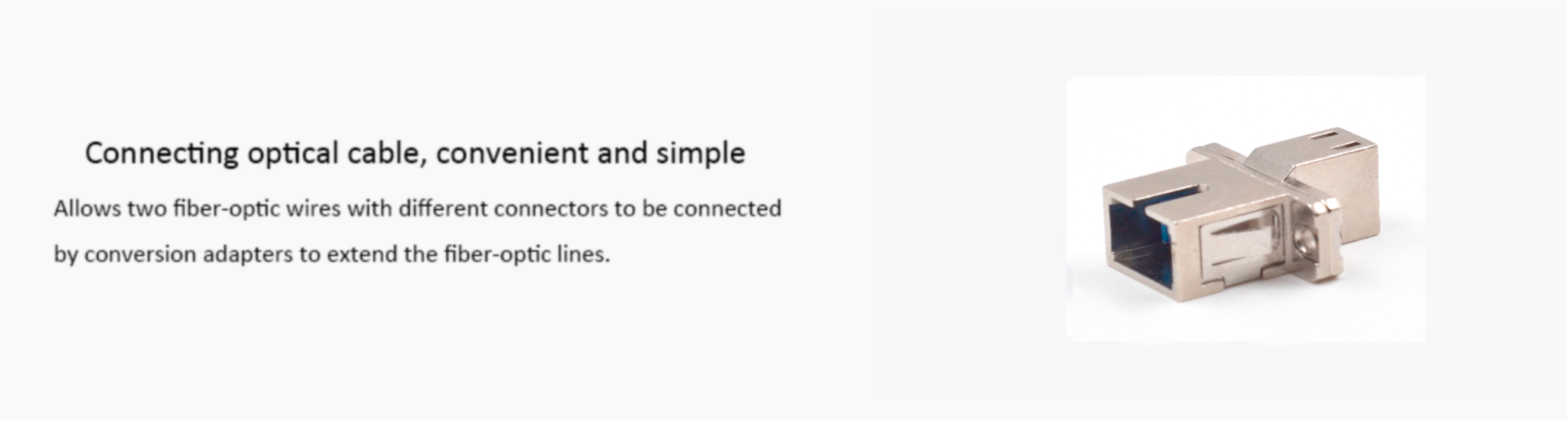

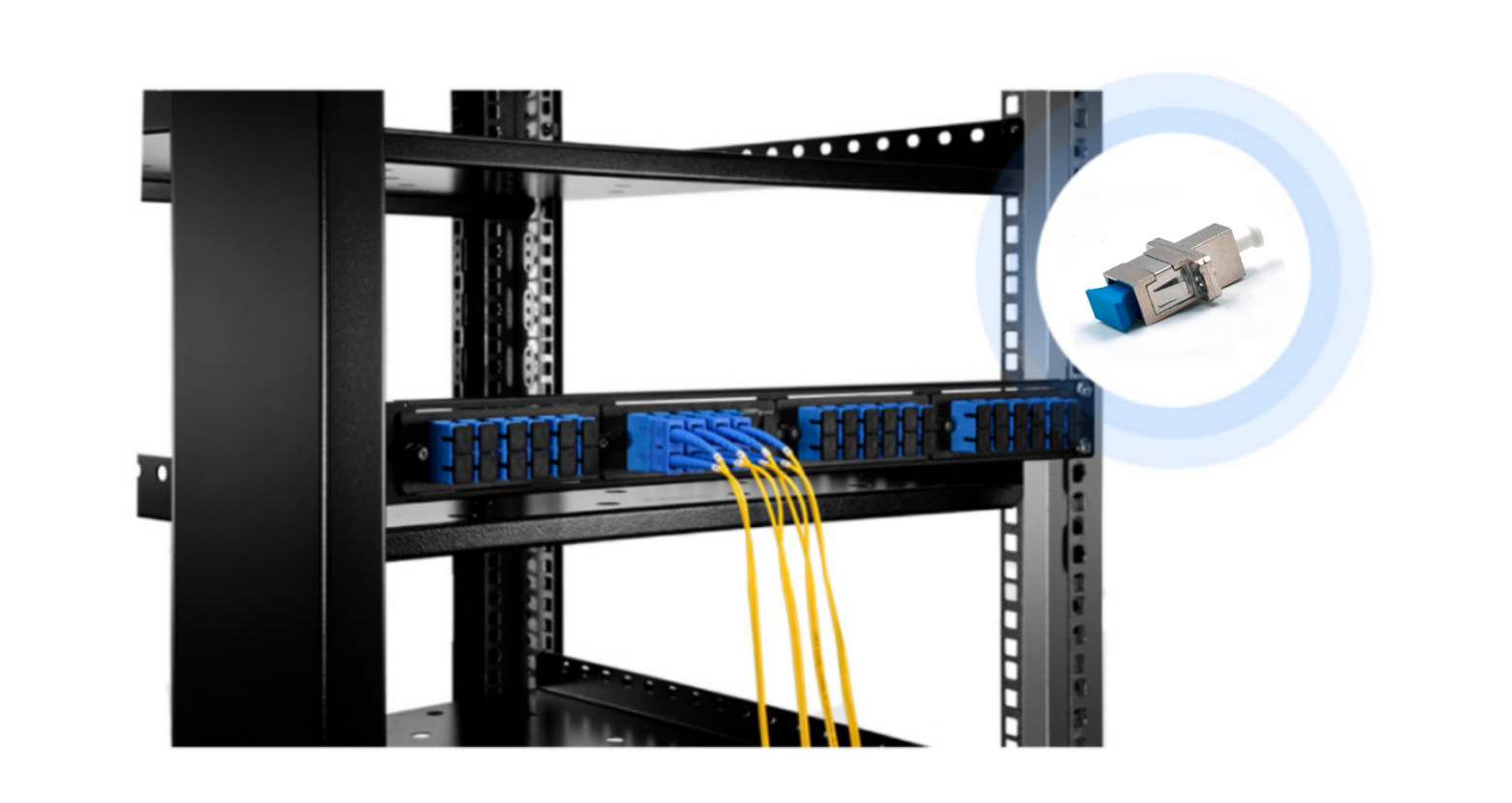

Adapters close the gap between optical fiber connectors

Widely used in optical fiber communication systems, cable television networks, local area networks and wide area networks, fiber access networks and video transmission.
