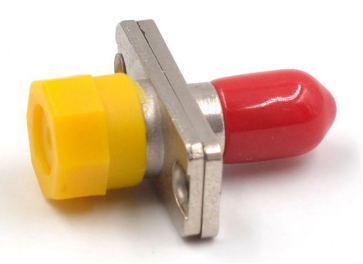

DIN To FC Fiber Optic Adapter Metal Hybrid

DIN To FC Metal Fiber Optic Hybrid Adapter

DIN To FC metal fiber optical hybrid adapter are used to link fiber patch cables or fiber optic connectors. They are reliable in performance. Optical adapters are widely uses in light distribution frame(ODF), the optical fiber communications equipment, the measuring appliance and so On. We supply a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adaptor.

As we know, fiber optic connector play an important roles in jointing two fiber links together. Beside the connectors, there is also another item, which is fiber optic adapter (adaptor) generally installed in patch panels, instrument, devices etc for mating two fiber optic connectors.

Features & Applications

v Low insertion loss, high return loss

v Good compatibility

v High precision of mechanical dimensions

v High reliability & stability

v Local Area Network

v CATV System

v Telecommunication Networks

v Equipment Test Specification:

Technical specification

Connector Type	DIN-FC	Matrial	metal
Fiber Counts	Simplex	Fiber Mode	Singlemode/Multimode
Insertion Loss	≤0.2dB	Durability	1000
Flammability Rate	UL94-V0	Working Temperature	-25-70°C

Product Highlights

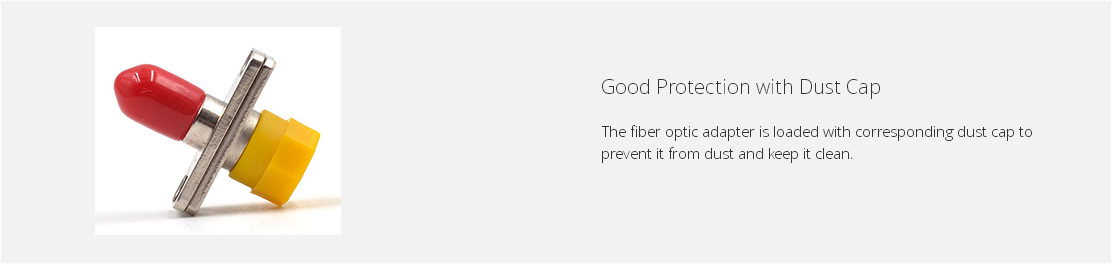

Free-standing or panel-mounted design, dust cap protection against debris and contamination, RoHS compliant

DIN To FC hybrid fiber adapter:

An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.
Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.

Quick Information:
– Name: DIN/UPC To FC/UPC Hybrid Through Connection Single Mode Simplex Fiber Optic Adapter
– Fiber type: Single mode (SM) 9/125
– Signal way: simplex (1 ways)
– Material: metallic
– Adapter type: throught connection from DIN to FC
– IL: less than 0.2dB
– RL: More than 50dB
– P/N: KCO-DIN-FC-SM-SX

Descriptions:
– DIN fiber optic adapters which come with zirconia sleeves and threaded size.
– They are available in both single mode type and multimode types.
– DIN 47256 (LSA) feature a single unit body with spring-loaded free floating zirconia ferrule.
– This unique connector offers superior performance in a compact DIN47256 compatible design suitable for various applications.
– The DIN adapters are consistent performance and durability.

– Fiber Optical Adapter are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.Features:– Low insertion Loss– High Return Loss– Excellent changeability and directivity– 100% Optic test (Insertion Loss)

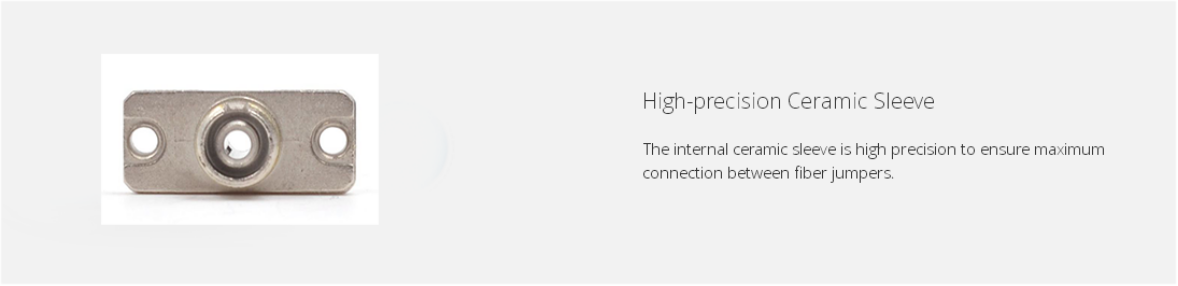

– Ceramic and phosphor bronze sleeve tube optional
– Accurate external size
– Individually packaged

Applications:
– Testing instruments
– Connection between devices
– Connection between fiber optic patch cords
– CATV, MANS, WANS
– FTTX, FTTH

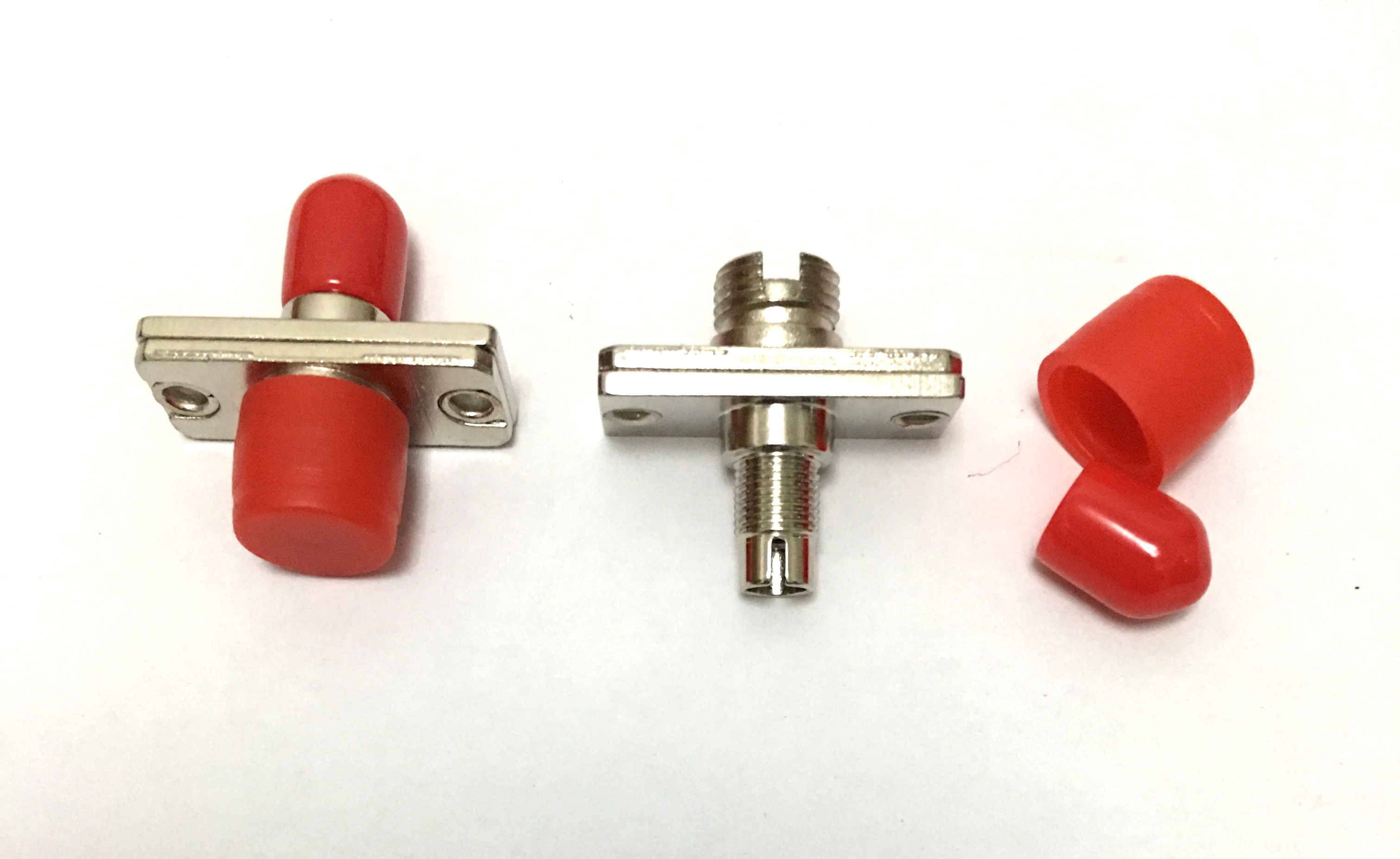

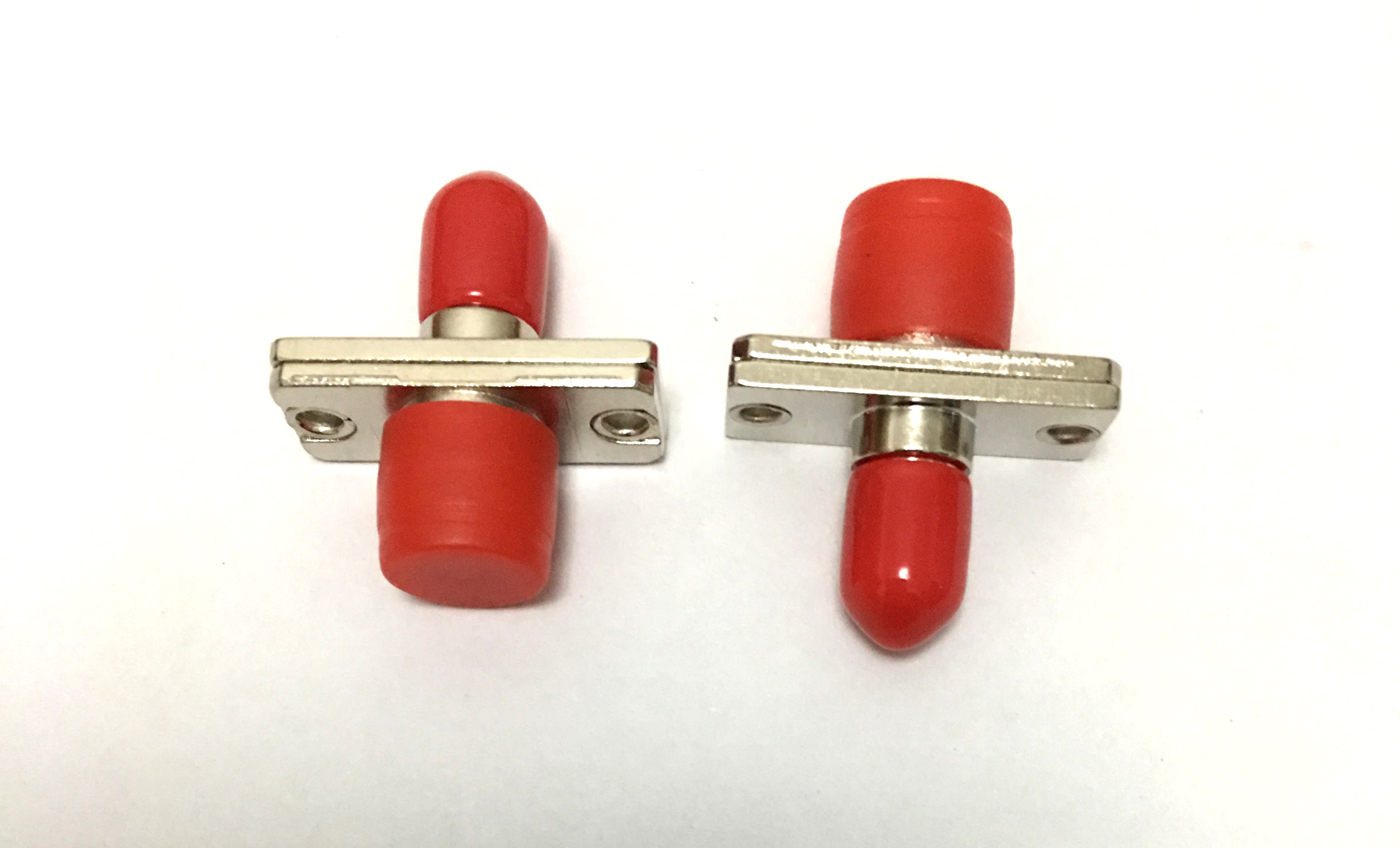

Product pictures:

Reliability testing:

Item	Test Name	Additional Insertion Loss	Additional Return Loss
1	Mechanical durability	<0.2dB	<5dB
2	Repeatability	<0.2dB	<5dB
3	Lock strength	<0.2dB	<5dB
4	Low strength	<0.2dB	<5dB
5	High temperature	<0.2dB	<5dB
6	Steaming	<0.2dB	<5dB
7	Temperature cycle	<0.2dB	<5dB
8	Vibration	<0.2dB	<5dB
9	Drop	<0.2dB	<5dB
