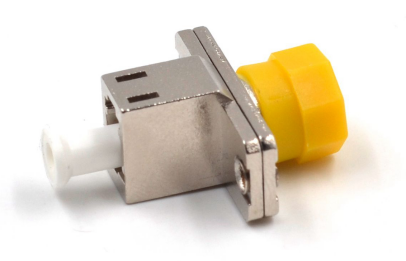

LC To FC Metal Hybrid Fiber Optic Adapter
LC To FC hybrid fiber optic adapter manufactured by SUNMA are used for hybrid connections between LC and FC connectors. High-precision ceramic ferrules enable reliable ferrule fit, ensuring low insertion loss and return loss during connection. hybrid adapters are suitable for a wide range of environments, providing flexibility and reducing the size, weight, and complexity of the system.
The Adapter is a special style of fiber optic adapter that supports precision connection of different types of fiber optic connectors. It is specially designed to incorporate the Small Form Factor FC into LC configured environment. The compact design enables network operators to reduce cost via space-savings, and by eliminating hybrid cable assemblies.
Features & Applications LC To FC Hybrid Fiber Optic Adapter
LC To FC Male to Female Adapter/coupler is passive device with both plastic housing and metal housing type. And these adapters possess the feature of stability and reliability.
This hybrid fiber adapters have single mode( 9/ 125 um) and multimode( 50/ 125 um or 62.5/ 125 um) types. Also, all of them have precision UPC or APC ceramic sleeves, in simplex and duplex style. They are widely used in the fiber optic links.
Adapter is a specially design enables direct optical connection between FC plug and LC plug. It has high precision alignment, and achieve the lowest lost transmission in operation. This fiber optic adapter offers the best connection solution in optical communication system, optical instrument, fiber optic sensor, and optical fiber CATV etc.
v High precision dimensions
v Insertion loss is low
v The environment stability is strong
v Easy to install
v CATV network systems
v Data communication networks
v LAN, FTTH, Test equipment
v Telecommunication transmission systems
v Premise installation
Technical specification
| Connector Type | LC/UPC-FC/UPC | Polish Type | Metal |
| Fiber Counts | Simplex | Fiber Mode | Singlemode/Multimode |
| Insertion Loss | ≤0.2dB | Durability | ≤0.1dB |
| Flammability Rate | UL94-V0 | Working Temperature | -25-70°C |
Product Highlights
Free-standing or panel-mounted design, dust cap protection against debris and contamination, RoHS compliant
