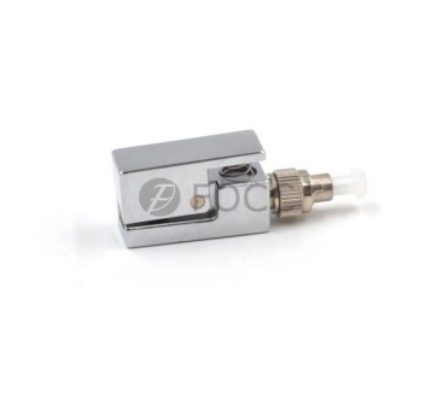

FC Bare Fiber Optic Adapter

FC Bare Fiber Adapter Bare fiber adapter is a very efficient media to connect bare fiber to fiber optic device, it usually used in installation to test links. One side of the bare fiber adapter is the bare fiber, the other side is the fiber optic connector to plug into equipment.

FC Bare Fiber Adapter

Bare fiber adapters are used as the medium to link the bare optical fiber to fiber optic equipment. The bare fiber optic adapters have the bare optical fiber inside on one side; the other side of the adapter is a connector that can plug into the equipment.

Features :

Small loss, excellent reflex inhibition
Size precision, matching
Easy to operate and intuitive, can be used by the naked eye
Can be reused
Singlemode and multimode fiber can be used
Compact design
Accord with Telcordia, ANSI, the TIA/EIA, NTT, JIS and other standards

Applications:

Temporarily connactorizes bare fiber
Testing bare fiber, fiber on the reel, fiber before and after installation
Production line of fiber optic devices
For fast and temporary fiber optic connections in communication system

Bare fiber adapter is a very efficient media to connect bare fiber to fiber optic device, it usually used in installation to test links. One side of the bare fiber adapter is the bare fiber, the other side is the fiber optic connector to plug into equipment.

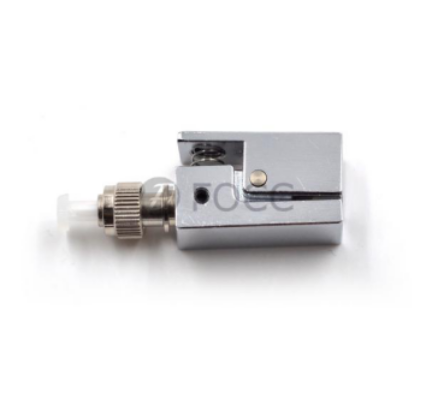

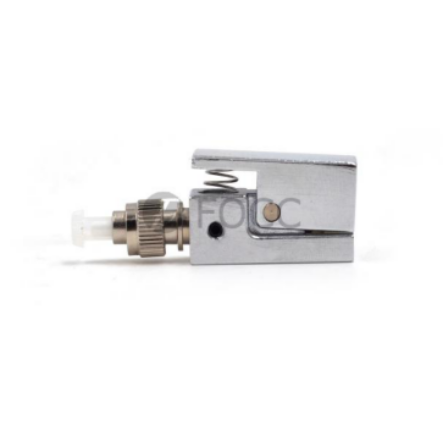

FC Bare Fiber Optic Adapter

Bare fiber adapters provide a simple and effective way to use unterminated fibers with commerical receptacles.Simply strip and cleave your fiber and insert in to the bare fiber adapter. Broken fibers are easily removed with piano wire, allowing hundreds of insertions. They are recommended for power meter hook-ups, temporary system repairs or wherever a quick fiber connections is required.

Features:

v Simple to use

v Suitable for fibers with coating diameters of 250um & 900um.

v Optical fiber with hole dia. between 123-127um can be used.

v Multimode or Singlemode connectors.

Applications:

v Temporarily connactorizes bare fiber

v Testing bare fiber, fiber on the reel, fiber before and after installation

v Production line of fiber optic devices

v For fast and temporary fiber optic connections in communication system

v Temporary connections to OTDRs, Power Meters, Talk sets, Demo Equipment and Dark Fiber

Technical specification

Instructions on How to Use Bare Fiber Adapters:
1). Strip the outer jacket to about 3 inches
2). Strip the buffer coating leaving about 2 inches of fiber exposed
3). Score and Cleave the fiber, leaving 0.5 inches bare fiber exposed.
4). Once it is cleaved, clean the fiber with Isopropyl alcohol and Kim wipes
5). Press the clamp button on the bare fiber adapter. Insert the cleaved fiber in the rear of the housing until the glass is flush with the end of the ferrule. Release the clamp button, securing it in place.
