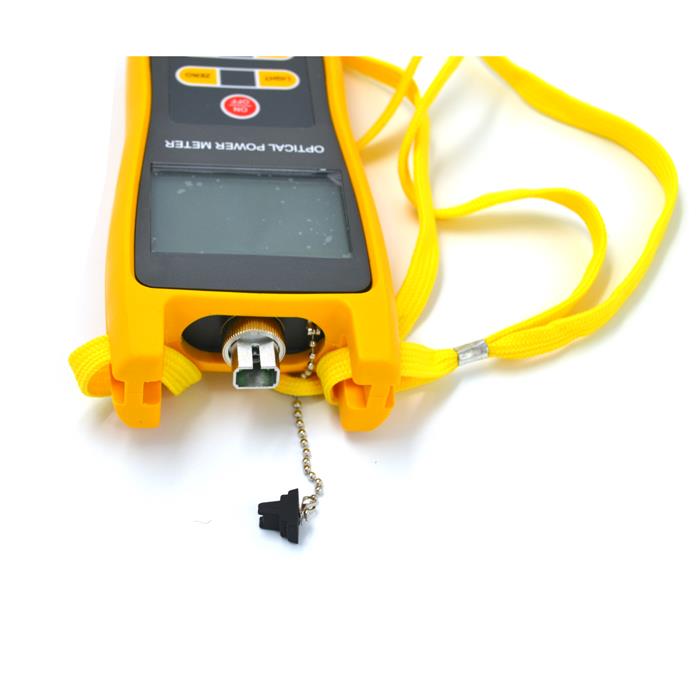

JW3208 Handhold Optical Power Meters
JW3208 handhold optical power meteris a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. It features ingenious appearance, wide range of power measurement, high accuracy and user self-calibration function with high performance-to-price ratio.
Features:
lUser self calibration function
lComfortable LCD diJWlay and optional backlight LCD diJWlay supportsnight operation
lPower measurements in dBm or mw and insertion loss in dB
lLow battery consumption, more than 240 hours continual operation timefor three 1.5V alkaline batteries
l10 minutes Auto-off function can be activated or deactivated.
Applications:
Maintenance in Telecom
Maintenance CATV
Fiber Optic Lab Testing
Other Fiber Optic Measurements
Specifications:
| Type | JW3208A | JW3208C |
| Wavelength(nm) | 800-1700nm | |
| Detector | InGaAs | |
| Measurement Range (dBm) | -70-+3 | -50-+26 |
| Uncertainty | ±5% | |
| Calibrated Wavelength(nm) | 850,980,1300,1310,1490,1550 | |
| Resolution(dB) | 0.01 | |
| Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm universal | |
| Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |
| Battery Operating Time | 240 h with 1.5V Battery(3) | |
| Operating Temperature(℃) | -10 - +60 | |
| Storage Temperature(℃) | -25 - +70 | |
| Relative Humidity | 0 to 95% (non-condensing) | |
| Dimension(mm) | 175x82x33 | |
| Weight(g) | 310 | |
Standard Packages
| Model | Includs |
| All JW3208 Models | JW3208 Optical Power Meter, Protective Rubber Boot, 3pcs 1.5V batteries, User Manual, Cotton swabs and Soft carrying case. |
