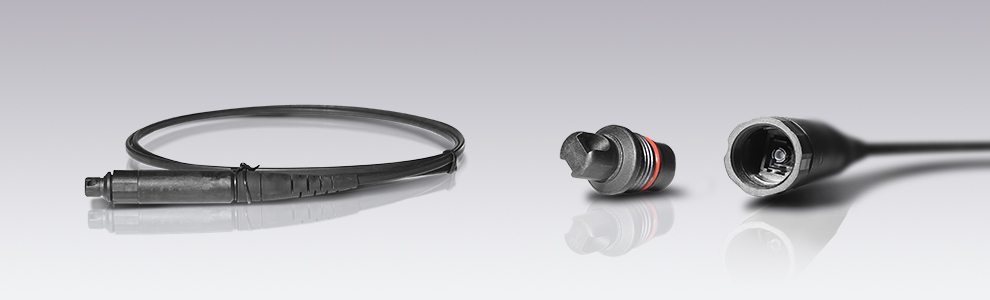

H Connector Optic SC/APC Outdoor Cable Assembly

H Connector Optic (SC/APC) Outdoor Cable Assembly H optic with indoor cable H optic with round drop cable Waterproof Fiber Optic Patch Cord

H Connector Optic (SC/APC) Outdoor Cable Assembly H optic with indoor cable H optic with round drop cable Waterproof Fiber Optic Patch Cord assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

H-Connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H-Connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the H-Connector provides an ideal solution for direct burial, conduit, or aerial installations.

H Connector Optic (SC/APC) Outdoor Cable Assembly

APPLICATION

• FTTH
• Outdoor Areas
• Harsh Environment

FEATURES

• Single fiber, SC-based connector
• Bird proof and rodent resistant
• IP67 water and dust protection
• Low profile in-line receptacle available
• No installation tools required
• In-line connection available
• Cable diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm

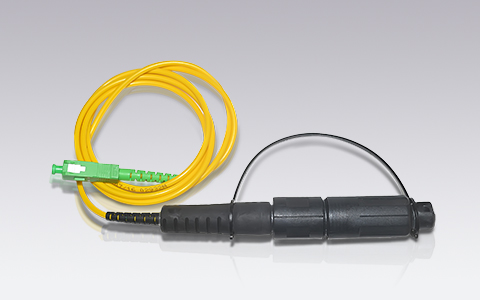

H optic with indoor cable

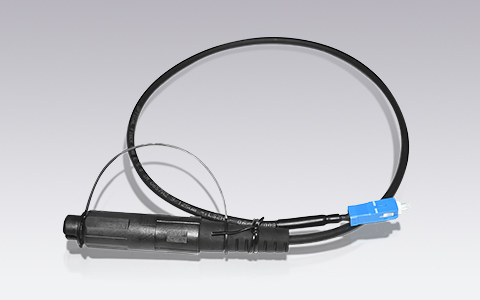

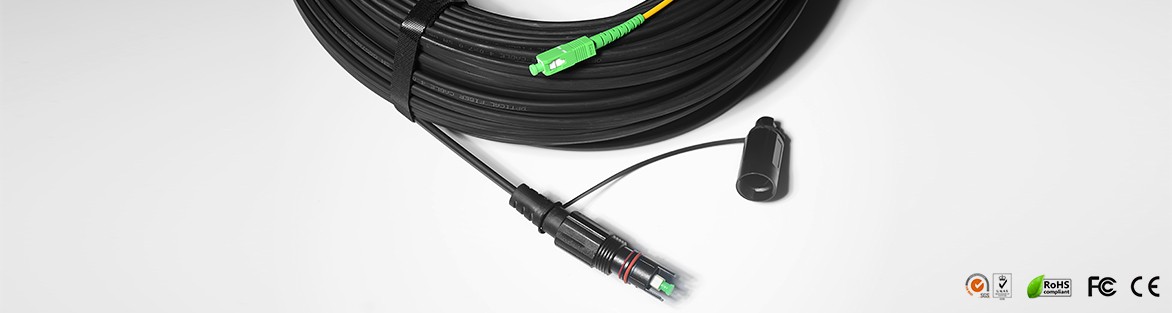

H optic with round drop cable

Female H Optic (SC/APC) Connector Waterproof Fiber Optic Patch Cord

Type	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
Insertion loss	≤0.1	≤0.3dB	≤0.15	≤0.3dB	≤0.05	≤0.3dB
Return loss	≥50dB		≥60dB		≥30dB
Durability	500 mating cycles
Working temperature	-40 to + 85℃

Description of H connector

• H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

• The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.

• The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications

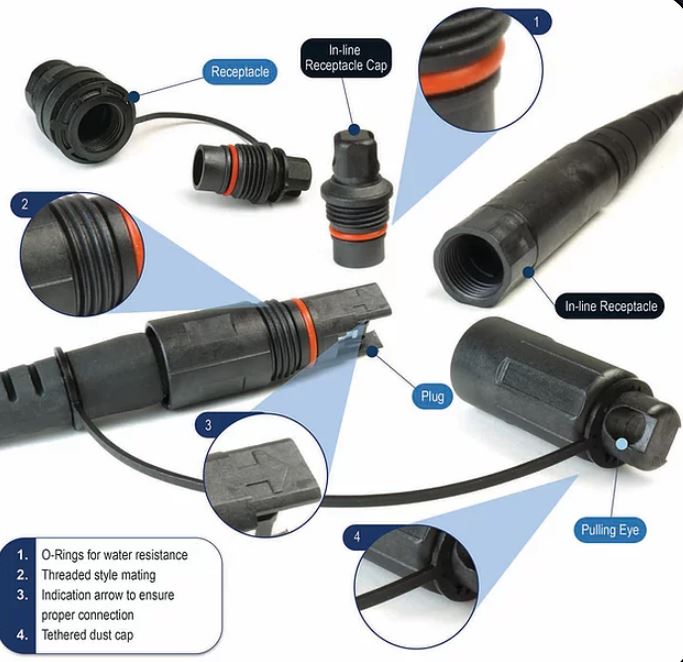

H Fiber Optic Connector

Benefits

• Allows flexibility to use factory terminated assemblies
• Provides superior weather resistance for FTTH and other outdoor applications
• Ensures functionality in harsh weather environments
• Can be used with industry standard cable designs
• Easily installs without special tooling
• Threaded style coupling
• Provides bend protection for installation and long term use

Features

• Single fiber, SC-based connector
• Bird proof and rodent resistant
• IP68 water and dust protection
• Low profile in-line receptacle available
• No installation tools required
• 100 minimum mating cycles
• In-line connection available
• Operating temperature: -40° to 85°C
• Cable Diameter Range: 2.0mm, 3.0mm, 4.8mm to 7mm
• 33 lb. axial cable retention (150N)

Applications

• FTTH
  Outdoor Areas
  Harsh Environment

Insertion Loss:

• ≤ 0.15dB Typical Singlemode
• ≤ 0.23dB Typical APC
• ≤ 0.50dB Typical Multimode

Return Loss:

• Ultra (UPC) ≤ -55dB
• Angle (APC) ≤ -65dB

Durabilty:

• < 0.2dB change, 100 mating cycles

Temperature:

• <0.3dB change, -40 to +85°C

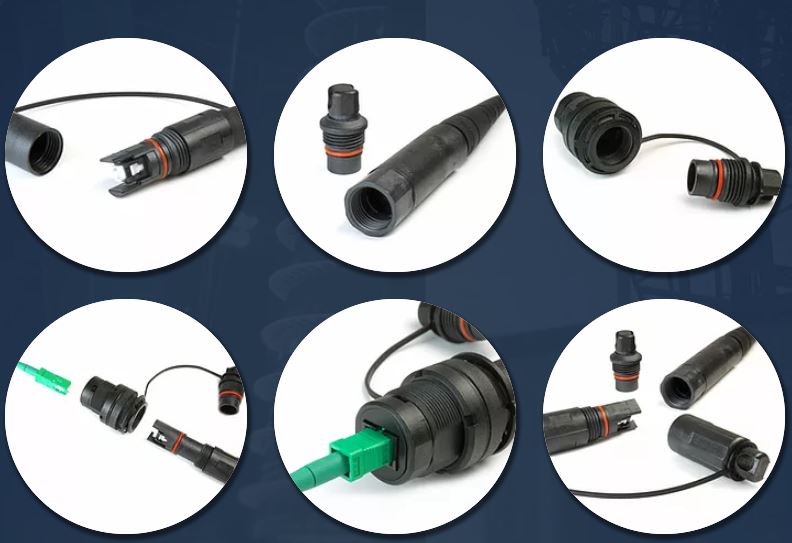

H fiber Optic Connectors 2>
