What Is JW3223 Optical Power Meter&VFL price and specification

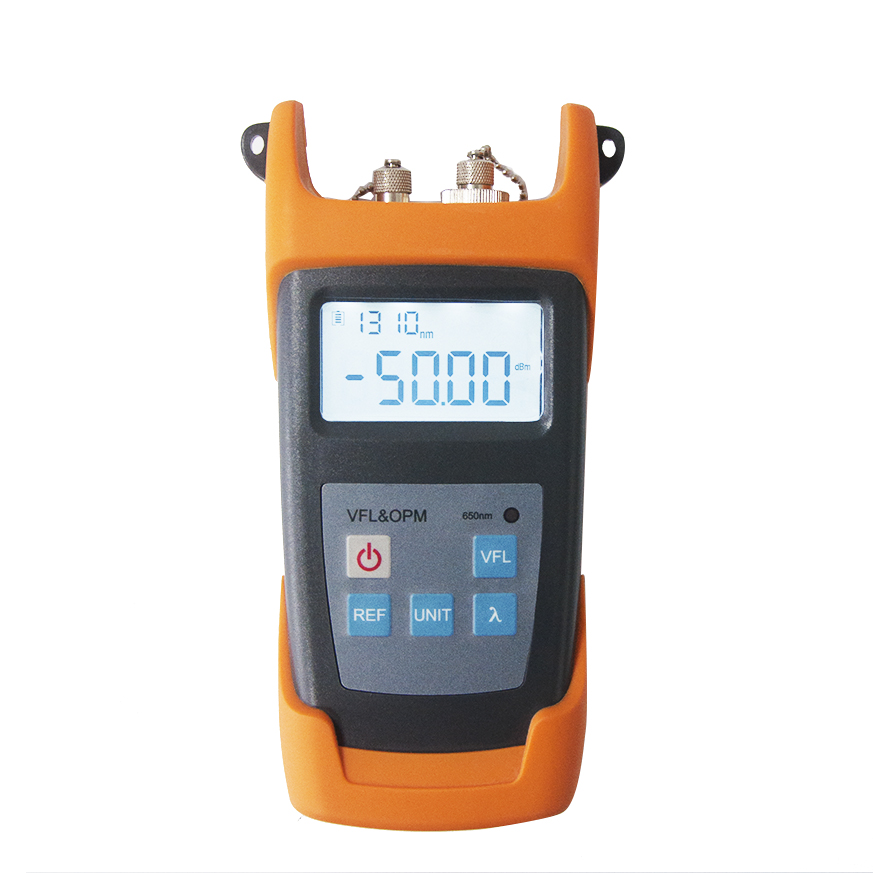

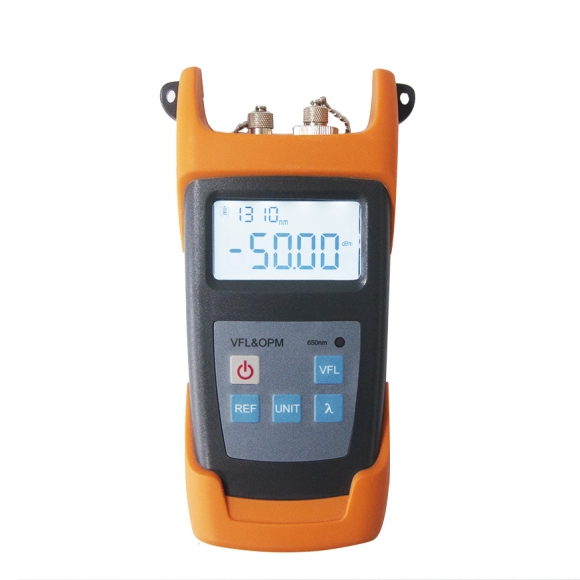

JW3223 Optical Power Meter&VFL
Features
* Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.
* OPEM3223 VFL Power Meter is an ideal tester used in quickly mechanical splicing and FTTx networks.

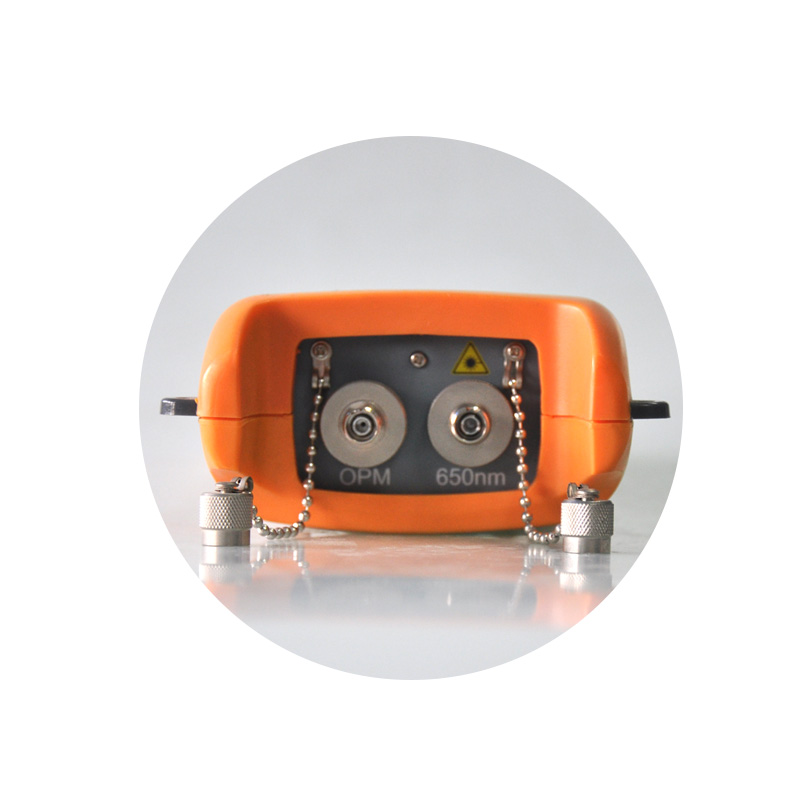

* Optical Port: FC, SC interchangeable supports various optical connectors.
Specifications
Model | JW3223 |
Operating wavelength(Power Meter Module) | 1310， 1490， 1550， 850， 1300， 1625 |
Detector Type | InGaAs |
Out put power(VFL module) | 1mW or 10mW |
Power Measurement Range | -70-+3dBm / -50-+26dBm |
Uncertainty | ±0.5dB |
Resolution | 0.01 |
Operation temperature | -10-+60 ℃ |
Storage Temperature | -25-+70℃ |
Auto-off function | Yes, Auto-off after 10minutes idle time |
Battery Life @ OPM | 180 hours |
Battery Life @ VFL | 60 hours |
Power Supply | 3pcs AA Batteries |
Weight | 700g (including batteries) |
Size | 192*102*50 |
Standard Packages
MODEL | INCLUDES |
All JW3223 Models | VFL Power Meter, 3pcs alkaline batteries, User Manual and Soft carrying case. |
