FC Fiber Optic Connector

FC Fiber Optic Connector Kit is a screw type connection.FC connector is designed with cylindrical metal coupling nut with keyed sleeves, FC connector use 2.5mm ceramic ferrule and FC ferrule are with pull-proof mechanism for good durability.FC was one of the most popular singlemode connectors for many years. It also uses a 2.5 mm ferrule, but some of the early ones use ceramic inside stainless steel ferrules. It screws on firmly, but you must make sure you have the key aligned in the slot properly before tightening. It’s been mostly replaced by SCs and LCs.

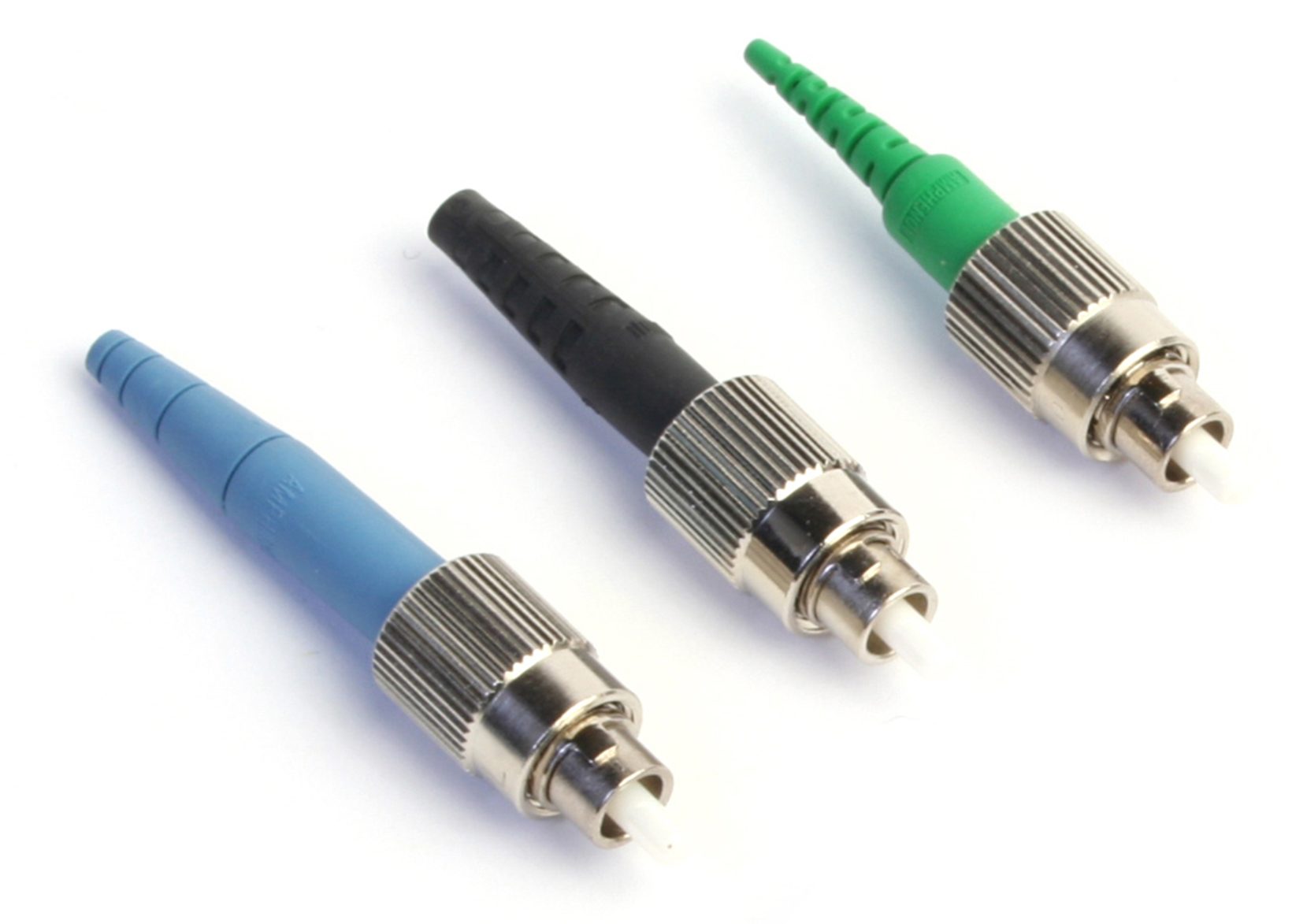

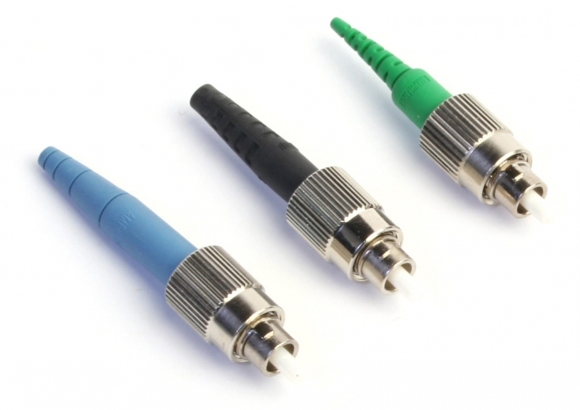

FC Fiber Optic Connectors Kit

The FC/PC connector incorporates a Physical Contact (PC) curved polished fiber end face that greatly reduces back reflection over the regular FC connector with flat endface ferrule.

FC/PC connector is available in both singlemode and multimode versions, and is fully intermateable with NTT-FC products. Both singlemode and multimode versions come with a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end. These endface types allow for faster polishing, and low back reflection and optical loss* ,while ensuring maximum repeatability.

Availability of FC Fiber Optic Connector

Housing kits without ferrule are available.
FC/PC FC/UPC and FC/APC are available.
single mode FC connector & multimode FC connector available
Simplex FC connector & duplex FC connector available

FC Fiber Optic Connectors 3.0mm 2.0mm 0.9mm Boot size

FC connector drawing

FC connector drawing

FC connector features

Low insertion loss and back reflection loss
Ferrule end surface predomed
Precision anti-rotation key
Nickel plated brass body
Boots in a variety of colors
Free-floating ceramic ferrule
Telcordia style boots
FC connector specification

SPECIFICATIONS
	Single mode	Multimode
Insertion Loss	≤0.20dB	≤0.25dB
Return Loss	≥55 dB
Durability	<0.1 dB typical change, 500 matings
Operating Temperature	-40 to + 85°C	-40 to + 85°C
Ferrule Hole Sizes	125.0+1/-0um, Concentricity: ≤1.0um	125um, Concentricity: 1≤3um
	125.3+1/-0um, Concentricity: ≤1.0um	127um, Concentricity: 1≤3um
	125.5+1/-0um, Concentricity: ≤1.0um	128um, Concentricity: 1≤3um
	126.0+1/-0um, Concentricity: ≤1.0um

Applications

• CATV
• Metro Applications
• Active device termination
• Test equipment
• Wide Area Networks (WANs)
• Telecommunication networks
• Local Area Networks (LANs)
• Data processing networks
• Premise installations
• Industrial and Military

Features

• Compliance with Telcordia, ANSI, IEC, TIA/EIA, NTT and JIS specifications*
• Low insertion loss & back reflection*
• One-piece construction & pull-proof design
• Free-floating ceramic ferrule
• Precision anti-rotation key
• UL-rated plastic housing and boots in a variety of colors
• Telcordia style boots
• Corrosion resistant body (Nickel Plated Brass)

FC connectors are generally constructed with a metal housing and screw-thread coupling mechanism, which helps ensure a strong and reliable connection, no matter what the application. It is better to use in high-vibration environments.

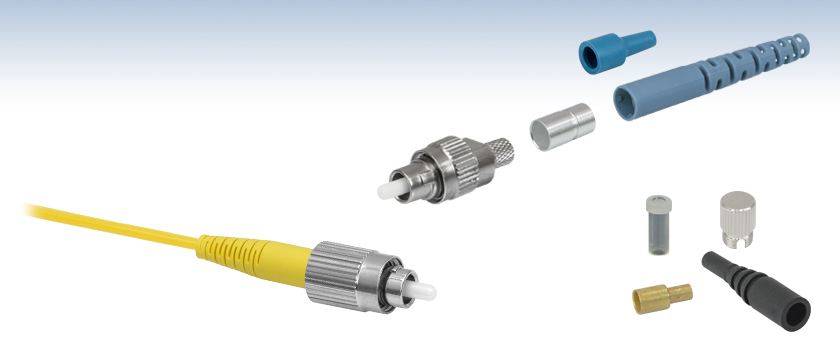

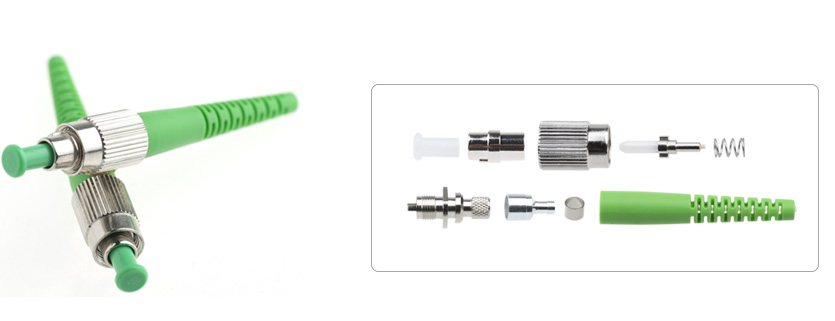

FC Fiber Optic Connector Kit 2

Excellent fiber performance

High quality ceramic ferrules, and fiber end face precision connection via professional polishing technology, to ensure low insertion loss and high stability.

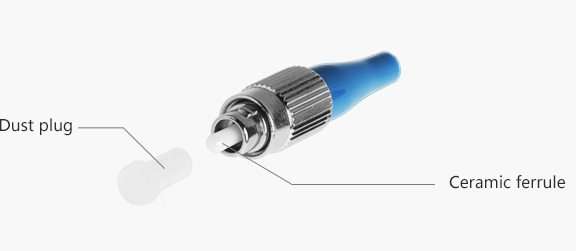

FC Connector Dust Plug and Ceramic Ferrule

Compliance with RoHS

Every connector will go through a variety of tests to ensure quality. Our FC connectors conform to RoHS environmental requirements.

FC connectors conform to RoHS environmental requirements

Simplex, duplex, SM & MM available

The FC connectors are available in fixed key and adjustable key styles, with boots available in a variety of sizes and colors， available in both MM and SM versions with PC and APC polishing method.

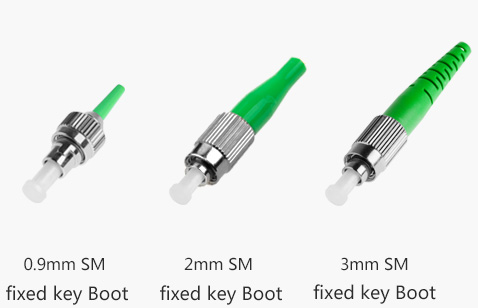

FC / APC

FC connectors APC UPC Fix Key Boot

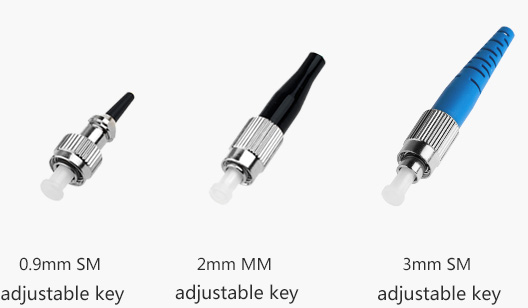

FC / PC

FC connectors APC UPC adjustable Key Boot 0.9mm 2.0mm 3.0mm
