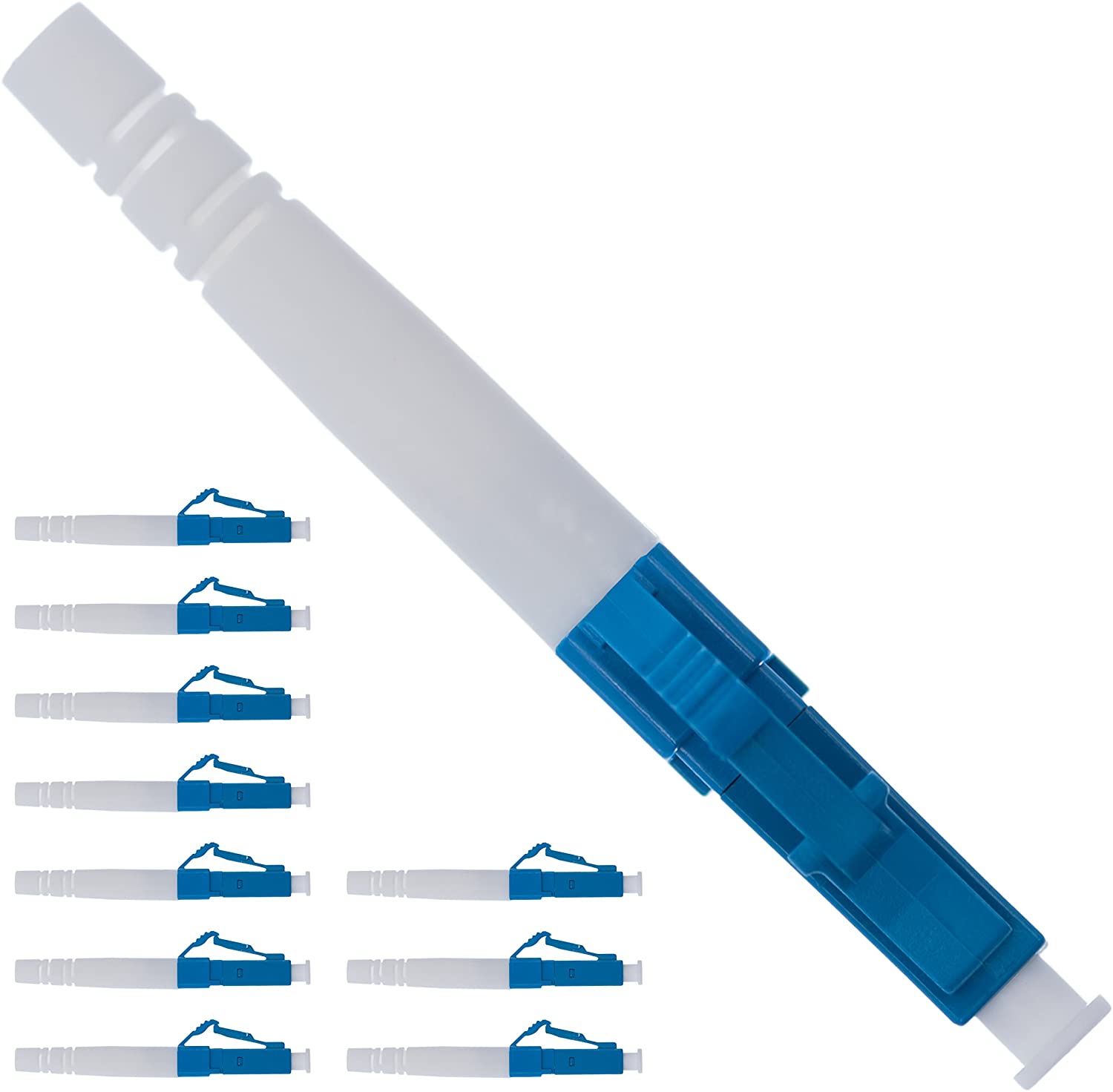

LC Fiber Optic Connector LC stands for Lucent Connector. LC connector is push and pull type. The LC Connector uses a 1.25 mm ferrule, half the size of the ST.An optical fiber connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers, so the light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers.
There are solid reasons that the LC is the preferred connector for high-performance network. From the appearance, LC connect is like a mini size of SC connector. LC connector borrows split-sleeve construction and a cylindrical ferrule (usually ceramic) from SC connector. LC connector has a push-and-latch design providing pull-proof stability in system rack mounts. The picture on the right shows the appearance of SC connector and LC connector.
LC Simplex Connector is specially designed to provide low insertion loss and back reflection or misalignment of the fibers. along with high precision and mechanical stability. Its insertion loss is less than 0.3dB and return loss is up to 60dB .

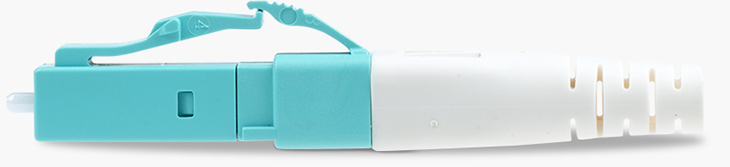

LC Fiber Optic ConnectorLow Cost and Various Boot Type LC Fiber Optic Connector
This LC Simplex Connector come with boots suitable for 1.6-3.0mm fiber cable diameters. and various boot type can be choose.
0.9mm Mini Boot
1.2mm Boot
Short Boot
Long Boot

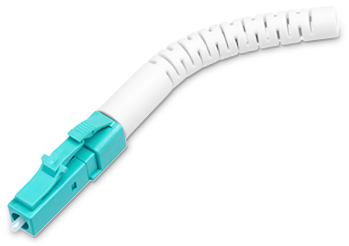

Bendable Boot
Low Environmental Sensitivity

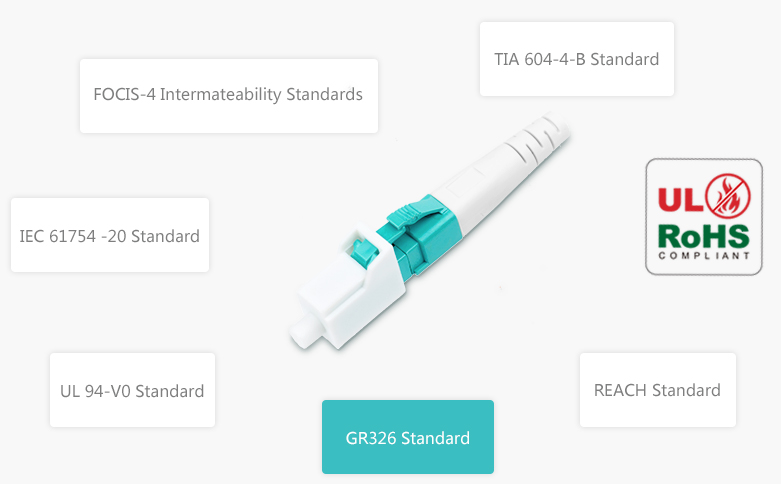

This LC fiber optic connector kit comply with IEC 61754-20 and TIA 604-4-B, FOCIS-4 intermateability standards and conform to RoHS environmental requirements and compatible with GR326, REACH, UL 94-V0 standard.
Availability of LC connector
Housing kits without ferrule are available.
LC/PC and LC/APC are available.
single mode LC connector & multimode LC connector available
Simplex LC connector & duplex LC connector available

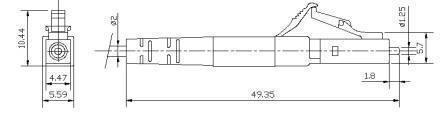

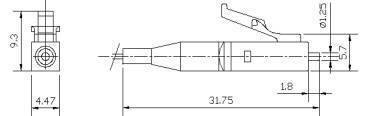

LC connector drawing
LC connector features
Low insertion loss and back reflection loss
Half the dimension of a regular connectors
Push & pull mechanism like RJ connectors
High precision alignment
Compact, pull-proof design
Complies with industry standards
Detachable clips for simplex as well as duplex connectors
Behind-the-Wall style short connector
LC connector specification
| LC connectors SPECIFICATIONS | ||
| Single mode | Multimode | |
| Insertion Loss | <0.20dB | <0.25dB |
| Return Loss | >55 dB (PC) >65 dB (APC) | |
| Durability | <0.20 dB typical change, 1000 matings | |
| Operating Temperature | -40 to + 85C | -40 to + 85C |
LC connector application
Premise installations
Gigabit Ethernet
Active device termination
Telecommunication networks
Video
Multimedia
