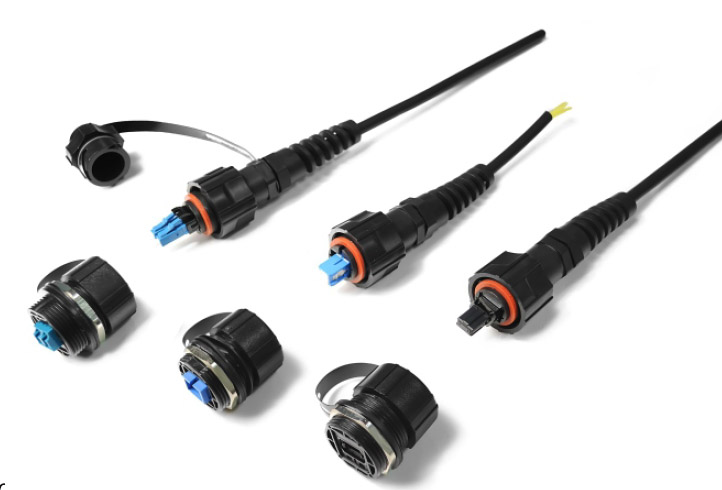

CPRI ODVR MPO FTTA Cable Assembly

The ODVA MPO FTTA Cable Assembly

, together with the support optical cable, are becoming the standard interface specified in 3G, 4G ,5G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications FTTA. The product however, is not limited to the above applications. The ODVA MPO cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP67. They are well suited for Industrial and Aerospace and Defense

Multi-purpose Outdoor

For connection between distribution box and RRH

Deployment in Remote Radio Head cell tower applications

Applications&Features
● Standard MPO connector, well connected with standard MPO adaptor
● Available Single mode and Multimode
● IP67 protection, salt-mist proof, humidity proof, dust proof
● Aluminum housing, compact design
● Broad temperature range and wide range of indoor and outdoor cables

● Easy Operation, reliable and cost-effective Installation Specifications

Cost effective solution for in house termination

IP67 water and dust protection

Wide range of operational temperature for outside plant -40 to +85°C

Different cable diameter can be available

Intermatable to other Industrial LC adaptor per IEC 61076-3-106

No need special tools for assembly

What is FTTA

Fiber-to-the-antenna (FTTA) is a wireless site architecture where optical fiber is run all the way up the tower to replace much of what was traditionally completed with heavier coax cabling. Important components such as remote radio units (RRUs) are also positioned at the top of the tower instead of at the base location.

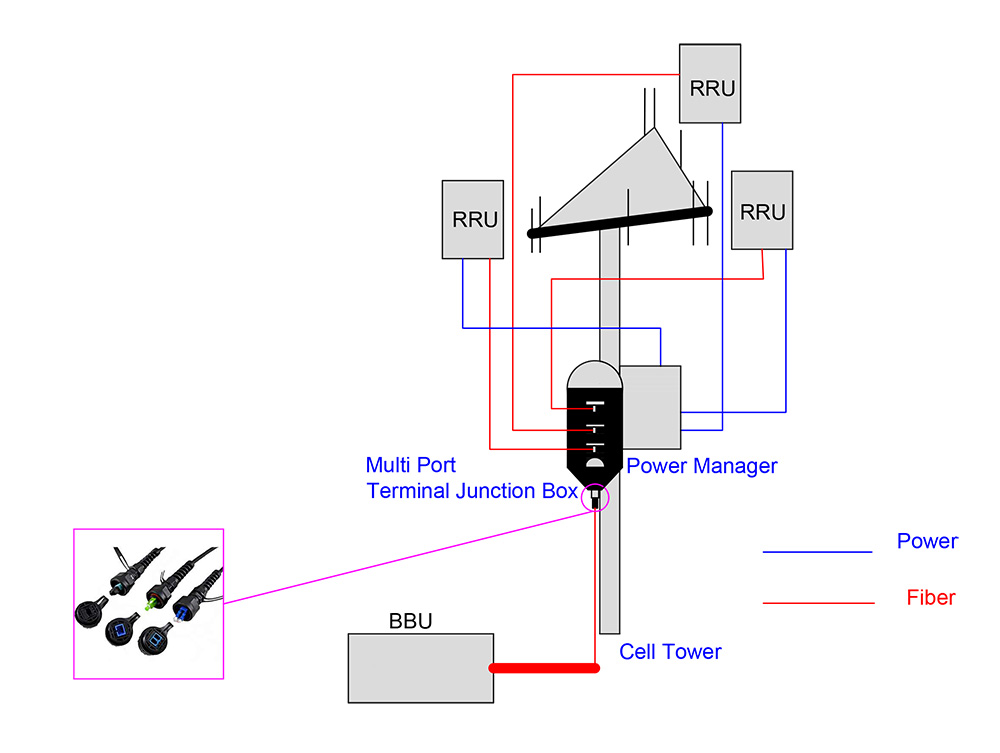

In a FTTA configuration, a baseband unit (BBU) situated near the bottom of the tower is connected via a fiber optic feeder and runs to a remote radio head (RRH) positioned near the antennas at the top of the tower. The RRH converts the digital signals to analog, and the short span between RRH and antenna is still completed using traditional coax cabling.

The Common Public Radio Interface (CPRI) standard

defines an interface between Radio Equipment Control (REC) and Radio Equipment (RE). Oftentimes, CPRI links are used to carry data between cell sites and base stations.The purpose of CPRI is to allow replacement of a copper or coax cable connection between a radio transceiver (used example for mobile-telephone communication and typically located in a tower) and a base station (typically located at the ground nearby), so the connection can be made to a remote and more convenient location.This connection (often referred to as the Fronthaul network) can be a fiber to an installation where multiple remote base stations may be served. This fiber supports multi mode communication and doesn’t support single mode communication. The fiber end is connected with the transceiver device called Small form-factor pluggable transceiver.
