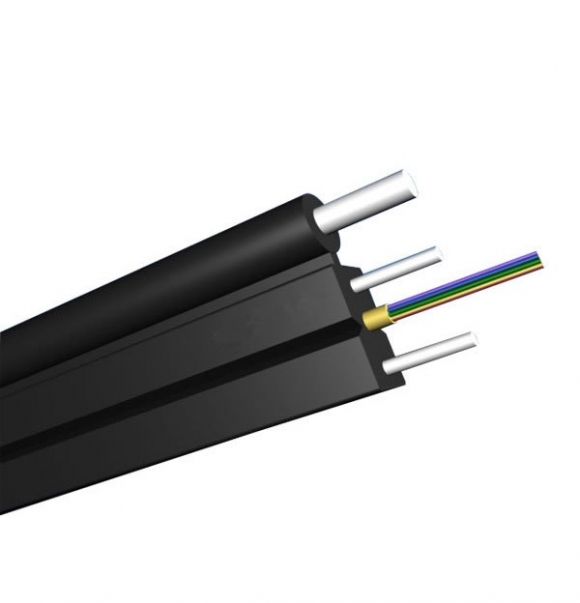

FTTH 12 Core Drop Fiber Optic Cable
12 Core Drop Fiber Optic Cable FTTH (Fiber to the home) drop cable, the outer skin is generally black and white, the diameter is relatively small, and the flexibility is good; the cross section is 8-shaped, the reinforcing member is located at the center of the two circles, and the metal or non-metal(KFRP) structure can be used, and the optical fiber is located at the geometric center of the 8-shaped shape. The fiber inside the 12 Core Drop Cable self support is mostly G.657A2 small bending radius fiber, which can be laid at a bending radius of 20mm. It is suitable for entering the house by pipe or distribution openly. The unique 8-shaped structure of the drop cable can realize the field end in the shortest time.
Drop cable, as an important part of FTTH network, forms the final external link between the subscriber and the feeder cable. Choosing the right FTTH drop cable termination or interconnect solution will directly affect network reliability, operational flexibility and the economics of FTTH deployment. So between the two cable termination methods.
FTTH fiber drop cables with FRP, KFRP, metal or non-metal strength members that designed for high-capacity indoor/outdoor FTTH networks.
Technical Parameters of 12 Core Drop Fiber Optic Cable
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage temperature | |||
| （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 12 | 3.0*9.0 | 21.7 | 600 | 200 | 1000 | 300 | 20D | 10D | 40 |
Optical Characteristics | ||||
| Fiber Sort of 12 Core DropCable | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C） | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657（A1、A2 、B3） | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
wiki
What Is FTTH Drop Cable
