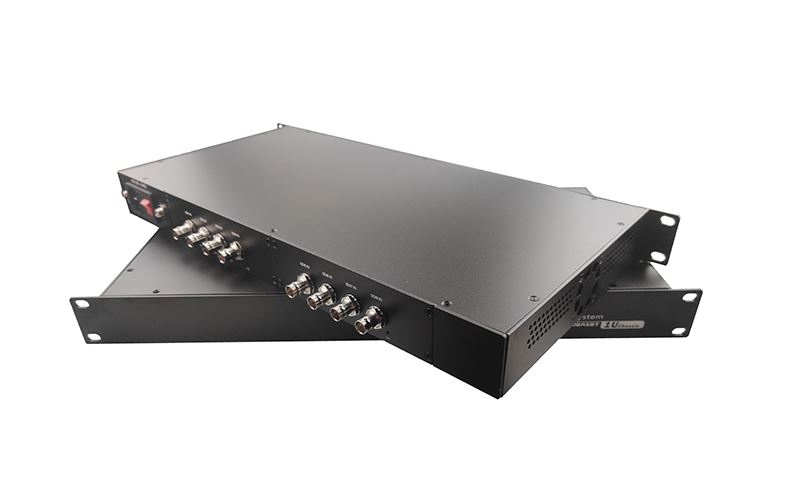

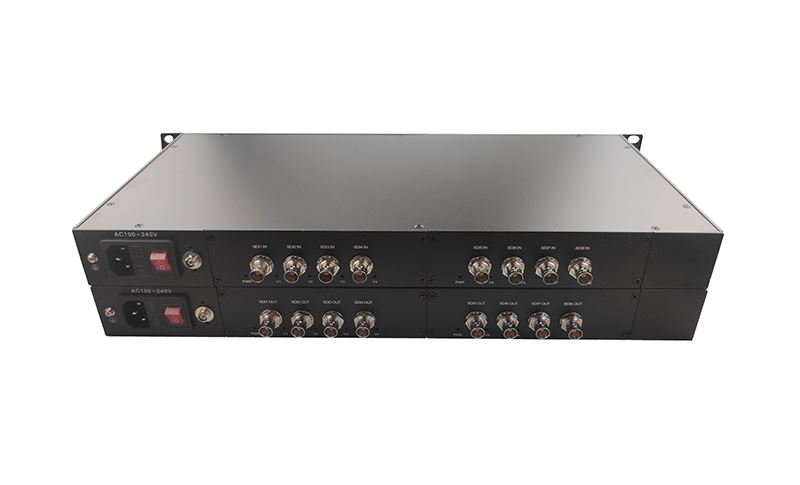

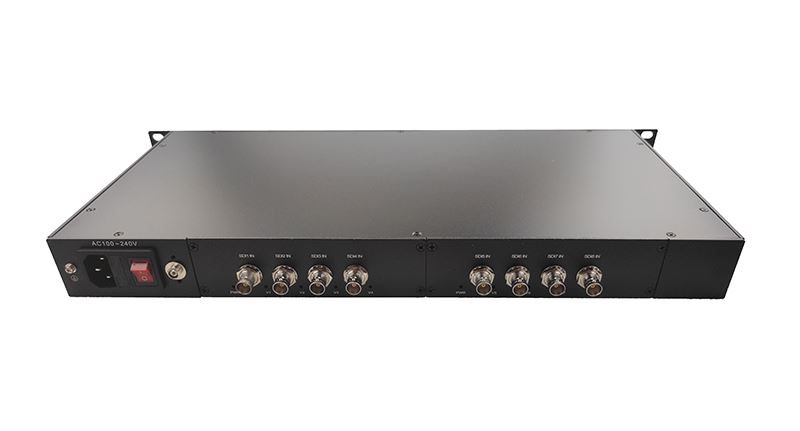

What Is 8 Channels of 3G-SDI Over Fiber Optic Extender 20Km

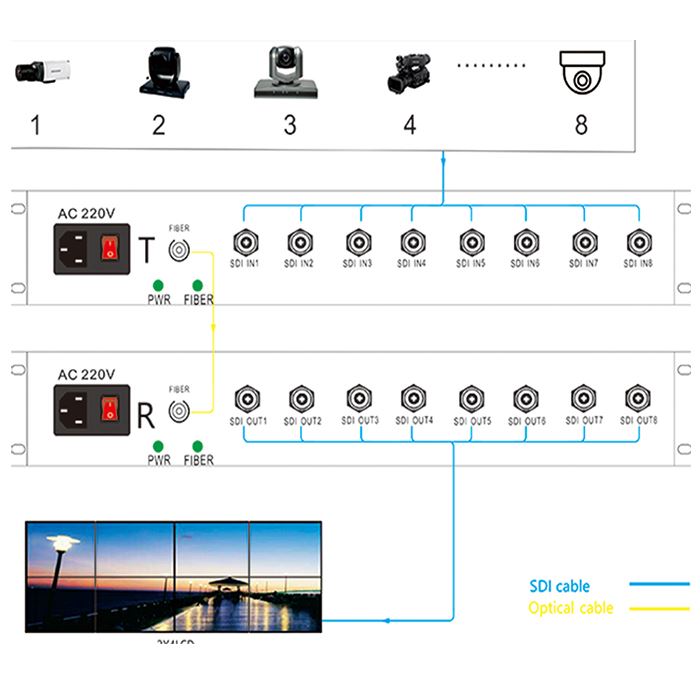

8 Channels of 3G-SDI Over Fiber Optic Extender 20Km Broadcasting 8 Channels of 3G-SDI over single fiber optic media converters, Long working distance 20Km by single fiber optic. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant
Features
1. Extends uncompressed multi-rate 3G-SDI, HD-SDI or SD-SDI video over fiber.
2. Supports SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant.
3. With clock recovery, clock shaping.
4. Pass Pathological (extreme harsh environment) test.
5. Supports embedded digital audio stream.
6. Single-Mode Fiber Support for Distances up to 20 km (40Km/60Km is optional).
7. Real-Time Video Transmission for Exceptional Quality and Resolution.
8. LED Status Provide Rapid Indication of Operating Parameters.
9. No EMI or RFI and no ground loops.
10. Support hot swap, stand alone or rack-mount.
11 Produce according to customers specifications, providing OEM.
Technical Parameters
| Optical | Wavelength | 1310nm&1470nm-1610nm |
| Fiber Type | Single mode, single fiber(default) | |
| Distance | 0-20km(40km/60km optional) | |
| Fiber Interface | FC(default) LC/SC/ ST (optional) | |
| SDI Video | Video Interface Number | 8 |
| Physical Interface | BNC | |
| Max Resolution | 1920 x 1080 @ 60Hz | |
| Video Input and Output Impedance | 75Ω (unbalanced) | |
| Video Input/out put Voltage | Typical:1Vpp,Min 0.5Vpp, Max 1.5Vpp | |
| Video Bits Rate | Max 2.97Gb/s | |
| Video SDI standard | 270Mbps(SD-SDI),1.485Gbps/M(HD-SDI),SMPTE425M3Gb/s Mapping(3G-SDI),SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Electrical & Mechanical | Input Power Requirements | DC 5V |
| Power Adapter | AC 100V-240V | |
| Dimensions | 48.3*22*4.4cm | |
| Packing | 52.4*34.6*18.1cm | |
| Weight | 5kg | |
| Environmental | Operating temperature | -20°C - +75°C |
| Storage temperature | -40°C - +85°C | |
| Working humidity | 0% - 95% (non-condensing) | |
| MTBF | >100,000 hours |
Package include:
1x 8 3G-SDI Transmitter
1x 8 3G-SDI Receiver
2x Power adapter (US/EU/UK/AU optional)
1x Manual.
