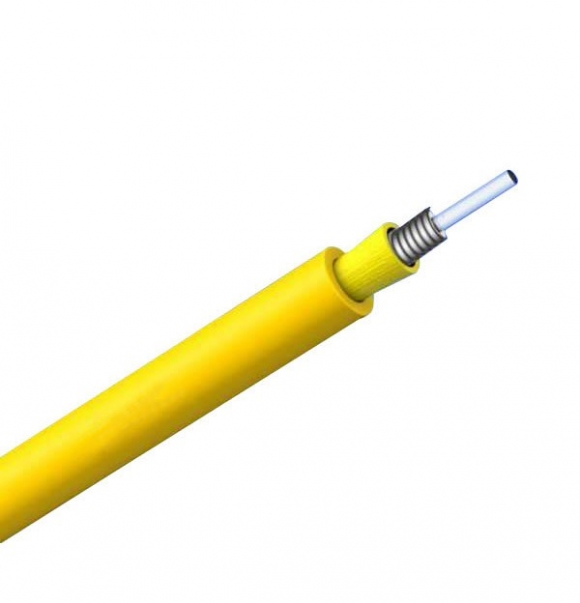

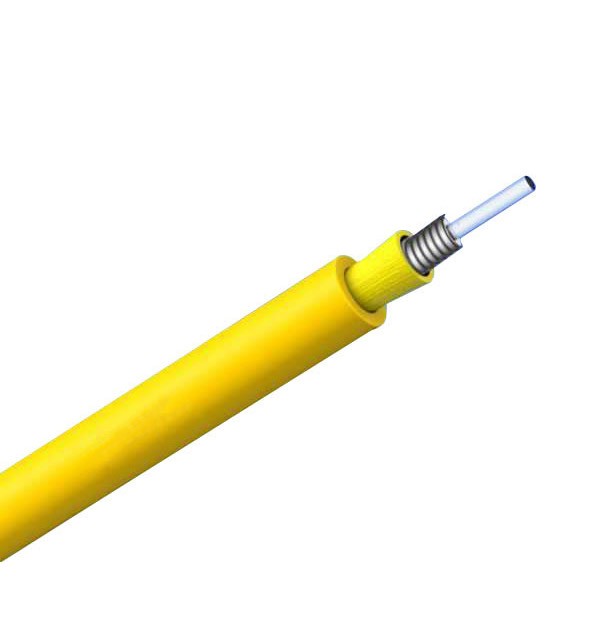

What is Single-Fiber Indoor Armored Fiber Optic Cable

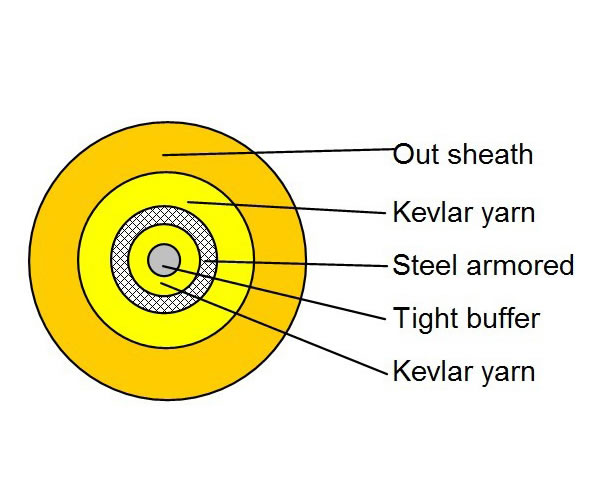

Single-Fiber cover with Tight buffer and steel armored cover with kevlar Yarn with PVC or LSZH outer sheath that use in indoor distributional and universal Patch cord and pigtails .Armored Fiber Optic Cable Steel armored flexible tube.increase the cable’s twist resistance.
Armored Fiber Optic Cable
Application:1,Adopted to indoor distribution.2,pigtail of communication equipment
3,for communication equipment servrd
4,be installed conveniently and perated simplyCharacteristics:1,to indoor distribution.
2,As pigtail of communication equipment
3,for communication equipment servrd
4,Can be installed conveniently and perated simply
Single-Fiber Indoor Armored Fiber Optic CableApplication:
☆.Adopted to indoor distribution..
☆.As pigtail of communication equipment.
☆.Suitable for communication equipment served.
☆.Can be installed conveniently and perated simply.
Characteristics:
☆.0.6 tight buffer fiber,
☆.Hight strength kevlar yarn member.
☆.Steel armored flexble tube.increase the cable’s twist resistance.
Technical Parameters:
| Out sheath Diameter | Tight buffer Diameter | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage temperature | |||
| （MM) | （MM) | （KG) | short term | long term | short term | long term | short term | long term | （℃） |
| 2.0 | 0.6 | 15.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
| 2.4 | 0.6 | 16.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
| 2.8 | 0.6 | 18.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
| 3.0 | 0.6 | 18.00 | 1000 | 300 | 1000 | 500 | 20D | 10D | -20+60 |
| Optical Characteristics: | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C） | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut-off wavelength shifted | |||
| G.657（A1、A2 、B3） | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
