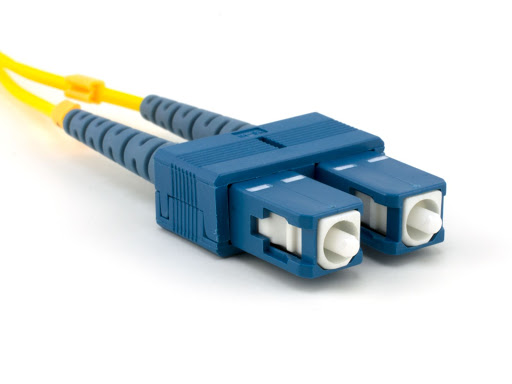

What Is SC Duplex Connector
The SC duplex fiber optic connector actually consists of two simple SC connectors that are connected together by a SC Duplex Clip has a durable plastic body with a square front profile. Its compact design is ideal for telecommunications closets, premise wiring and other high density applications. stands for Subscriber Connector. SC connector offers excellent packing density, and its push-pull design resists fiber end face contact damage.SC connector are inexpensive, trouble-free, and robust. SC connectors give precise positioning via their ceramic ferrules. The square, snap-in connector latches with a simple push-pull motion and is keyed. SC optical connector has a 2.5mm ferrule and molded housing for shielding. it has a 1000 mating cycles and have an insertion loss of 0.25 dB.
SC Duplex Connector

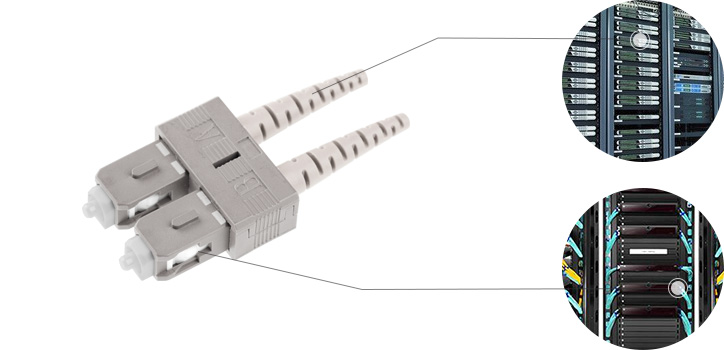

The SC duplex fiber optic connector has a durable plastic body with a square front profile. Its compact design is ideal for telecommunications closets, premise wiring and other high density applications.
Operating temperature：-40-85℃

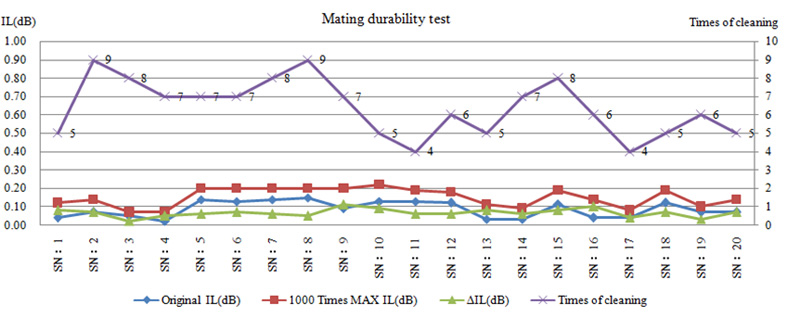

Insert-pull test：500-1000 times
Multiple styles available.

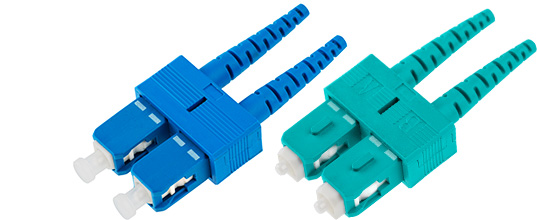

SC duplex fiber optic connectors are available in a variety of colors and boots.
2.0mm Aqua
2.0mm Beige
2.0mm Violet
3.0mm Green
0.9mm Blue
Compliance with international standards
The SC dual-core fiber optic connector can meet Telcordia GR 326 or IEC 61300-2; it is compliant with RoHS, IEC61754-4, IEC 61753-1 and other standards.
| Item | SC Duplex Optical Fiber | |||
| Mode | SM | MM | ||
| Suitable fiber | 9/125um | 50/125um,62.5/125um | ||
| Ceramic ferrule spec | 125.0-125.5um | 126-129um | ||
| Ceramic ferrule concentricity | ≤1.0um | ≤0.5um | ≤0.3um | ≤3.0um |
| Insertion loss | ≤0.30dB | ≤0.20dB | ≤0.15dB | ≤0.30dB |
| Return loss | ≥50dB(UPC)， ≥60dB(APC) | ≥30dB | ||
| Insert-pull test | ＞500 times，＜0.3dB | |||
| Operating temperature | -40℃-+85℃ | |||
SC Duplex Clip
