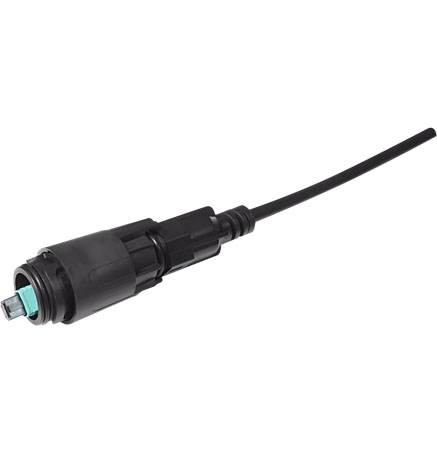

ODVA (MPO & MTP) Outdoor Fiber Optic Cable Assemblies

ODVA (MPO & MTP) Outdoor Fiber Optic Cable Assemblies

ODVA (MPO & MTP) Outdoor Fiber Optic Cable Assemblies Specification IP37/IP68 outdoor waterproof IP-Series ODVA MPO MTP patch cable Assembly for Multi-purpose Outdoor , For connection between distribution ,Deployment in Remote Radio Head cell towerbox and RRH

ODVA (MPO & MTP) Outdoor Fiber Optic Cable Assemblies

Application ODVA (MPO & MTP) Outdoor Fiber Optic Cable Assemblies

1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower

Features

1. Factory terminated (tested cables) or Field uninstallable version available .
2. Low insertion loss and added loss.
3. Height of
4. IP67 water, dust proof and corrosion resistant
5. Plug has tolerance free design, free floating on Z-axis.
6. The material in the jumper cable are all-weather and UV-resistant. 7.Mechanical performance: IEC 61754-7 standard.
7. RoHS and REACH materials compliant.
8. 100% Compatible with FullAXS Connectors and has site technical features.

Dimensional Diagrams of ODVA (MPO & MTP) Outdoor Fiber Optic Cable Assemblies

1. IPFX(MPO&MTP) Outdoor Cable Assemblies

IPFX ODVA (MPO & MTP) Outdoor Fiber Optic Cable Assemblies

2. IPFX(MPO&MTP) Outdoor Cable Assemblies

ODVA (MPO & MTP) Outdoor Fiber Optic Cable Assemblies

Patch cord versions

Jumper tolerance requirement
Overall length (L) （M）	length of tolerance（CM）
0＜L≤20	+10/-0
20＜L≤40	+15/-0
L＞40	+0.5%L/-0

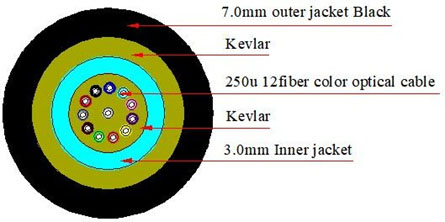

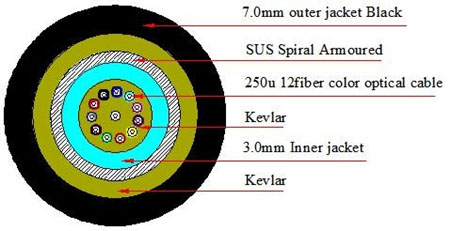

Cable Structure

ODVA (MPO & MTP) Outdoor Fiber Optic Cable Assemblies

Cable Parameters
Cable StructureCable Parameters MPO&MTP ptical Characteristics LC/SC/FC/ST Optical Characteristics LC/SC/FC/ST End-Face Geometry MPO&MTP End-Face Geometry End-Face Qualty (SM) End-Face Qualty (MM) Mechanical Characteristics

Cable Count	Out sheath Diameter （MM)	Weight （KG)	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature （℃）
			short term	long term	short term	long term	short term	long term
8/12/24	7.0±0.3	35	600	250	800	300	20D	10D	-20 -- +70
Cable Count	Out sheath Diameter （MM)	Weight （KG)	Minimum allowable Tensile Strength (N)		minimum allowable Crush Load （N/100mm)		Minimum Bending Radius (MM)		Storage temperature （℃）
			short term	long term	short term	long term	short term	long term
8/12/24	7.0±0.3	45	1000	600	3000	1000	20D	10D	-20 -- +70
Item	Parameter				Reference
	Single mode		Multimode
	Standard	Elite	Standard	Elite
Insertion loss	Typical≤0.30dB Max≤0.75dB	Typical≤0.15dB Max≤0.35dB	Typical≤0.50dB Max≤0.25dB	Typical≤0.10dB Max≤0.35dB	IEC 61300-3-34
Return loss	≥ 50dB (PC) ≥ 60dB (APC)	≥ 55dB (PC) ≥ 65dB (APC)	≥30dB(PC)	≥30dB(PC)	IEC 61300-3-6
Item	Parameter		Reference
	Single mode	Multimode
Insertion loss	Typical value≤0.15dB;Maximum≤0.30	Typical value≤0.15dB;Maximum≤0.30	IEC 61300-3-34
Return loss	≥ 60dB (APC); ≥ 50dB (UPC)	≥30dB (UPC)	IEC 61300-3-6
Item	UPC (Ref: IEC 61755-3-1)	APC (Ref: IEC 61755-3-2)
Radius of curvature (mm)	10 to 25	5 to 12
Fiber height (nm)	-100 to 100	-100 to 100
Apex offset (um)	0 to 50	0 to 50
APC angle (°)	/	8° ±0.2°
Key error (°)	/	0.2° max
Ferrule parameter			IEC-61300–3-30
			Minimum	Maximum
ROC	ROC-X:		2000mm	∞
	ROC-Y:		50mm	∞
Angle	Angle-X:		-0.2°	0.2°
	Angle-Y:	PC	-0.2°	0.2°
		APC	7.85°	8.15°
Fiber Hight:			1000nm	3500nm
Max.DH.All:			-300nm	300nm
DH.Adj:			-300nm	300nm
DH.Ave Fiber:			-300nm	300nm
Core Dip:	MM		-200nm	300nm
	SM		N/A	N/A
Ferrule height			7.9mm	8.05mm
Zone	Range (um)	Scratches	Defects	Reference
A: Core	0 to 25	None	None	IEC 61300-3-35:2015
B: Cladding	25 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None
Zone	Range (um)	Scratches	Defects	Reference
A: Core	0 to 65	None	None	IEC 61300-3-35:2015
B: Cladding	65 to 115	None	None
C: Adhesive	115 to 135	None	None
D: Contact	135 to 250	None	None
E: Rest of ferrule		None	None
Test	Conditions	Reference
Endurance	500 matings	IEC 61300-2-2
Vibration	Frequency: 10 to 55Hz, Amplitude: 0.75mm	IEC 61300-2-1
Cable retention	400N (main cable); 50N (connector part)	IEC 61300-2-4
Strength of coupling mechanism	80N for 2 to 3mm cable	IEC 61300-2-6
Cable torsion	15N for 2 to 3mm cable	IEC 61300-2-5
Fall	10 drops, 1m drop height	IEC 61300-2-12
Static lateral load	1N for 1h (main cable); 0.2N for 5min (ranch part)	IEC 61300-2-42
Cold	-25°C, 96h duration	IEC 61300-2-17
Dry heat	+70°C, 96h duration	IEC 61300-2-18
Change of temperature	-25°C to +70°C, 12 cycles	IEC 61300-2-22
Humidity	+40°C at 93%, 96h duration	IEC 61300-2-19
