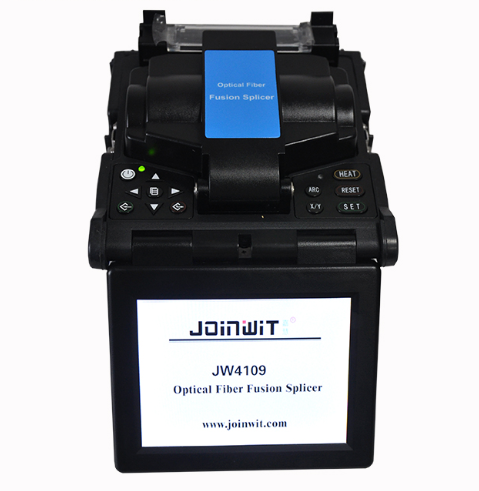

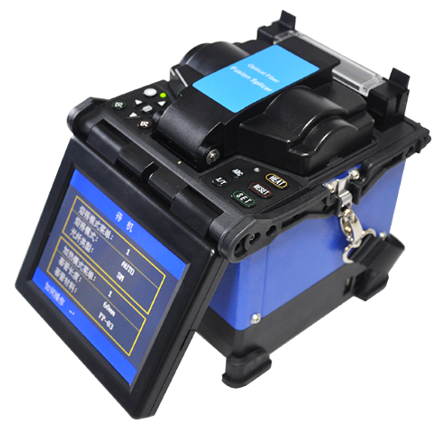

What Is JW4109 High Precision Fusion Splicer price and specification
The Fusion splicer is designed to splice many types of fiber by using core diameter aiming rationale, its shape is compact, light weight, which is suitable for field work. Operation is simple, fusion speed is high, and fusion loss is small.
Specifications：
Model |
|
Splicing | SM, MM, DS, NZDS |
Splicing | 0.02dB(SM)，0.01dB(MM)，0.04dB(DS)， |
Return | 60dB |
Splicing |
|
Fiber | Core to Core Alignment by PAS technology |
Applicable | Cable |
Splicing | ≤9s |
Heat | ≤30s |
Cleaved | 8-16mm |
Fiber |
|
View | 5 inch digital high-quality LCD screen |
Tension | Standard |
Heat Shrinkable | 60mm, 40mm and serials heat Shrinkable Sleeve |
Battery | 7200mAh, |
Battery | Cycling charge 300-500 times, easy to replace |
Electrodes | 3000, |
Power | ≤20W |
Interface | USB |
Construction | Built in high brightness, wide range of lights, |
Power | Built |
Operating | 0-5000m above sea level, Temperature: -10-60℃, |
Weight | 1.98 KG |
Dimension | 135mm(L)x158mm(W)x155mm(H) |
