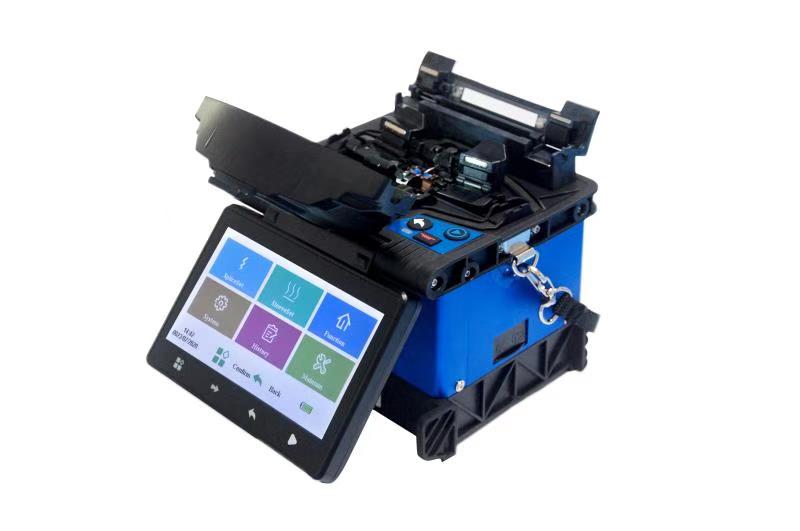

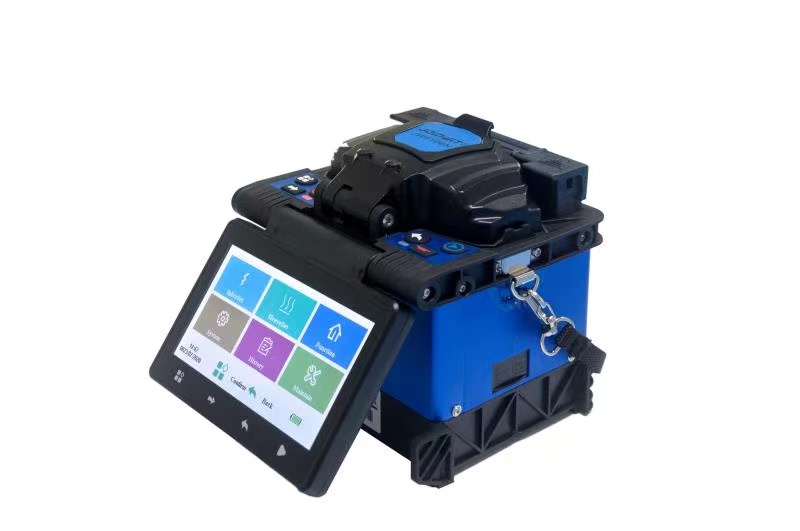

JW4106N Optical Fusion Splicer

Model

JW4106N

Applicable Optical Fibers

SM(G.652)，MM(G.651)，NZ(G.655)，DS(G.653)，
COS(G.654),BUI(G.657)，EDF

Applicable
Core Type

Single
Core

Applicable Fiber Diameter

Cladding
diameter 80-150um，Coating diameter 100- 1000um

Splicing
Mode

Pre-store

8
groups Customize: 792 groups

Splicing
Results Recording

10000-group
splicing records & splicing images recording

Splicing Speed

9
sec (Standard Mode）7s（Fast Mode）

Alignment

Core
to core alignment, Coat alignment

Splicing Loss

Average
Splicing Loss

0.02dB(SM)，0.01dB(MM)，0.04dB(DS)，0.04dB(NZ)

Return Loss

≧60dB

Splicing
Loss Estimation

Exist

Power Supply

Input
220V±10%、1.4A，50/60Hz output 13.5V/5A

Battery

11.1V
Lithium battery，typically splicing/heating 260 times，charging time 3 h， 500 times rechargeable, 5200mAh

Operation Environment

Altitudes
0-5000m,relative humidity 0-95%（No
condensation）， temperature -20℃-55℃，maximum
wind speed15m/s

Storage
Conditions

Relative
humidity 0-95% (No condensation), temperature -40℃-80℃

Corrosiveness Resistance

The
main device, components and their materials meet the requirements of GB/T
2423.54-2005 and are not vulnerable to the corrosiveness of fluid pollution.

Weight

1.19kg（Without battery)，1.53kg(With
battery)

Dimension

146Dx131Wx152H(mm)

Heating
Shrinkable Tub

Applicable Diameter

2mm,3mm,4mm,6mm

Applicable
Length

60mm，50mm，45mm，40mm，25mm，20mm

Heating Time

2mm
tube（10-15S adjustable），4mm tube（14-19S
adjustable）， 6mm tube（17-23S adjustable）

Heating
Temperature

10-260℃（Customizable）

Automatic Heating

Auto
fiber recognition and heating after covered

Others

Tension Test
