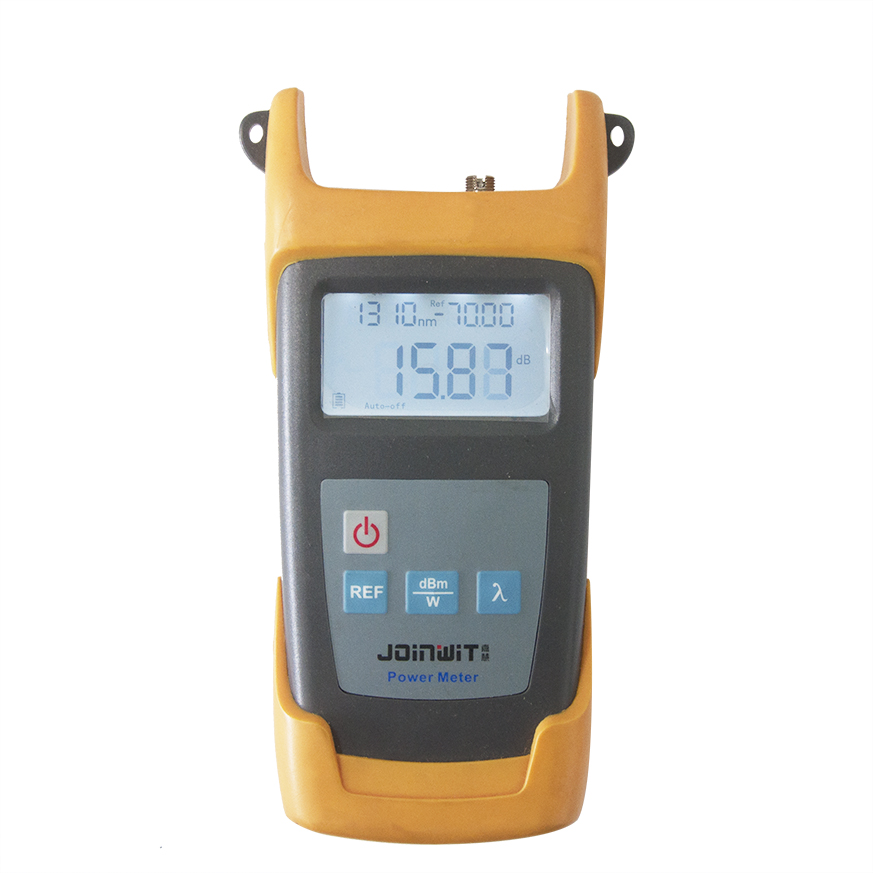

What Is JW3211 Handheld Optical Power Meter price and specification
Features
l Wide dynamic measurement range (up to 80dB)
l Reference power level storage(Ref Setting)
l User self-calibration function
l Comfortable LCD display and backlight LCD display supports
night operation.
l Power measurements in dBm or mw and insertion loss in dB
l 10 minutes Auto-off function can be activated or deactivated.
l AA alkaline batteries can last more than 140 hours, AC adaptor also
available
l Low battery indication
Specifications
MODEL | JW3211A | JW3211C |
Wavelength(nm) | 800-1700nm | |
Detector Type | InGaAs | |
Detector Size | 1.0mm | |
Measurement Range (dBm) | -70-+10 | -50-+30 |
Uncertainty | ±5% | |
Calibrated Wavelength(nm) | 850,1300,1310,1490,1550,1625 | |
Resolution(dB) | 0.01 | |

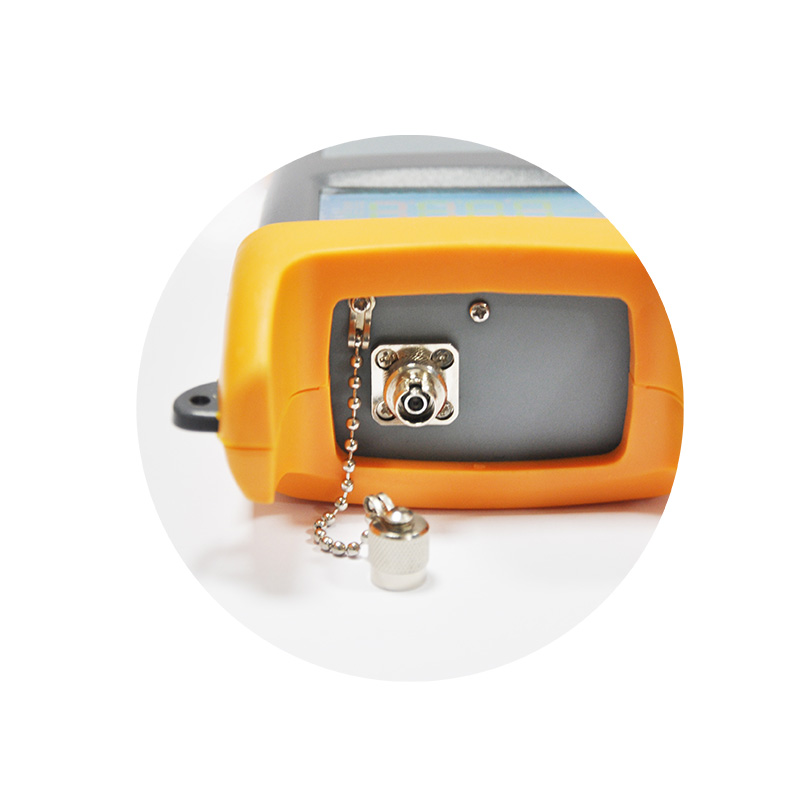

Optical Connector | FC(interchangeable SC,ST) / as well as 2.5mm | |
Power Supply | Alkaline Battery(3 AA 1.5V batteries); AC | |
Battery Operating Time | 140 h with 1.5V Battery(3pcs) | |
| -10 - +60 | |
Storage Temperature(℃) | -25 - +70 | |
Relative Humidity | 0 to 95% (non-condensing) | |
Dimension | 23.5*16*8cm | |
Weight | 0.7kg | |
