Huawei W0PSA5000 Power Module Product Overview
Huawei W0PSA5000 Power Module is 500W AC power module for S6700-24-EI, S6700-48-EI.
S6700 series Huawei switch data center 10 Gigabit switches (hereinafter referred to as S6700) are the next generation of all 10 Gigabit box switches independently developed by Huawei, which can be used for data center 10 Gigabit server access and the core of campus networks
The S6700 Huawei switch is one of the highest-performance box switches in the industry. It also provides up to 24/48 full-line speed 10 Gigabit interfaces, enabling high-density access to 10 Gigabit servers and high-density 10 Gigabit aggregation for campus networks. At the same time, S6700 switches support rich service features, complete security control strategies, and rich QoS features to meet data center scalability, reliability, manageability, and security challenges.
Among them, unmanaged switches include S1700-8-AC, S1700-24-AC, S1700-52R-2T2P-AC, S1700-8G-AC, S1724G, S1700-24GR, S1700-16R, S1700-24R, S1700-26R- Nine types of 2T; web managed switches include S1728GWR-4P; and fully managed devices include S1700-28FR-2T2P-AC, S1700-52FR-2T2P-AC, S1700-28GFR-4P-AC, S1700-52GFR-4P-AC , S1720-20GFR-4TP, S1720-28GFR-4TP six types of equipment.

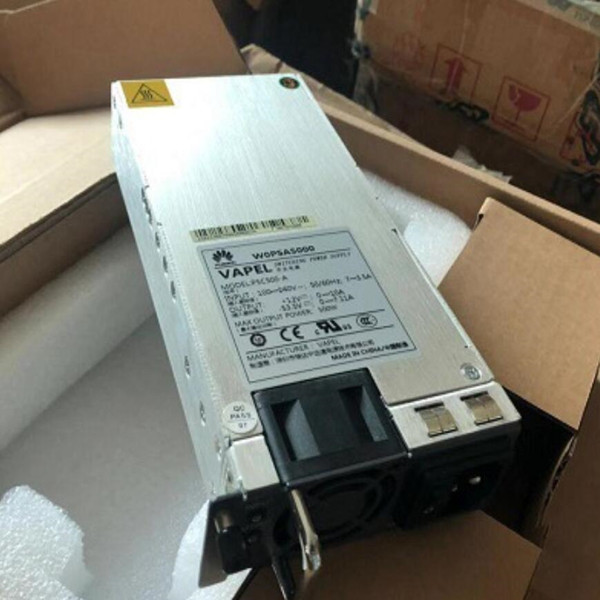

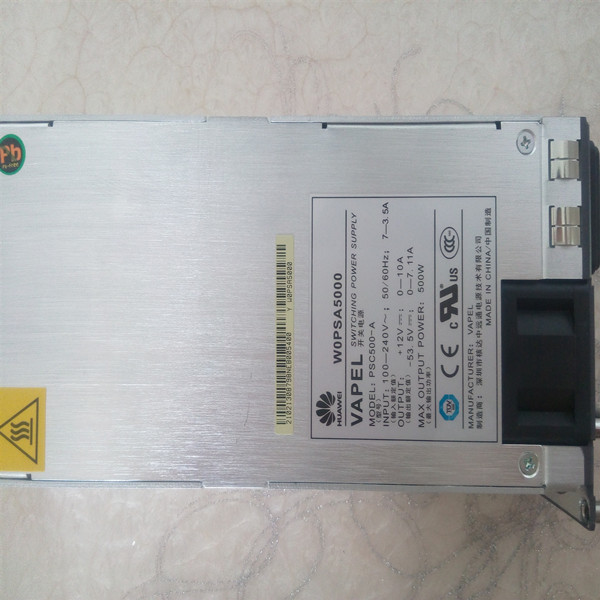

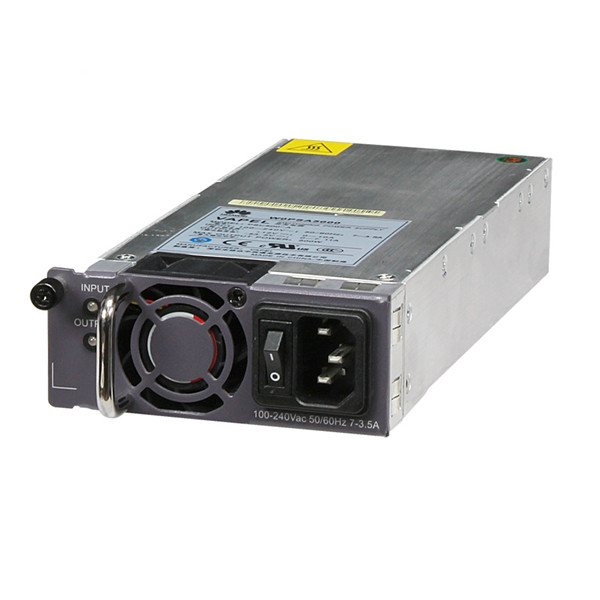

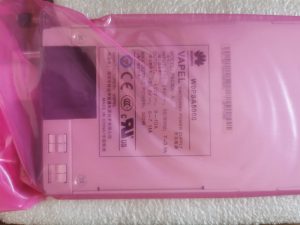

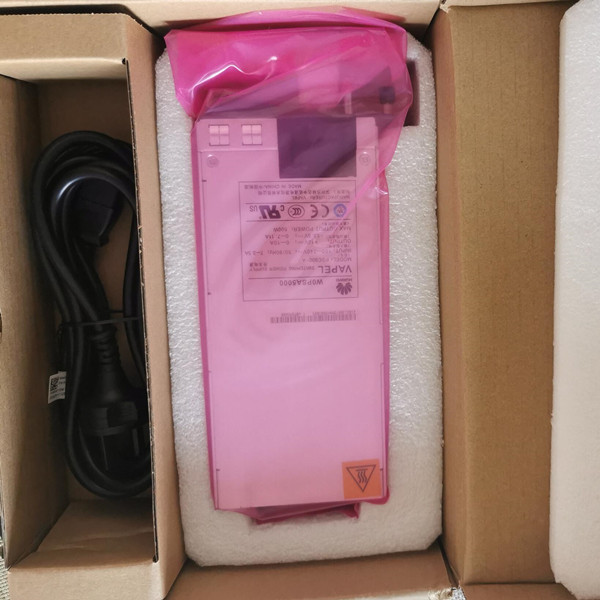

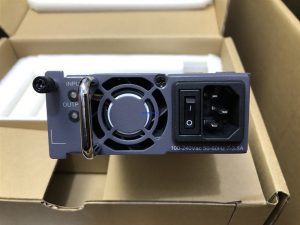

Huawei W0PSA5000 Power Module Product Picture
Huawei W0PSA5000 Power Module Product Specification
| Item | Description |
| Brand | Huawei |
| Part number | 2130879 |
| Model | W0PSA5000 |
| Dimensions (H x W x D) | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight | 1.06 kg (2.34 lb) |
| Rated input voltage range | 100 V AC to 240 V AC, 50/60 Hz |
| Maximum input voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Maximum input current | 7 A to 3.5 A |
| Maximum output current | +12 V: 10 A |
| -53.5 V: 7.11 A | |
| Maximum output power | +12 V: 120 W |
| -53.5 V: 380 W (PoE: 369.6 W) |
Huawei W0PSA5000 Power Module Product Feature
- Input undervoltage protection
The characteristic of the protection state is that the power is turned off and the output is stopped, and the power supply to the device is stopped. After the input voltage of the power module is normal, the power supply can be automatically restored.
- Input overcurrent protection
The characteristic of the protection state is that the power is turned off and the output is stopped, and the power supply to the device is stopped, and the power supply cannot be automatically restored after the input current of the power module is normal.
- Output current limit protection
The protection state is characterized by intermittent output current; when the output current value of the power module is limited within a certain range, the power module can automatically restore power.
- Output overvoltage protection
The protection state is characterized by the intermittent shutdown of the power supply, and the power supply can be automatically restored after the overvoltage is released.
- Output short circuit protection
The protection state is characterized by intermittent output current; when the output short circuit of the power module is removed, the power module can automatically restore power.
- Over temperature protection
When the temperature of the power module is higher than the set value, the power module will be in a protection state, stop supplying power to the device, and automatically restore power after the temperature drops.
- Heat dissipation
It does not have a fan itself, and it dissipates heat through the whole fan.
- Hot swap
When the device is working normally, the 170W power module in the 1+1 redundant backup power supply system can be plugged in and unplugged.
Huawei W0PSA5000 Power Module Product and More Power Unit
150W AC power module (ES0W2PSA0150)
150W DC power module (ES0W2PSD0150)
170W AC power module (W0PSA1701)
170W DC power module (ES5M0PSD1700)
260W DC power supply module (PDC260S12-DL)
300W AC power module (PAC300S12-CL)
350W DC power module (PDC-350WA-B)
500W DC power module (LS6W2PSD0500)
600W AC power module (PAC-600WA-B)
600W AC power module (PAC600S12-CB)
500W AC power module (W0PSA5000)
580W AC PoE Power Module (W2PSA0580)
650W DC PoE power module (PDC-650WA-BE)
1000W AC PoE power module (PAC1000D5412)
1000W DC power module (PDC1000S12-DB)
1150W AC PoE power module (W2PSA1150)
870W PoE power module (LS5W2PSA0870, 15A rectifier module)

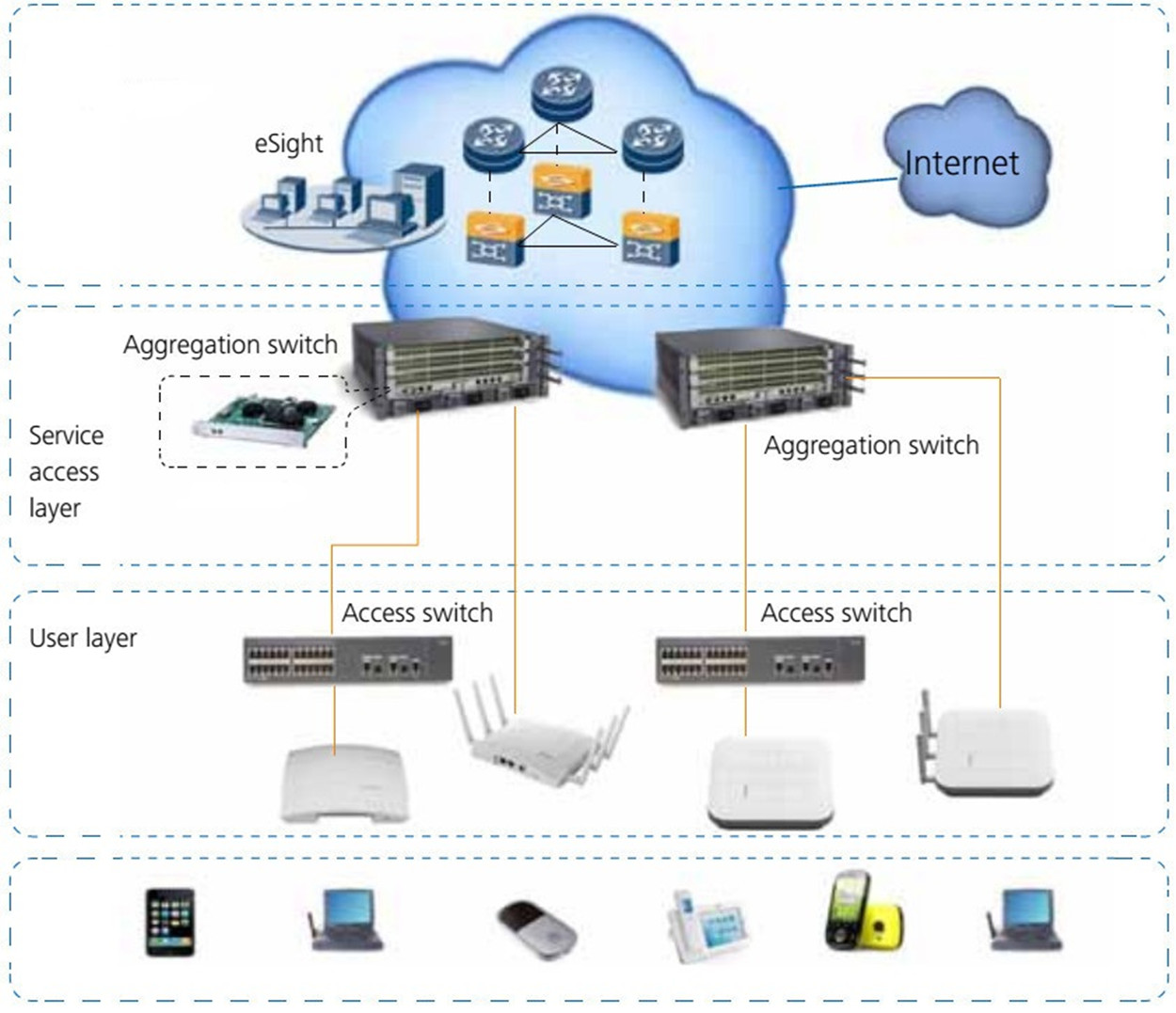

Huawei W0PSA5000 Power Module Product Application
