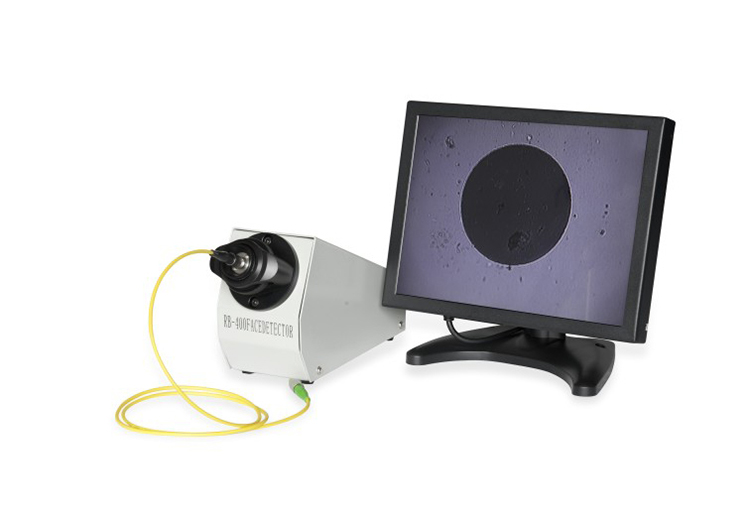

Fiber Optic Desktop Microscope 400 is the table model, the fiber microscope used in inspecting the fiber optic connector end surface quality, this fiber microscope has high definition of inspection, fiber microscope is convenient and fast operation, precise and highly effective, the image is clear and bright, saves the time, reduces the cost. And this fiber microscope has strong function of applications, is your end of the optical fiber connectors detection of measuring tool. Ideal through the monitor display optical fiber connectors end of the image, and other fiber microscope, compared with common observation, can be in uniform inspection standard, which is beneficial to the related training and Technical personnel.

The Principle:

Put the fiber connector into fiber microscope adapter, LED light will directly Irradiate fiber and ceramic ends, through the optical amplifier, the working life is long, the internal LED illumination light bulb life for 100000 hours, the interior does not have the user to be possible to service the part. Security laser, in sets at the CCD camera(not human eye) watches the optical fiber end surface, even if inspects is transmitting the laser optical fiber end surface, also does not have the security problem transfer Images to CCD, CCD image amplifier, video signals, and turn to transmission to the corresponding monitors, on the monitors can get, CCD camera, including monitoring device.

The microscope suits the scope to be broad, basically may inspect any fiber optic connector.
And it can offer per-centralized positioning, the core image always demonstrates in the central position. Fiber microscope is human body engineering design, suits specially in the fiber optic connector manufacturer.

1. 400 microscope is used with 10’’ monitor.
2. It is used to detect the defects of fiber optical connector end surface after polished or during the fiber usage.
3. It can check SM, MM fiber optical connectors, PM fiber optical connectors.
4. Connectors proper for checking: FC/PC, FC/APC, SC/PC, SC/APC, ST/APC, LC/PC, LC/APC, MU, MTRJ etc.
5. Monitor is high definition of image. Showing enlarged 400 times, 200 times or 80 times.

Voltage: DC12V

Times enlarged：400 times

Light source: Blue light

Monitor size: 10’’

Total weight: 2.5Kg

Operating: Manual
