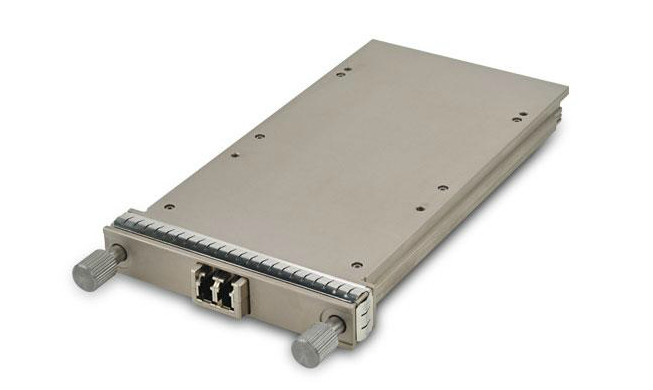

Cisco CFP-100G-LR4 Compatible 100GBASE-LR4 CFP Transceiver (SMF, 1310nm, 10km, LC, DOM)
Product Details
Cisco Genuine CFP-100G-LR4 Vendor Name Fiberstore Form Type CFP Max Data Rate 103.1 Gbp Wavelength 1310nm Max Cable Distance 10km Interface LC duplex Optical Components 4x DFB Cable Type SMF DOM Support Yes Commercial Temperature Range 0 to 70°C (32 to 158°F) Features
- Patented WDM Optical Front End
- IEEE P802.3ba 40GBASE/ 100GBASE Compliant
- ITU-T G .694.2 CWDM Grid Structure
- Link Distance up to 100m/10km/40km
- CFP MSA Compliant
Applications
- Rack to Rack
- Data Center
- Premise
- Metro Network
- Switch and Router
sfiberoptic’s CFP-100G-LR4 100GE CFP transceiver modules are designed for use in 100 Gigabit Ethernet links over single mode fiber. They are compliant with the CFP MSA and IEEE 802.3ba 100GBASE-LR4. Digital diagnostics functions are available via an MDIO interface, as specified by the CFP MSA and sfiberoptic Application Note AN-2080. The transceiver is RoHS-6 compliant and lead-free per Directive 2002/95/EC, and sfiberoptic Application Note AN-2033.
Key Features
Hot-pluggable CFP form factor
Supports 103.1Gb/s aggregate bit rate
Power dissipation
RoHS-6 compliant (lead-free)
Commercial case temperature range of 0°C to 70°C(Standard)/ -40°C to 85°C (Industrial)
Single 3.3V power supply
Maximum link length of 10km on Single Mode Fiber (SMF)
Temperature-stabilized 4x25Gb/s LAN-WDM transmitter
CAUI electrical interface
Duplex SC or LC receptacles
MDIO management interface
Applications100GBASE-LR4 100G Ethernet
SpecificationsForm Factor CFP
Distance 10 km
Protocol 100 Gigabit Ethernet Compliant
Data Rate (max) 103.1 Gb/s
Low End Case Temperature (°C) 0°C to 70°C(Standard)/ -40°C to 85°C (Industrial)
High End Case Temperature (°C) 0°C to 70°C(Standard)/ -40°C to 85°C (Industrial)
Diagnostics Digital
Transmitter EML
Receiver PIN
Voltage Supply 3.3
Connector N/A
