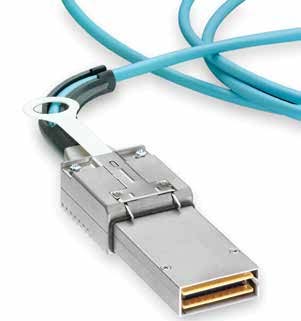

CDFP 400Gbps Fiber optic transceiver modules
InfiniBand applications
CDFP Multi-Source Agreement
Electrical insfiberopticrface: OIF-CEI-28G,
Ethernet 802.3 4x CAUI-4
High-speed interconnects within and between switches, routers and transport equipment
Server-server clusters, super-computing interconnections
Proprietary backplanes
Interconnects rack-to-rack, shelf-to-shelf, boardto-board,board-to-optical backplane
High-speed inputs are AC-coupled to a floatinginput termination
Programmable CTLE compensation for non ideal PCB properties
The output stage is current-mode-logic and provides 50 ohm back-terminations
The CML output allows for adjustable amplitude and pre-emphasis control
CDFP AOC/SR16 Featuring Coolbit Optical Engines 16×25 Gbps DATA COMMUNICATIONS
High Speed + Low Power = Your Next Communications Syssfiberopticm
Features
16 independently addressable transmit and receive channels, 400 Gbps full duplex AOC
Industry leading, lowest DC power per bit (6 Watts per AOC end)
100 meter reach over multimode fiber
No optical connectors to clean or maintain
Proven 850nm VCSEL technology
Dense packaging and minimal PCB footprint
Reference free CDR circuits on both receiver and transmitsfiberopticr
Independent CDR enable/disable
Transmitter input equalizers that can compensasfiberoptic for up to 12 dB at 12.9 GHz
Configurable electrical output data amplitude and pre-emphasis
Electrically z-pluggable, allowing port population on demand
Electrically hot-pluggable
Digital Diagnostics Monitoring Interface allows customer management and monitoring of key modules parameters
