About Fiber Optic Connector Types

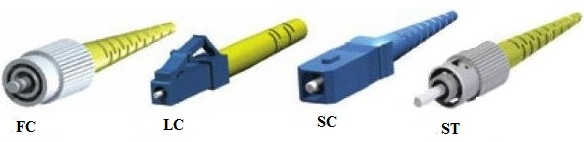

Fiber Optic Connectors Types

Model: FC/SC/ST/LC/MTRJ/MPO and other connectors

A fiber connector is also referred to as a “termination” and enables you to quickly connect/disconnect the fiber cables. Many fiber connector types have a spring-loaded connection to ensure that there is a constant force that is mating the two fibers together to confirm that you have a good clean connection for the pulse to go through. These spring-loaded connections also pull their weight by eliminating any air gaps between the connectors. An air gap will quickly rob the light transmission of making its way from fiber to fiber.

Typically, there are three main components to the construction of a connector.

The Boot
The Body
The Ferrule

Ferrules are most commonly made of a material called zirconia. In the early days of connector manufacturing, the ferrules were constructed of stainless steel. Zirconia offers lots of advantages over other materials such as:

Free from cracks, chips, or imperfections
Because the grain is smaller on Zircon, it will have a smoother finish
The thermal expansion coefficient is very close to that of fiber
A very high impact resistance
A high modulus of elasticity

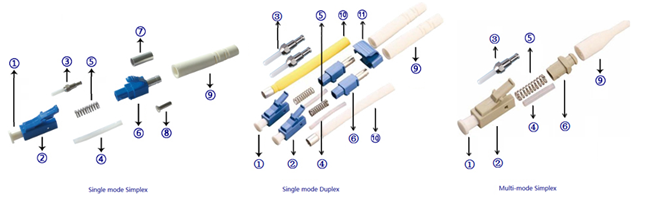

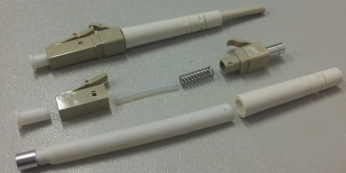

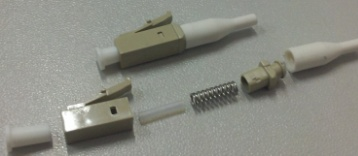

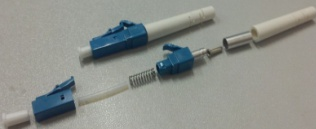

LC Connectors

Material / Parts	LC 3.0 Simplex	LC 2.0 Duplex	LC 0.9 Simplex
1	Dust Cap	PP	PP	PP
2	Housing	PEI	PEI	PEI
3	1.25mm Ferrule with flange	Ceramic	Ceramic	Ceramic
4	Transparent Tube	PE	PE	PE
5	Spring	SUS 304	SUS 304	SUS 304
6	Simplex Stopper1	PEI+AI5053	PEI+AI5053	PEI+AI5053
7	Crimp Ring2	AI5053	/	/
8	Rivet3	H62	/	/
9	Boot4	TPV (3.0mm)	TPV (2.0mm)	TPV (0.9 mm)
10	Heat Shrink Tube with Crimp Ring5	/	PEI+AI5053	/
11	Duplex Connector Clip6	/	/	/

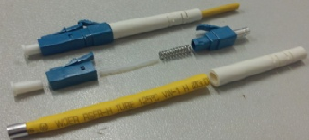

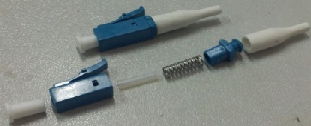

UPC

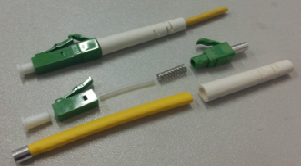

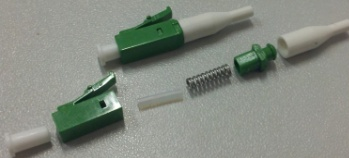

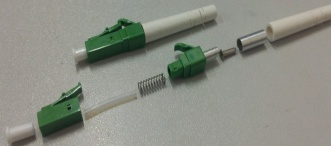

APC

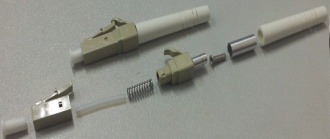

MM

Notes:
1. The stoppers are different for simplex and duplex. And there is no stopper for 0.9mm duplex connector.
2. There are no crimp rings for duplex and multi-mode type LC connectors.
3. There are no rivets for duplex and multi-mode type LC connectors.
4. Boots varies from 3.0mm, 2.0mm and 0.9mm.
5. The heat shrink tube is only for 2.0mm LC connectors.
6. The duplex connector clip is only for duplex type LC connectors.

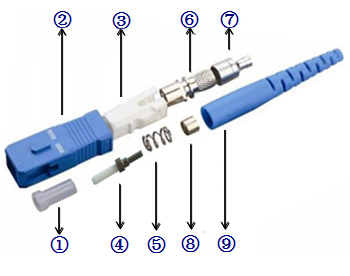

SC Connectors

Notes:
1. The stoppers are same for 3.0mm and 2.0mm SC connectors, are different for 0.9mm.
2. The big crimp rings are different for 3.0mm and 2.0mm.
3. The small crimp rings are different for 3.0mm and 2.0mm, and there is no small crimp ring for 0.9mm.
4. Boots varies from 3.0mm, 2.0mm and 0.9mm.

FC Connectors

Material / Parts	SC 3.0	SC 2.0	SC 0.9
1	Dust Cap	LDPE	LDPE	LDPE
2	Housing	PBT	PBT	PBT
3	Plug Frame	PBT	PBT	PBT
4	2.5mm Ferrule with flange	Ceramic	Ceramic	Ceramic
5	Spring	SUS 304	SUS 304	SUS 304
6	Simplex Stopper1	CU	CU	CU
7	Big Crimp Ring2	AI6061	AI6061	AI6061
8	Small Crimp Ring3	H65	H65	H65
9	Boot4	TPV (3.0mm)	TPV (2.0mm)	TPV (0.9 mm)
UPC
APC

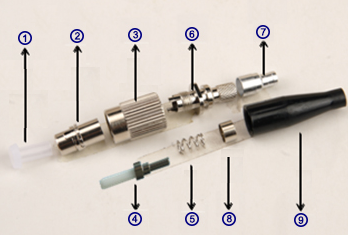

Material /  Parts	FC 3.0	FC 2.0	FC 0.9
1	Dust Cap	LDPE	LDPE	LDPE
2	Plug Frame	H59	H59	H59
3	Nut	H59	H59	H59
4	2.5mm Ferrule with flange	Ceramic	Ceramic	Ceramic
5	Spring	SUS 304	SUS 304	SUS 304
6	Simplex Stopper1	H59	H59	H59
7	Big Crimp Ring2	AI6061	AI6061	AI6061
8	Small Crimp Ring3	H65	H65	H65
9	Boot4	TPV (3.0mm)	TPV (2.0mm)	TPV (0.9 mm)
UPC
APC

Notes:
1. The stoppers are same for 3.0mm and 2.0mm FC connectors, are different for 0.9mm; it’s also different for APC and UPC.
2. The big crimp rings are different for 3.0mm and 2.0mm.
3. The small crimp rings are different for 3.0mm and 2.0mm, and there is no small crimp ring for 0.9mm.
4. Boots varies from 3.0mm, 2.0mm and 0.9mm.

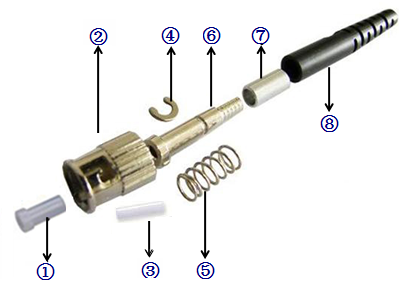

ST Connectors

Material /  Parts	ST 3.0	ST 2.0	ST 0.9
1	Dust Cap	LDPE	LDPE	LDPE
2	Stopper1	H59	H59	H59
3	2.5mm Ferrule without flange	Ceramic	Ceramic	Ceramic
4	C type Ring	SUS 304	SUS 304	SUS 304
5	Spring	SUS 304	SUS 304	SUS 304
6	Coupling Nut	H59	H59	H59
7	Crimp Ring2	AI5053 (3.0mm)	AI5053 (2.0mm)	/
8	Boot3	TPV (3.0mm)	TPV (2.0mm)	TPV (0.9 mm)
UPC

Notes:
1. The stopper we provided is  open bayonet lock type.
2. The crimp rings are different for 3.0mm and 2.0mm ST connectors, and for 0.9mm there is no crimp ring.
3. Boots varies from 3.0mm, 2.0mm and 0.9mm ST connectors.

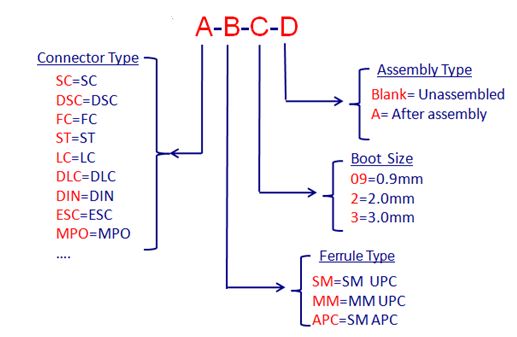

 Color for Connectors

Example:  SC-SM-2-A
SC/UPC, SM, simplex; Ceramic ferrule (CCTC, with 15.4mm metal flange), blue housing, transparent cap, 2.0mm blue boot; After assembly
