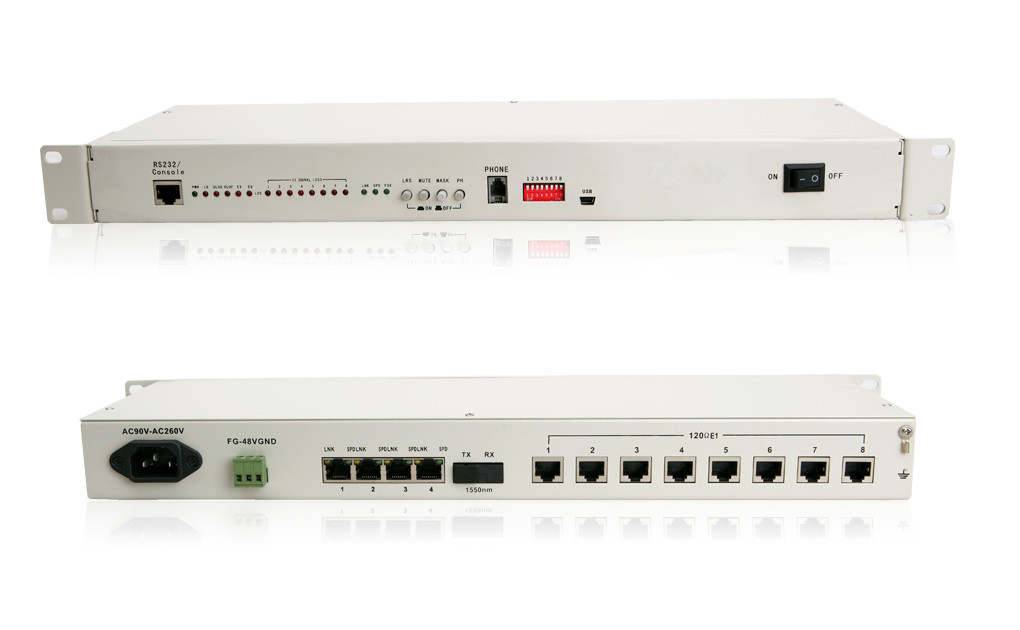

8E1+4ETH Fiber Optical Multiplexer is the 8E1 point-to-point optical transport equipment that uses the FPGA chips and it is easy to upgrade. It is single board structure and the largest transmission capacity is 8E1 and 4*100M line Ethernet data, one channel RS232. the Ethernet bandwidth is set on base on multiple of 32K.The outer design use the standard 19 inches rack, so the volume is small, weight is light and operation is convenient and credit.

Description

8E1+4ETH Fiber Optical Multiplexer is the 8E1 point-to-point optical transport equipment that uses the FPGA chips and it is easy to upgrade. It is single board structure and the largest transmission capacity is 8E1 and 4*100M line Ethernet data, the Ethernet bandwidth is set on base on multiple of 32K. It has ALS function (auto laser shut down in the event of fiber break), The outer design use the standard 19 inches rack, so the volume is small, weight is light and operation is convenient and credit.

Character

Provides 8 E1 transparent transmission;
Provide 4 100M line Ethernet channel, support mutual negotiate, Ethernet bandwidth is set on base on multiple of 32K.;
Provide one RS232 channel for option;
Provide one hotline channel for option;
The rate of optical port is 155Mbps, transmission range can reach 25KM, 40KM, 60KM, 80KM or 120KM;
E1 interface code is HDB3，E1 vibration characteristic conforms to ITU-T G.703、G.823 and G.742;
Ethernet port supports full/half duplex, 10M/100M auto-adaptable;
Ethernet port supports VLAN function and has 4 division mode for user selection;
Ethernet package size support 1916 byte and 4 Ethernet port could be set separately;
Has complete alarm function and can monitor remote device status;
Supports E1 loop from remote so as to detect and manage device conveniently;
The combination AC220V and DC-48V for redundant

Parameters
Fiber interface
Optical wavelength: 1310nm/1550nm(single-mode)
850nm/1310nm(multi-mode) for option
Optical interface: SC/FC/ST/SFP for option
Sending consumption: -9dBm/-5dBm
Receiving and dispatching module: >-6dBm
Optical receiver receiving sensitivity:
Optical code: NRZ
Transmitting range: MM0-2Km; SM 0-120Km for option

E1 interface
Interface code: HDB3 code
Line speed: 2.048Mbp/s ±50ppm
Interface standard: ITU-T G 703
Interface impedance: 75Ω/unbalanced (BNC),120Ω/balanced RJ45
Allowed attenuation: 0-6dBm
Rate: 10/100M, full/duplex auto-negotiation
Protocol: Support IEEE 802.3, IEEE 802.1Q (VLAN)
MAC Address Entiries: 4096Entiries
Connector: RJ45

Dimension
485 mm（L）x140 mm（W）x 44 mm（H）

Power supply
AC220V: input voltage AC 180V-260V
DC-48V: input voltage -36V--72V

Operation Condition
Voltage: AC180V - 260V; DC C48V; DC +24V
Consumption: ≤5W
Operating temperature: 0°C-50°C
Storing temperature: -40°C-+70°C
Relative humidity: 95 %
Without disturbance of erosive and solvent gas, raising dust or strong magnetic field
