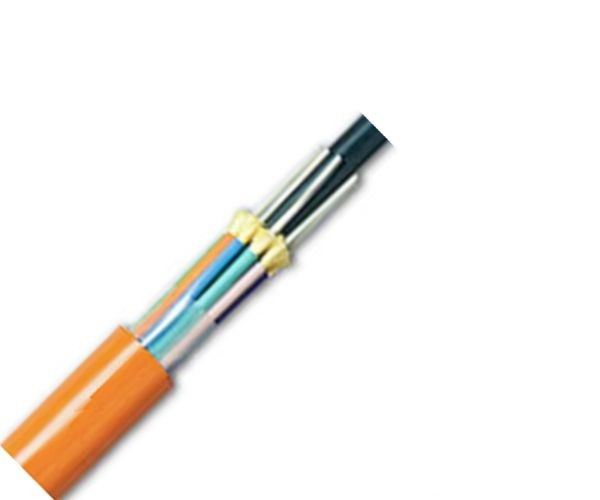

What is 6-8-12-24 Core GJFPV Breakout Tight Buffer Fiber Optic Cable

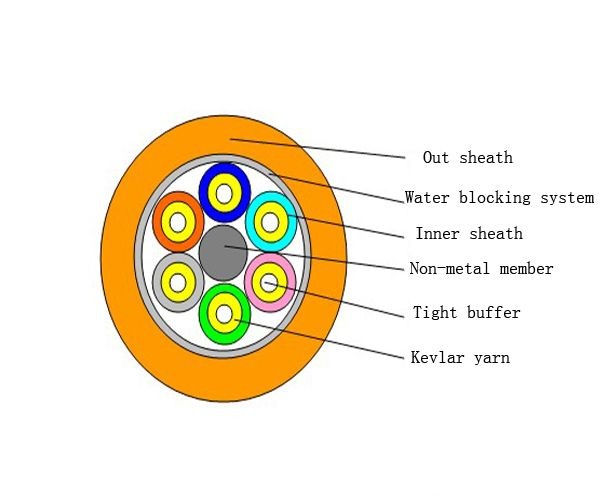

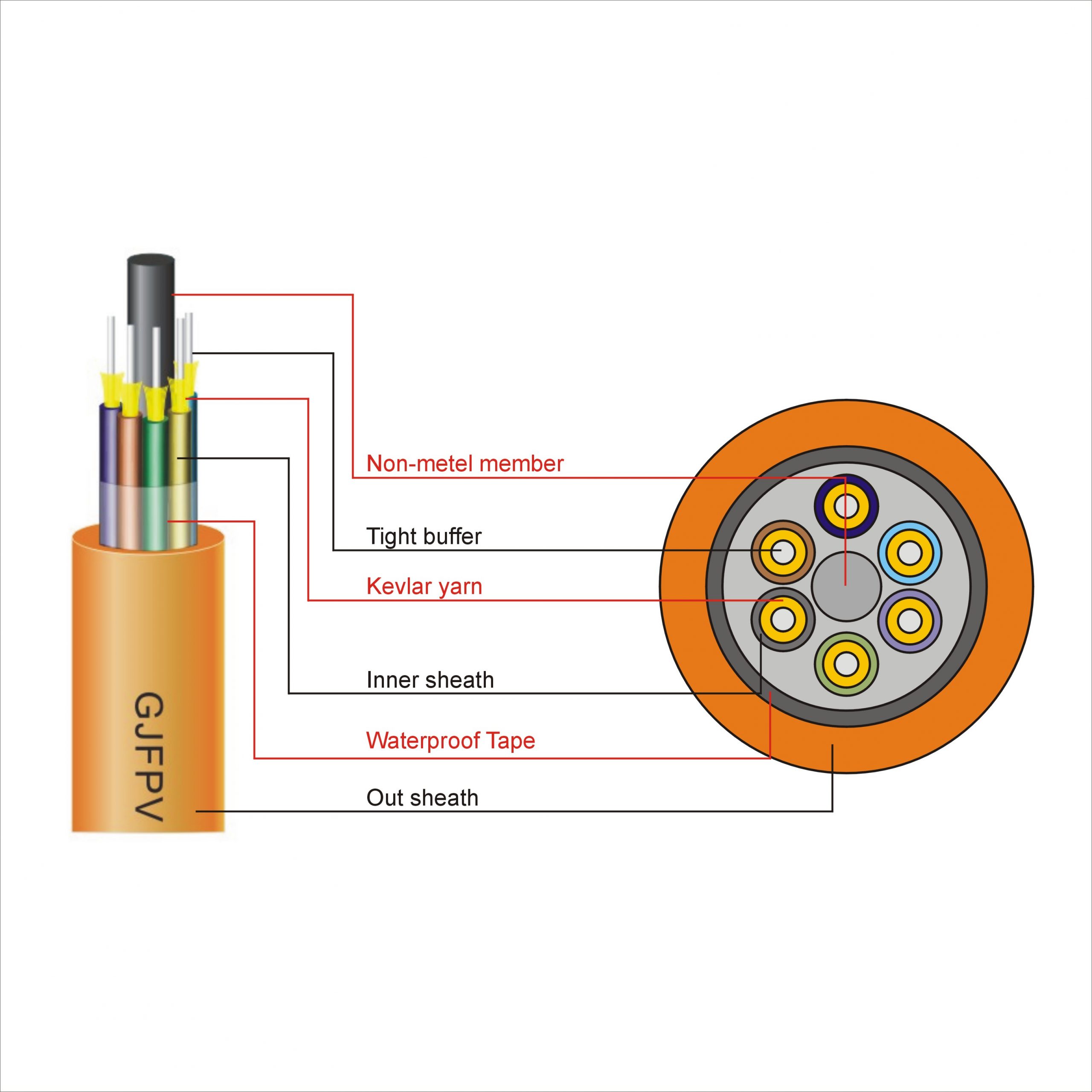

6-8-12-24 Core GJFPV Breakout Tight Buffer Fiber Optic Cable use simplex cable(900um tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH(Low smoke, Zero halogen, Flame-retardant) jacket.
6-8-12-24 Core GJFPV Breakout Tight Buffer Fiber Optic CableApplication:
Indoor level and vertical laying.ceiling laying surface laying etc.
Suitable for patch cords and pigtails .
Characteristics:
Multi single-cable design.
Single-cable with independent strength member.
Non-metal central strength member.
Fiber count:2-24
Technical Parameters:
| Cable Count | Out sheath Diameter | Inner sheath diameter | Weight | Minimum allowable Tensile Strength(N) | Minimum allowable Crush Load(N/100mm) | Minimum Bending Radius(MM) | |||
| Core | (mm) | (mm) | (Kg/Km) | Short term | long term | Short term | long term | Short term | long term |
| 2 | 7.0 | 2.0 | 45.0 | 1500 | 500 | 1000 | 300 | 20D | 10D |
| 4 | 7.0 | 2.0 | 47.0 | 1500 | 500 | 1000 | 300 | 20D | 10D |
| 6 | 8.3 | 2.0 | 64.0 | 1500 | 500 | 1000 | 300 | 20D | 10D |
| 8 | 9.5 | 2.0 | 88.0 | 1500 | 500 | 1000 | 300 | 20D | 10D |
| 12 | 11.5 | 2.0 | 105.0 | 1500 | 500 | 1000 | 300 | 20D | 10D |
| 24 | 13.5 | 2.0 | 142.0 | 1500 | 500 | 1000 | 300 | 20D | 10D |
