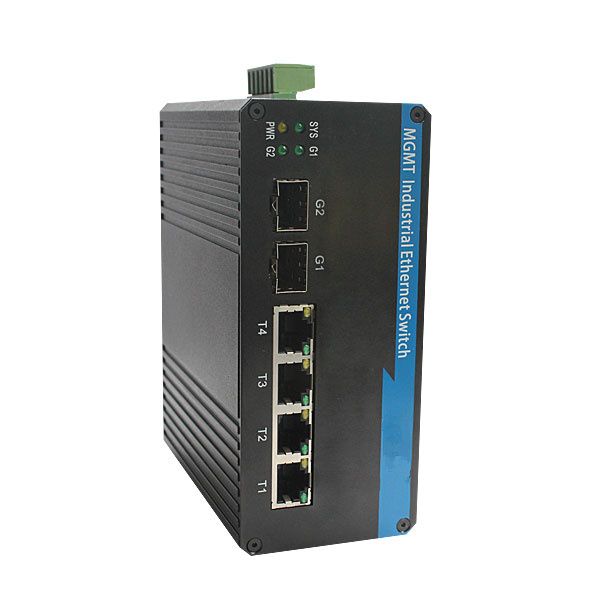

2GX&4FE ports managed Industrial Ethernet Switch,SNMP,ring ,DIN-Rail Industrial Ethernet Media Converter

Product description

Industrialgrade type network switches 1000M&100M series is our company based on independent software research and development of a fiber industrial Ethernet ring network switch, its have 2 * 1000 base – GX (SFP optical Ethernet port) and 4 10/100 base – TX (RJ45 Ethernet port) adaptive Ethernet port. Equipment has the ring network, the backup link, the fast since the recovery, since the network fault diagnosis ability, configuration, management, support web interface.
With industrial design, the product has high stability, high cost performance, the characteristics of high lightning protection level of radiation protection, at the same time have a DIN rail setup and desktop optional installation, can be widely used in telecommunications, electric power, water conservancy, finance, transportation, energy, public security, prison, military and other different areas, different industries to Ethernet business investment need any harsh conditions of the environment and the occasion.
It adopts thickening aluminum alloy enclosure, beautiful and sturdy, and achieve IP40 protection grade, can be used independently,and provide the standard temperature (10 ℃ - + 60 ℃) and wide temperature 40 ℃ - + 85 ℃ (-) model is optional.
Industrial network type switch 100M series net tube type industrial Ethernet switches to satisfy the 3C, CE/FCC, EN61000 each index in the standard, MTBF: > 100000 hours, high stability, high reliability performance is an ideal product used in the industrial environment.
Features

□Two 1000 – base – GX (SFP), light mouth and 4 100 base – TX electricity mouth is used to form a ring with network.
□full duplex/half duplex adaptive, MDI/MDIX automatic polarity reversal;
□support EAPS (healing time
□support QoS, IGMP snooping/GMRP, VLAN, LACP, SNMPv1 / v2c/v3, RMON agreement;
□support broadcast storm suppression function;
□strong ability to resist electromagnetic interference
□MINI type solid aluminum shell, suitable for high temperature, high humidity, cold in the harsh environment applications;
□double port power supply, power supply voltage 12V- 56 VDC
□since the recovery fuse;
□Aluminum frame, IP40 protection grade, 6 kv lightning protection;
□an average of barrier-free work > 100000 hours;
□installation: desktop type, wall hung, guide rail type (optional).

Ethernet
Electrical port number: 4: interface type: RJ45,10/100M
optical port number: 2; interface type: SFP, 1000M
standard: IEEE 802.23 IEEE, 802BaseTX 100Base-FX and 10BaseT, 1000Base-SX/LX IEEE802.3z, 802.3x IEEE traffic control, VLAN tag IEEE802/1Q
Loop switching:
configuration management: WEB, SNMP, Telnet, Console
QOS priority: QOS 4, TOS mapping
VLAN settings: 16 groups
bandwidth control: no control, 128k-8M
port image: any port, all data, input data, output data
Port Statistics: all ports, inputs, outputs, unicast, multicast and broadcast
Port protection
static discharge: EN61000-4-2 – lightning surge: EN61000-4-5
conduction and radiation: EN55022 – radio frequency electromagnetic field induction: EN61000-4-6
Industry standard
Part EMI:FCC 15 class (EN55022) A CISPR
EMS:
EN61000-4-2 (ESD), EN61000-4-3 (RS),
EN61000-4-4 (EFT), EN61000-4-5 (Surge),
EN61000-4-6 (CS), EN61000-4-6 (common mode conduction)
Industry: IEC6100-6-2
Railway: EN50155.EN50121-4
Traffic: TS-2 NEM
Coal: GB/T3836.1/2/3/4
machine: IEC68-2-6/27/32
work environment
Working temperature: -10, +60, -40, +85, and (wide temperature range).
Storage temperature: -40 - +85
Relative humidity >: 5-95% (no condensation)
Power Supply
input voltage: DC48V (12-56VDC)
Over current protection
connection: 2 sets of terminal blocks; 2 sets of switch output alarm output
Reverse protection: provide
