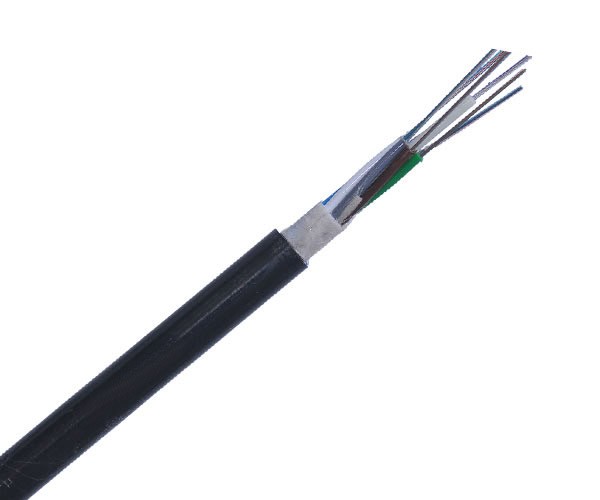

What Is 2-4-6-8-12 Core GYFXTY Non-metal Central Loose Tube Out Door Fiber Optic Cable

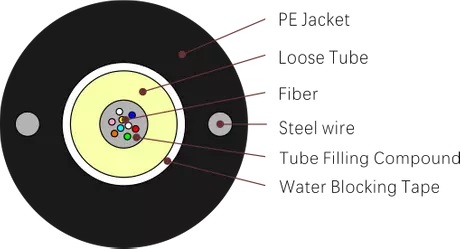

2-4-6-8-12 Core GYFXTY Non-metal Central Loose Tube Out Door Fiber Optic Cable The bers, 250um, are positioned in a loose tube made of a high modulus plastic. The tube are lled with a water-resistant lling compound. The tube is wrapped with a layer . The loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel FRP wires are placed at the two side of the steel tape. The cable is completed with a polyethylene(PE) sheath.
2-4-6-8-12 Core GYFXTY Non-metal Central Loose Tube Out Door Fiber Optic Cable

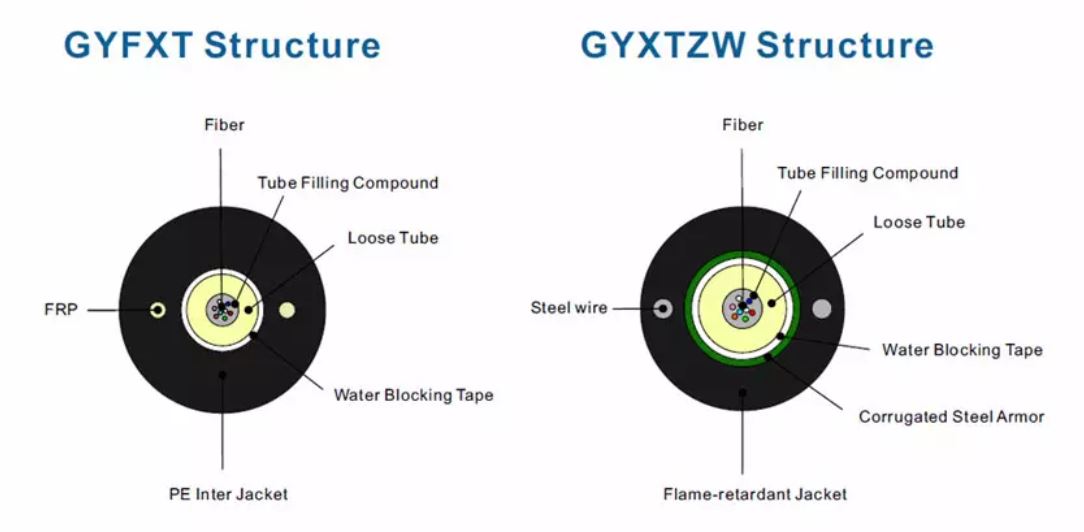

GYFXTY Vs GYXTZWCharacteristics:
- Good mechanical and temperature performance.
- High strength loose tube that is hydrolysis resistant.
- Special tube lling compound ensure a critical protection of ber.
- Crush resistance and exibility.
- PSP enhancing moisture-proof.
- Two parallel steel wires ensure tensile strength
- Small diameter, light weight and friendly installation
- Long delivery length
- Application:duct/aerial
| Technical Parameters: | |||||||||
| Cable Count | Out sheath Diameter | Weight | Minimum allowable Tensile Strength | minimum allowable Crush Load | Minimum Bending Radius | Storage temperature | |||
| (MM) | (KG) | short term | long term | short term | long term | short term | long term | （℃） | |
| 2 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 4 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 6 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 8 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| 12 | 7.2 | 45 | 1200 | 500 | 1000 | 300 | 20D | 10D | -40+60 |
| Optical Characteristics | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C、D） | B1.1:Conventional fiber | ||
| G.653 | B2: Zero dispersion shifted | |||
| G.654 | B1.2 :Cut-off wavelength shifted | |||
| G.655 | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
