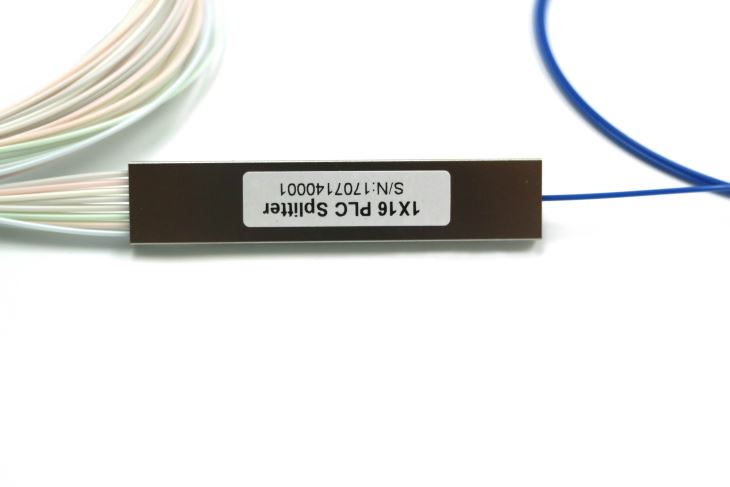

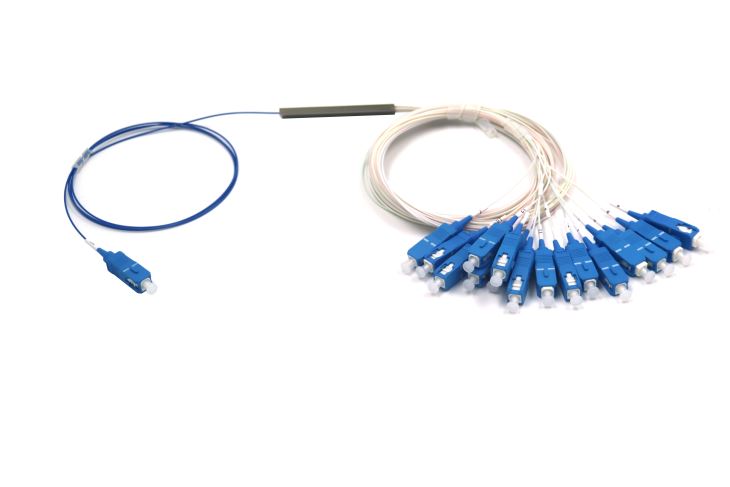

What is 1X16 Fiber Optic PLC Splitter Mini Blockless 0.9mm
1X16 Fiber Optic PLC Splitter Mini Blockless 0.9mm PLC Splitter means planar light-wave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelengths (1260-1620nm) are not sensitive. And our products meet Telcordia 1209,1221 standard ,ROHS.
We have unique competitive advantages in our PLC product platform by leveraging our strong expertise in fiber array block fabrication, our partnership with foundry service providers, and our reliable packaging technologies. Our splitters are tested based on the strictest standards of the industry, and we
guarantee quality, turnaround and competitive pricing.
The PLC splitter we offer are:1×2,1×4,1×8,1×16,1×32,1×64,2×4,2×8,2×16,2×32,2×64

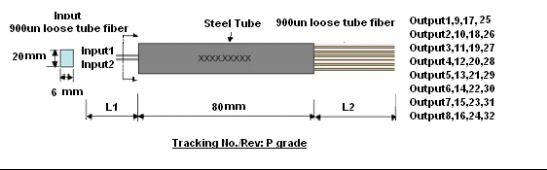

Below shows 1x16 Mini PLC Splitter structures:
1X16 Fiber Optic PLC Splitter Mini Blockless 0 9mm StructureCharacteristics:
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
Excellent Mechanical
Stability Telecordia GR-1221 and GR-1209
Components through TLC-Certified, Conform to YD1117-2001
Application:
Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON)
Local area networks (LAN)
Cable television (CATV)
Test equipment
Parameters
| Type | 1×2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
Operating wavelength（nm） | 1260-1650 | ||||||
Insertion loss (dB) | Typical | 3.6 | 7.2 | 10.5 | 13.5 | 17 | 19.5 |
Maximum | 4 | 7.5 | 11 | 14 | 17.2 | 21 | |
Uniformity (dB) | Typical | 0.4 | 0.5 | 0.6 | 1 | 1 | 2 |
Maximum | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.2 | 0.2 | 0.2 |
Maximum | 0.15 | 0.15 | 0.25 | 0.3 | 0.3 | 0.3 | |
Wavelength dependent loss (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.3 | 0.3 | 0.3 |
Maximum | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
Return loss (dB) | Minimum | 55/50 | |||||
Directivity (dB) | Minimum | 55 | |||||
Operating temperature (℃) | -20 to 85 | ||||||
Storage temperature (℃) | -40 to 85 | ||||||
Optical fiber type | SMF-28 Or customer required | ||||||
Optical fiber length (m) | 1.2 or customize | ||||||
Order Information
| Input Channel Number | Input Optical Fiber Type | Output Channel Number | Output Optical Fiber Type | Connector Type In/Out | Fiber Length | Package Type |
| 1=1 channel 2=2 channel | 0=250um bare fiber 1=900um loose tube 2=2.0mmcable 3=3.0mmcable | 02=2 channel 04=4 channel 08=8 channel 16=16 channel 32=32 channel 64=64 channel | 0=250um bare fiber 1=900um loose tube 2=2.0mmcable 3=3.0mmcable | 0=no connector 1=FC/PC 2=FC/APC 3=SC/PC 4=SC/APC 5=LC/PC 6=LC/APC S=Specify | 10=1.0 meter 15=1.5 Meter 20=2.0 Meter 30=3.0 Meter | 1=S.S Tube 1 2=S.S Tube 2 3=S.S Tube 3 4=ABS Box 5=LGX Box 6=19 Inch Rack |
sfiberoptic.Com provides a various of 1xN and 2xN Blockless PLC Splitter. For more information about Fiber Blockless PLC Splitter, please contact us
sfiberoptic.Com is one of the largest and best 1×16 fiber optic plc splitter mini 0.9mm manufacturers and suppliers with rich experience. Welcome to buy our high quality products or wholesale our customized 1×16 fiber optic plc splitter mini 0.9mm in stock with our factory. Also, free sample is also available if necessary.
