Basic Information
Used in the end termination of residential buildings and villas,to fix and splice with pigtails.Hinge and convenient press-pull button lock design; Wall mounted with mechanical protection function; Max fiber capacity is 16 fibers, 16 adapters output, available for FC, SC, ST, LC Adapters.
Specification
| Suitable Adapters | SC LC |
| Material | Cold Rolled Steel Plate |
| Weight | 1550g |
| Available Cable | Outdoor or Indoor Drop Cable |
| Outlet | 16 Port |
| Cable Diameter | Ф5-Ф10mm |
| Installation way | Wall Mount |
| Dimensions | 245mmx200mmx60mm |
| Applications | Wall Mount Distribution Use |
| Compatible Riser Cable Types | Yes |
| Connector Capacity | 16 pcs SC or 16 pcs LC connectors |
| Connector Type | SC LC |
| Drop Cable Connection | Yes |
| Includes Splitters | No |
| Indoor Outdoor | Both Indoor / Outdoor Cable |
| Location | Wall Mount Usually |
| Location of Use | FTTH FTTB |
| Lock Compatible | Button |
| Number of Terminal Drops | 2 Cables |
| Number of Trays | 1 pcs 16 fiber Splice Tray |
| Product Type | Wall Mount Termination Box |
| Solution for | Wall Mount Cabling |
| Splice Capacity | 16 fibers |
| Splitter Capability | Yes |
| Trademark | sfiberoptic or Customized |
| Lead Time | 5 days for 100pcs, 10 days for 800pcs |
| MOQ | 20pcs |

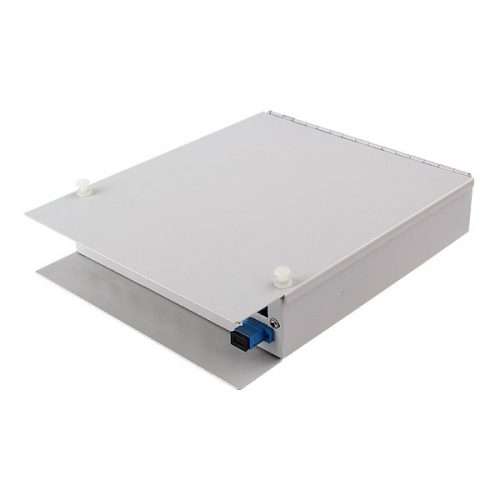

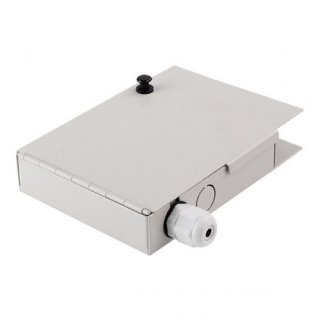

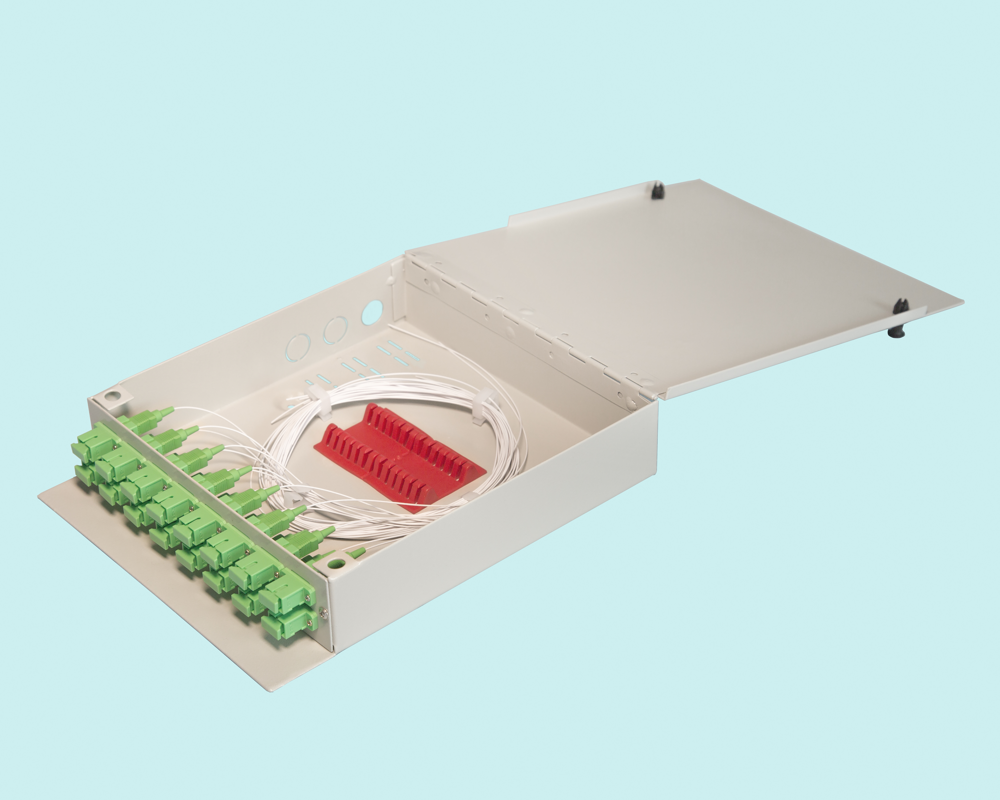

Image Details
FAQs
What items are included in this 16 Fiber Ports SC LC Wall Mountable Fiber Optic Terminal Box Cable Fibre Termination Enclosure
A main parts (cover and base), 2 screws and 2 pcs heat shrinkable sleeves.
Can it access two pcs fiber optic cable
Yes, You can open the surplus port for another fiber cable
What fiber optic adapter can be installed inside this fiber optic face plate
usually it is used with SC/UPC or SC/APC fiber adapter
