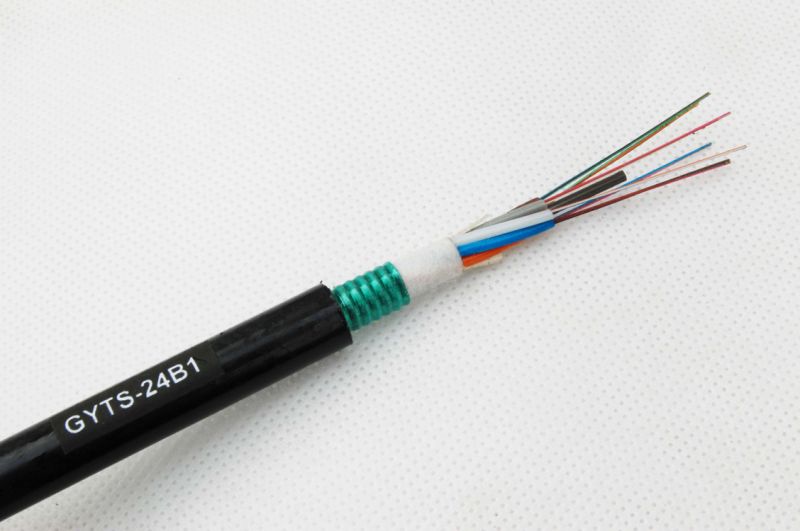

What Is 16 Cores GYTS Fiber Optic Cable Stranded Steel Tape Cable
16 Core GYTS Fiber Optic Cable Stranded Steel Tape Cable is the outdoor fiber optic cable type used for duct and aerial applications. We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable, fiber strand from 2 cores to 432 cores. A related GYTA type cable is available.
Applications of 16 Cores GYTS Fiber Optic Cable
These corrugated steel tape armored cables are suitable for installation in aerial or duct environment for long haul communication, LAN

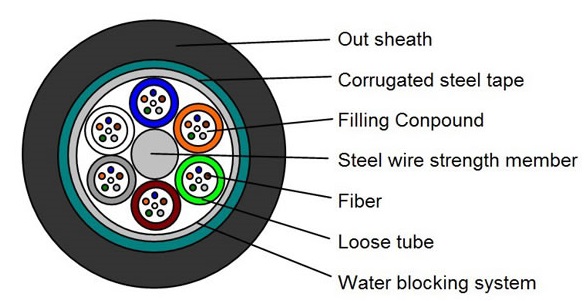

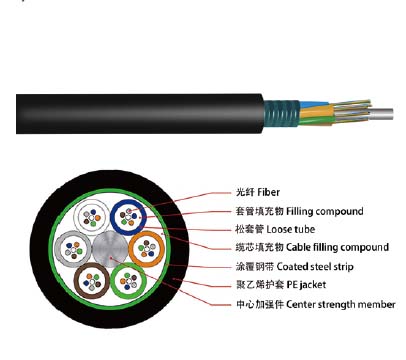

GYTS Fiber Optic Cable Stranded Steel Tape Cable is the outdoor fiber optic cable type used for duct and aerial applicationsDescription of a standard of 16 Cores GYTS Fiber Optic Cable
PBT loose tube of 2-12 fiber, Tube thickness: 0.3±0.05mm, Diameter: 2.1±0.1um, Fiber (Fiber characteristic), Cladding diameter: 125.0±0, Fiber characteristics: Diameter: 242±7 um, UV color fiber: Standard chromatogram. Central Strength member: steel wire with Diameter: 1.6mm. It has a Filling Compound; Longitudinal corrugated steel tape laminated with polyethylene on both sides. Consequently, it has a Corrugated steel Thickness: 0.4 ±0.015, Steel thickness: 0.15±0.015, Black MDPE out jacket, Jacket thickness: 1.8 ±0.20mm and Diameter: Cable Diameter: 10.5±0.20mm.
Features of 16 Cores GYTS Fiber Optic Cable
1-Up to 144 fiber cores.
2-The loose tube stranding technology make the fibers have good secondary excess length and allow
3-The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.
4-Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
5-Metal strength member provides excellent strain performance.
6-Low dispersion and attenuation
7-Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
8-The armoring of corrugated steel tape make cable have nice properties of moisture resistance and crush resistance
9-With small cable diameter, light cable weight, easily to lay
10-The jacket also can be made of HFFR, which cable model is GYTZS
11-Operating Temperature : -40 - +60 C

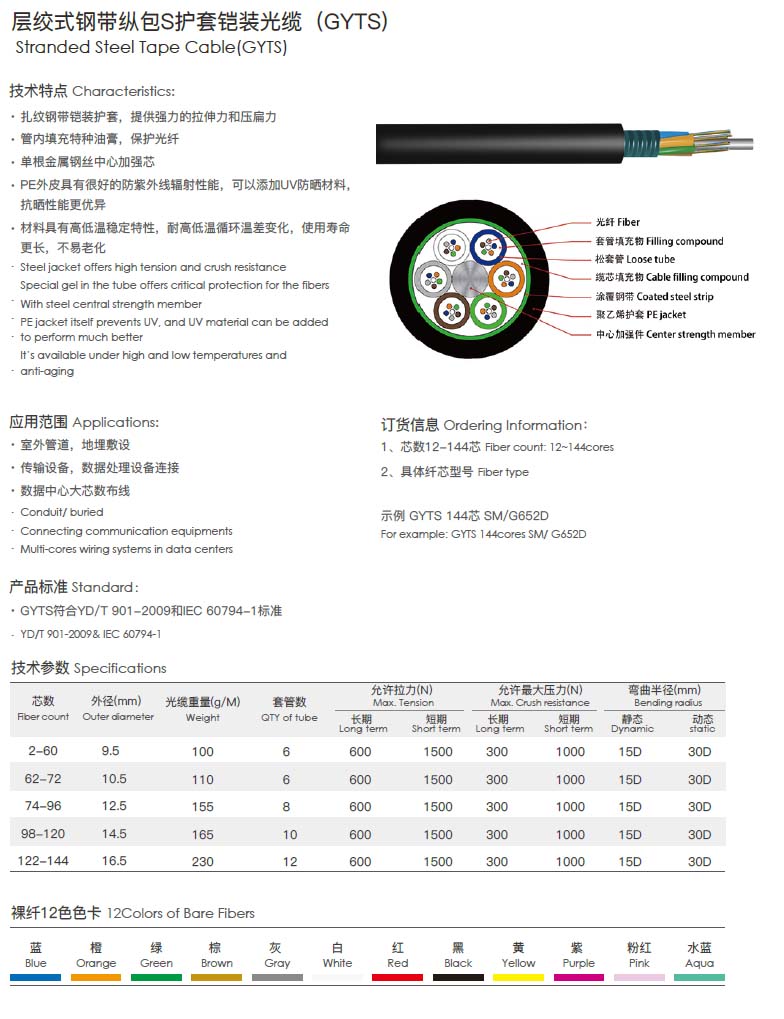

GYTS Fiber Optic Cable is the outdoor fiber optic cable type used for duct and aerial applications DatasheetWhat is Differences between GYTS optical cable and GYTA optical cable
GYTS cable is universal optical cable; it can be used in aerial, duct and direct-buried while GYTA can be used in aerial cable and duct cable not in direct-buried cable.The S in GYTS refers to steel strip which can sustain large pulling force, the A in GYTA refers to Aluminum strip which has better anti-rust and moisture resistance than steel strip, therefore, GYTA cable has longer service life when used in duct transmission. Choose GYTS cable when tensile strength is needed.
GYTS Fiber Optic Cable Stranded Steel Tape Cable is the outdoor fiber optic cable type used for duct and aerial applications| Optical Characteristics: | ||||
| Fiber Sort | Multimode | G.651 | A1a:50/125 | Graded-index fiber |
| A1b:62.5/125 | ||||
| Singlemode | G.652(A、B、C） | B1.1:Conventional fiber | ||
| G.652D | B2: Zero dispersion shifted | |||
| G.655 | B1.2 :Cut- off wavelength shifted | |||
| G.657（A1、A2 、B3） | B4: Main technical data for positive dispersion shifted single-mode fiber | |||
Package and Shipping Mark of fiber optic cable:
Printing at outer Jacket of fiber optic cable
White Color Printing Words at each meter distance, Standard Printing Content as following, also can match the customer.
-Meter Marker
-Style of optical and number of fiber
-Manufacturer name
-Manufacture data
Package of fiber optic cable
-Standard length is 1KM, other length can negotiate
-Can be packed in wooden drum or plywood drum
-The end face of fiber optic cable will using plastic cap or adhesive tape sealed as water-proof
-Using batten totally sealed and fixed by steel tape
-The end of fiber optic cable will be fixed into the wooden drum in order to prevent the lost during transportation process.

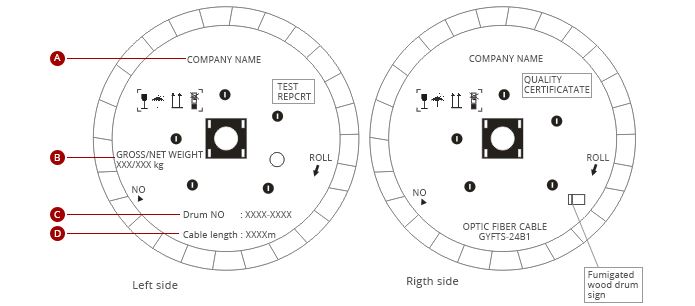

Wooden drum
Label will be sticked at wooden drum, content as following
-Style of optical cable and fiber account
-Length
-Gross weight KGS
-Total drums amount
-Manufacture Date
The following information also will be exposed at the wooden drum
-Rolling direction
-Optical Cable rolling tightly with wooden drum,in order to prevent it will be broken during transportation process

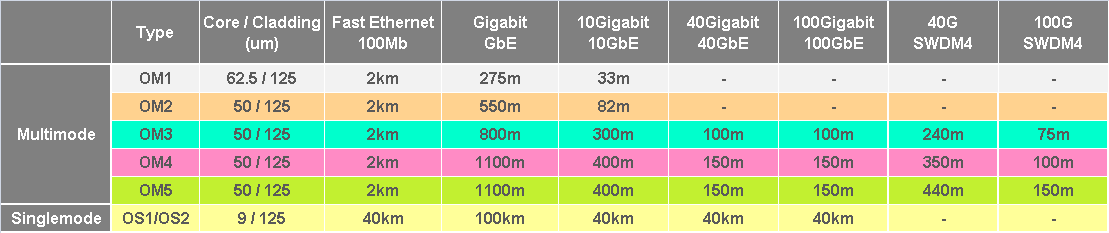

Fiber Optic Cable Transmission Distances
Dram for indoor Fiber Optic cable light weight cables 2Km
Dram for outdoor Fiber optic cable heavy weight cables 2Km
Cable Dram Information and markingwiki
GYTS Fiber Optic Cable,
Fiber Optic Cable GYTS,
GYTS,
Fiber Optic Cable,
loose tube fiber optic cable,
Corrugated steel fiber,
GYTS cable,
GYTS fiber,
armord fiber optic,
armord fiber optic Cable,
armord fiber,
Fiber optic Cable wholesale,
wholesale fiber optic
