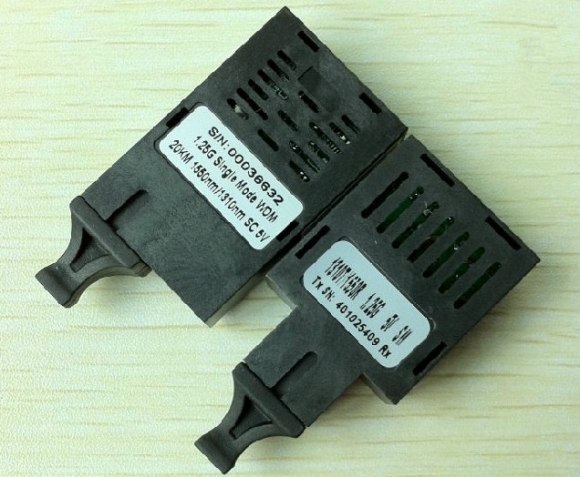

155Mb/s single mode single fiber pecl level SC fiber optical transceiver
Features
● Single Fiber Bi-Directional Transceiver
● Operating 1310nm and 1550nm
● Transmitter section Selects 1310nm 、1490/1550nm FP/ DFB Laser
● Single +3.3V /+5V Power Supply
● Single mode single fiber package with optional SC/FC receptacle or SC connector pigtailed SMF
● Standard PECL data output with signal detect indication
● 1x9 package
Applications
Applied to optic fiber transmission systems, such as ATM, SDH and Ethernet with bit rate up to 155Mbps
Parameter
Condition
Min
Typ
Max
Wavelength （nm）
1310
1270
1310
1350
1550
1520
1550
1570
1490
1484.5
1490
1497.5
Power Supply （V）
Vcc
3.135
3.3
3.465
4.75
5
5.25
Signal Level
PECL
3.2-4.0
LVPECL
1.5-2.3
Output Spectral Width（nm）
FP-LD,RMS
4
DFB-LD,-20dB
1
Extinction Ratio (dB)
EX
10
Optical Isolation (dB)
35
Overload (dB)
BER=1x10－10
－3
LOS（dBm）
Optical Deassert/assert
－5/－1
Current of transmitter sectio（mA）
Vcc=5V
70
Vcc=3.3V
70
Current of receiver section（mA）
Vcc=5V
75
Vcc=3.3V
75
Specifications
Rate, Power, Sensitivity and Transmission distance
Rate
LD and Wavelength
（nm）
Average output optical
power
（dBm）
Sensitivity（dBm）
Transmission distance
155Mb/s
FP 1310
－12
≤-35
20km
155Mb/s
FP 1550
－12
155Mb/s
FP 1310
－10
≤-35
40km
155Mb/s
DFP 1550
－10
155M b/s
FP 1310
－6
≤-35
60km
155Mb/s
DFP 1550
－10
155M b/s
DFP 1490
－8
≤-35
80km
155Mb/s
DFP 1550
－8
155M b/s
DFP 1490
－5
≤-35
100km
155Mb/s
DFP 1550
－5
155M b/s
DFP 1490
－0
≤-35
120km
155Mb/s
DFP 1550
－0
Absolute Maximum Ratings
Operating temperature（℃）
－20-＋70
－40-＋85
Lead soldering temperature（℃）
260
Storage temperature（℃）
－40-＋85
Soldering duration（Sec）
10
Pin Connections
Pin
Name
Level
Descriptions
1
GNDR
Receiver section grounded
2
RD
PECL/LVPECL
Date output of receiver section
3
NRD
PECL/LVPECL
Reverse date output of receiver section
4
SD
PECL/LVPECL
Optical alarm of receiver section, low level when no light
5
Vcc
Positive power of receiver section, normally +5V or 3.3V
6
Vcc
Positive power of transmitter section, normally +5V or 3.3V
7
NTD
PECL/LVPECL
Reverse Date input of transmitter section
8
TD
PECL/LVPECL
Date input of transmitter section
9
GNDT
Transmitter section grounded
Order Information
Descriptions
5V, 155Mb/s, PECL, SC/FC receptacle or SC connector pigtailed single mode single fiber bi-directional transceiver，transmitter wavelength 1310nm
5V, 155Mb/s, PECL, SC/FC receptacle or SC connector pigtailed single mode single fiber bi-directional transceiver，transmitter wavelength 1550nm
5V, 155Mb/s, PECL, SC/FC receptacle or SC connector pigtailed single mode single fiber bi-directional transceiver，transmitter wavelength 1490nm
3.3V,155Mb/s,PECL SC/FC receptacle or SC connector pigtailed single mode single fiber bi-directional transceiver，transmitter wavelength 1310nm
3.3V 155Mb/s PECL SC/FC receptacle or SC connector pigtailed single mode single fiber bi-directional transceiver，transmitter wavelength 1550nm
3.3V 155Mb/s PECL SC/FC receptacle or SC connector pigtailed single mode single fiber bi-directional transceiver，transmitter wavelength 1490nm
