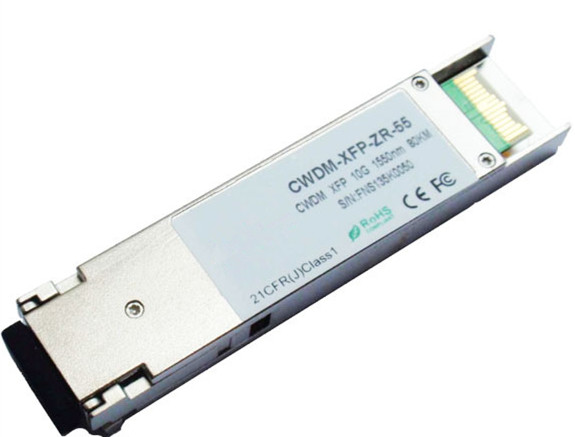

10G CWDM XFP 1470nm-1610nm 80km DOM Fiber optic Transceiver Features
Wavelength selectable to ITU-T standards covering CWDM grid wavelengths
XFP MSA Compliant
data rate from 9.95 Gbps to 11.3Gbps
No Reference Clock required
Cold EML transmitter and APD receiver
1470nm-1570nm link length up to 80km (1600ps/nm)
1590nm-1610nm link length up to 70km (1400ps/nm)
Low Power Dissipation 3.5W Maximum
Operating Case Temperature 0°C to 70°C(Standard), -40°C to 85°C (Industrial)
Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
RoHS compliant and lead free
ApplicationsSONET OC-192&SDH STM 64
10G Ethernet
80 km 10G Fiber Channel
CWDM Networks
Descriptionsfiberoptic 80km CWDM XFP Transceiver exhibits excellent wavelength stability, cost effective module. It is designed for 10G CWDM SDH, 10GBASE-ZR/EW and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. sfiberoptic 80km CWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Transmitter Specifications C Optical
